Plywood forklift
Plywood forklifts come in both fuel-powered and electric models, each suitable for different scenarios:

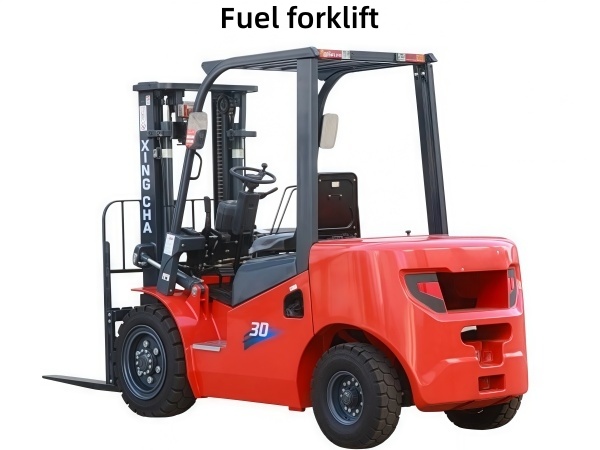

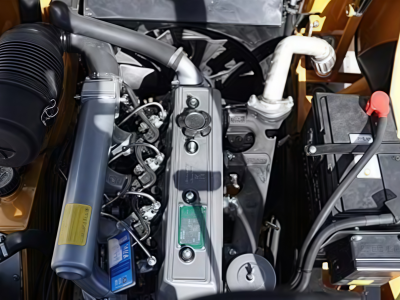

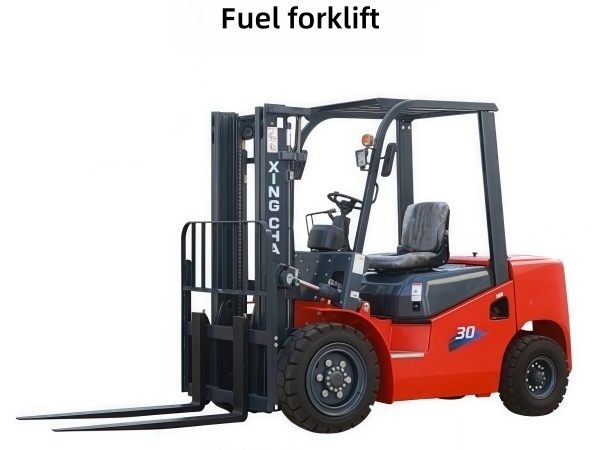

Fuel-powered models use diesel/gasoline engines, offering powerful power and long-range range, making them suitable for outdoor long-distance transport and high-intensity operations, but they are noisy and emit relatively high emissions.

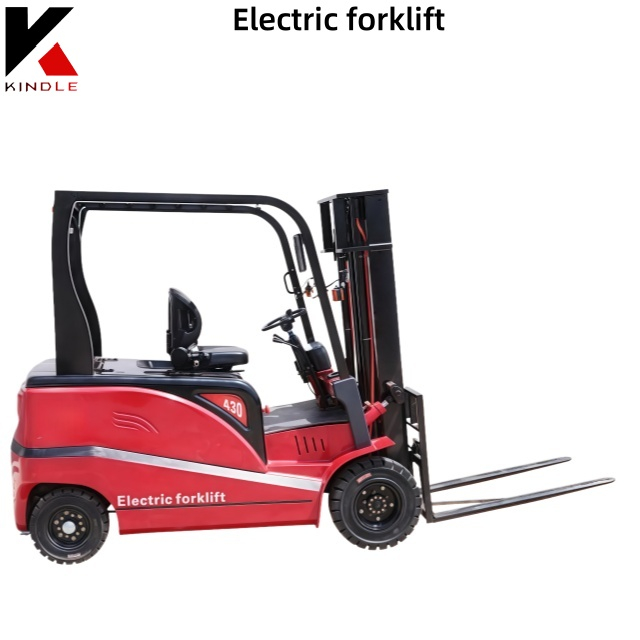

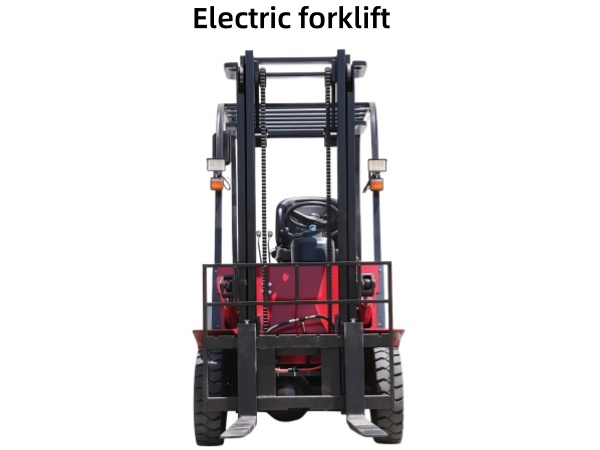

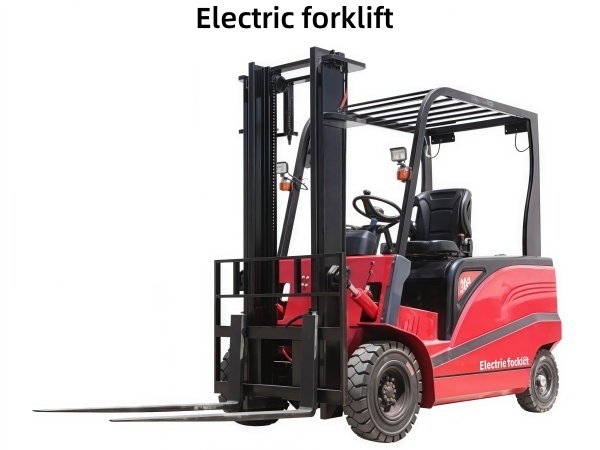

Electric models are battery-powered, offering zero emissions and low noise levels, making them suitable for indoor and environmentally sensitive applications. They also have low maintenance costs, but require regular charging and have a higher initial purchase price.
Both models are compatible with specialized plywood clamps, effectively improving handling efficiency and cargo security.
Machine parameter
| Forklift Series Parameters | ||||
| Model | CPC25 | CPC30 | CPC35 | |
| Power | Diesel | Diesel | Diesel | |
| Rated lifting load | kg | 2500 | 3000 | 3500 |
| Load center distance | mm | 500 | 500 | 500 |
| With fork | 3650 | 3930 | 3930 | |
| Without fork | 2580 | 2690 | 2690 | |
| Width | 1170 | 1610 | 1610 | |
| Height when the mast not raised | 2070 | 2130 | 2130 | |
| Overhead guard height | 2070 | 2100 | 2100 | |
| Wheelbase | 1600 | 1700 | 1700 | |
| Front overhang | 477 | 479 | 479 | |
| Rear overhang | 494 | 520 | 520 | |
| No-load maximum lifting speed | mm/s | 530 | 505 | 505 |
| Full-load maximum lifting speed | 500 | 485 | 485 | |
| No-load maximum working speed | Km/h | 19 | 20 | 20 |
| Full-load maximum working speed | 17 | 18 | 18 | |
| Full-load maximum gradeability | ％ | 20 | 20 | 20 |
1. Efficient and Damage-Free Handling
Equipped with pressure-adaptive clamping arms and soft pads, it precisely grips plywood of varying specifications, preventing surface scratches and edge damage, significantly reducing material loss.
2. Flexible Space Adaptability
The compact design combined with high lifting capacity enables vertical stacking and horizontal steering in narrow warehouse aisles, optimizing space utilization and reducing transfer steps.
3. Optimized Human-Robot Collaboration
The integrated intelligent hydraulic system and operator-assistance features (such as self-angle correction and load sensing) reduce operator workload while improving handling accuracy and operational safety.
Spindleless peeler
Card peeling machine
Veneer dryer
Hot press
Cold press
Plywood trimming saw
Automatic putty line
Glue spreader
Company Profile

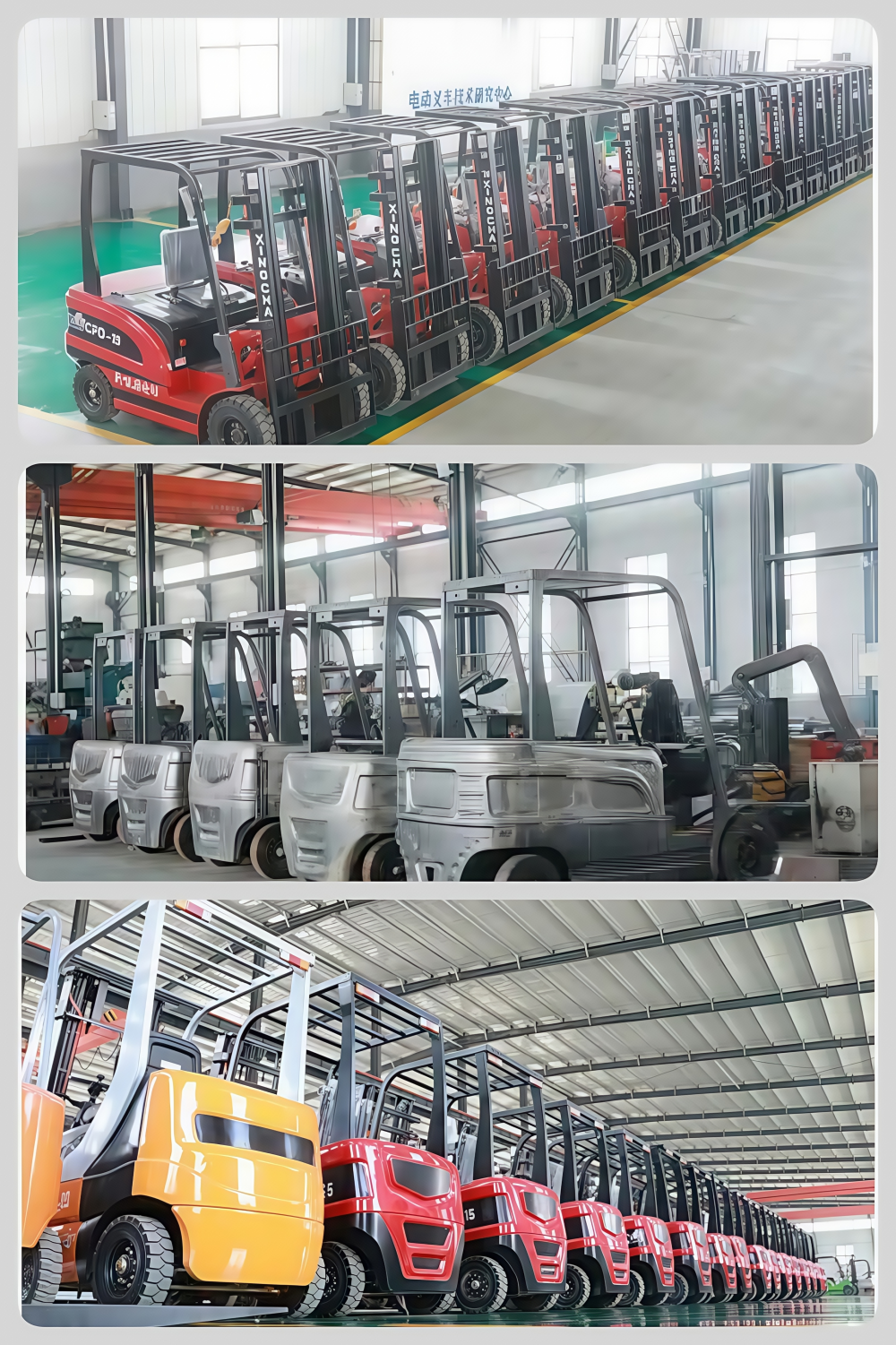

Shandong kindle Machinery manufacture limited company located in Linyi national Economic and Technological Development Zone, it was founded in 1998 which specialized in research and development of veneer peeling machine for 26 years. It have obtained more than 60 national patents , it covers more than 30000 area and have 15 R&D technician and 30 professional engineer for installation and machine maintaining.
FAQ:
Q1: Are you machine manufacturer or a trading company?
A1: We are a factory which is special for producing veneer peeling machine and plywood machine,Jinduo company own 2 workshops and 1 trading company.
Q2: What is the delivery time?
A2: In generally speaking , the complete veneer product line need about 30 days to manufacture after getting deposit.
Q3: What is the maintenance period and what kind of after sale service can you supply?
A3: The machinery part maintenance will be sustained in one year after installation and we have abroad warehouse and office for spare part in brazil and Russia, our engineer will arrive your factory to maintain the machine at first time if have problem.
Q4: What is the payment term?
A4: We can accept TT with 30% deposit and 70% balance against loading bill or 100% irrevocable L/C at sight.
Q5: Can we visit your factory?
A6: Jinduo company is next to linyi airport, we can pick you up from airport to our factory at any time, welcome to visit us.
