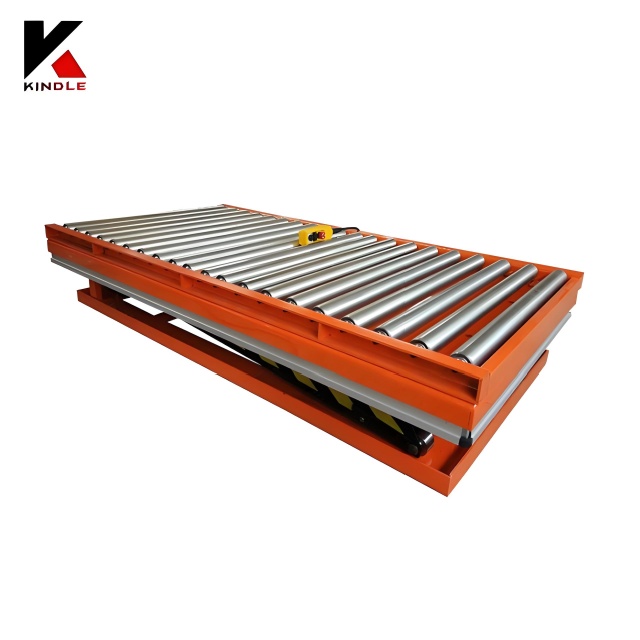

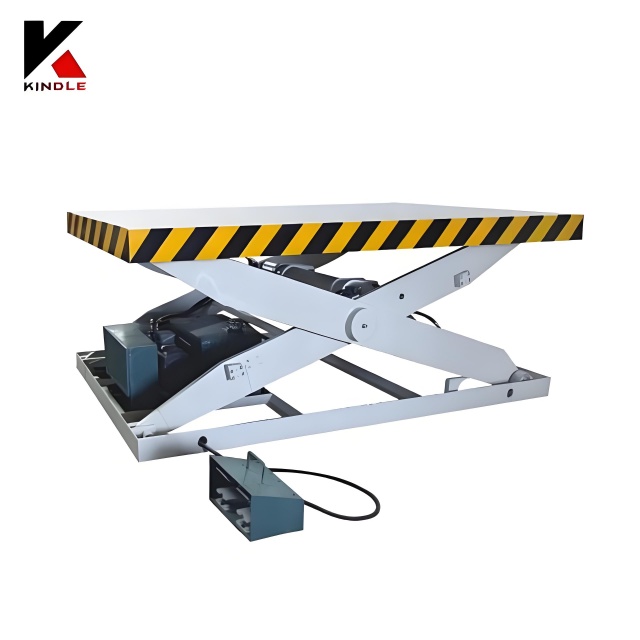

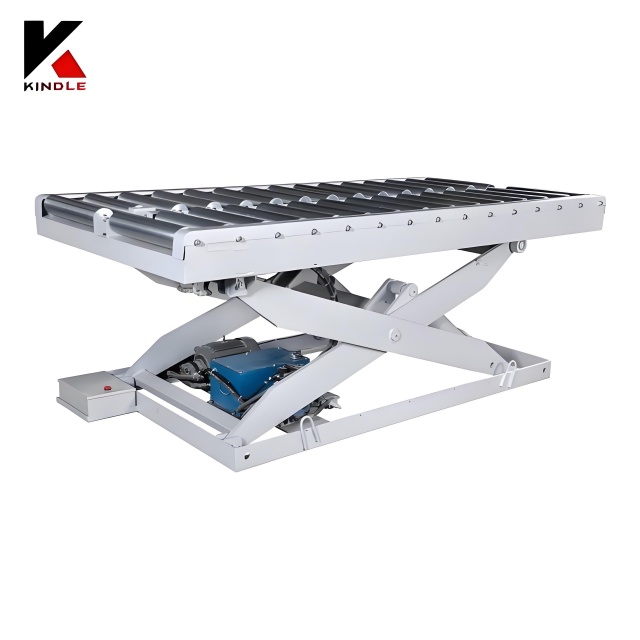

SCISSOR LIFT TABLE
This woodworking lifting table is a professional and practical auxiliary equipment for woodworking processing, featuring stable lifting, strong load-bearing capacity, and easy operation. It adopts a high-strength structural design and a reliable lifting system, which can realize smooth and precise height adjustment to meet different processing height requirements of panels, boards and workpieces. The table surface is flat and firm, with good anti-skid performance, ensuring safe and stable placement of materials; the overall structure is compact, easy to install and move, suitable for woodworking factories, furniture production, panel processing and other working scenarios, effectively improving work efficiency, reducing labor intensity, and providing stable and reliable support for various woodworking cutting, polishing, assembly and other operations.
Machine parameter
1. Surface treatment, shot blasting and stoving varnish with anti-corrosion function.
2. High quality pump station makes scissor lift table lifts and fall very stable.
3. Anti-pinch scissor design; main pin-roll place adopts self-lubricating design which prolong life span.
4. Removable lifting eye to help lift the table and install.
5. Heavy duty cylinders with drainage system and check valve to stop the lift table dropping in case of hose burst.
6. Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
7. Equipped with aluminum safety sensor under the platform for anti-pinch while dropping.
Oil Cylinder
Leak-proof oil-sealed oil cylinder, with stronger load-bearing capacity and stable performance. Fully enclosed oil cylinder, equipped with overload protection device, can effectively prevent overloading, good sealing performance and easy maintenance.
Powerful Motor
Power is transmitted through hydraulic oil, with greater stability and load capacity; the hydraulic pump station has reverse cut-off to prevent reverse flow of oil flow and emergency descent of the platform.
Controller
The button box is a physical button, which is easier to operate; the control line is 24V low voltage and safer, the connection method is plug-in, and the whole is assembled before delivery(Under container loading conditions); the controller can control the floor door interlocking, warning light alarm, adjustment and other functions.
Lifting Cylinder
Customized cylinder, each cylinder has 3 sets of imported seals, and has been tested; lifting speed is faster and cargo capacity is larger.
Scissor Support Rod
high-strength steel is used, and composite sleeves are added to the support rod sleeve to increase stability and reduce friction. The scissor fork is made of high-quality steel. It refuses to cut corners and cut materials to ensure the firmness of the product.
Platform Table Size
All the running section of the wood chipper is controlled by one combined control panel. It is equipped with infeed, outfeed, feed reverse, oil pump and emergency stop control buttons. All the control panel have motor protection function. For security, there is remote controlling for choice. It is a effective solution to protect the wood chipper operators.
Our veneer dryer machine and plywood machine are exported to many countries like Malaysia,Indonesia, Russia, Turkey ,Brazil, Argentina, Paraguay and so on. If there have any machines you are interested in ,please click the picture to check the details.
Spindleless peeler
Spindle peeler
Veneer composer
Hot press
Glue spreader
plywood trimming saw
Automatic putty line
Calibrating machine
Shandong kindle Machinery manufacture limited company
located in Linyi national Economic and Technological Deve-
lopment Zone, it was founded in 1998 which specialized in
research and development of veneer peeling machine for 26
years. It have obtained more than 60 national patents , it covers more than 30000 area and have 15 R&D technician and 30 professional engineer for installation and machine maintaining.
We are committed to provide complete solutions for veneer
peeling line, plywood making plant,LVL,block board, PB,OSB production Line etc. Main equipment include: Log cutting saw, log debarker , spindle peeling lathe and spindleless wood veneer peeling machine,veneer dryer, glue spreader,pre-press, hot press, veneer commposer,plywood saw, sanding machine, boiler, and related plant accessories and materials, etc.
