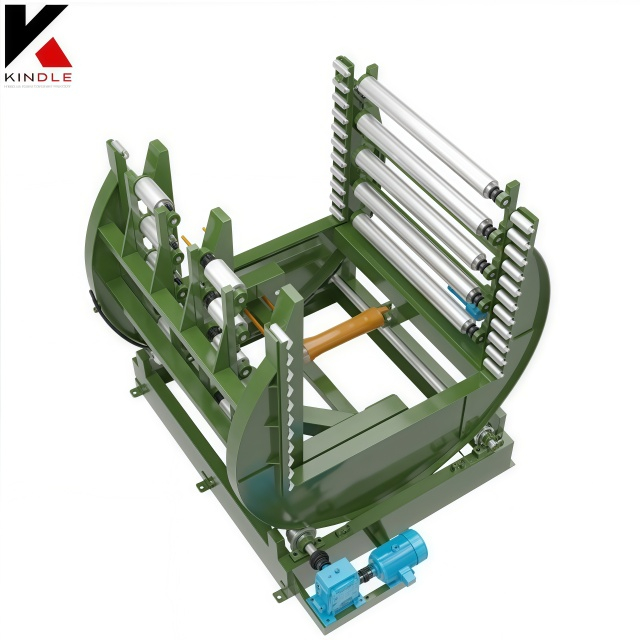

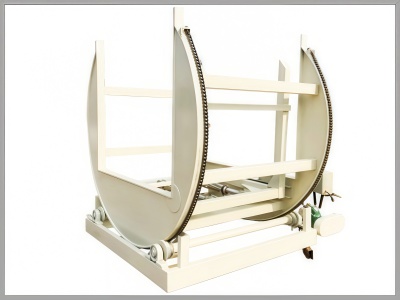

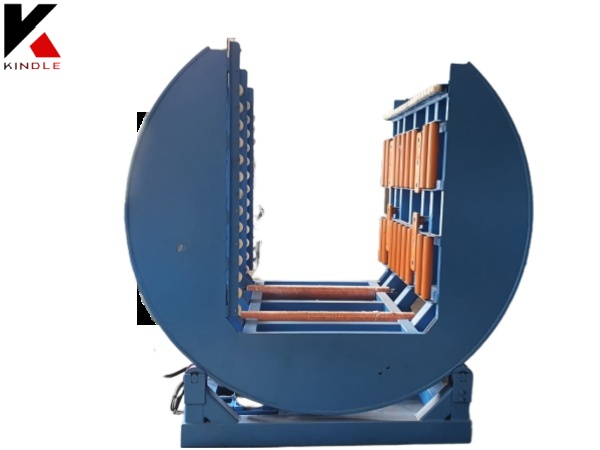

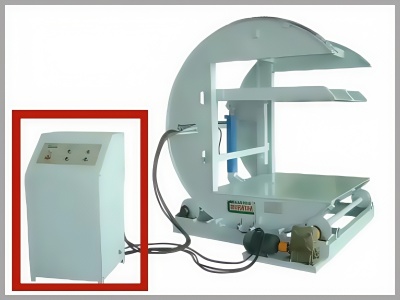

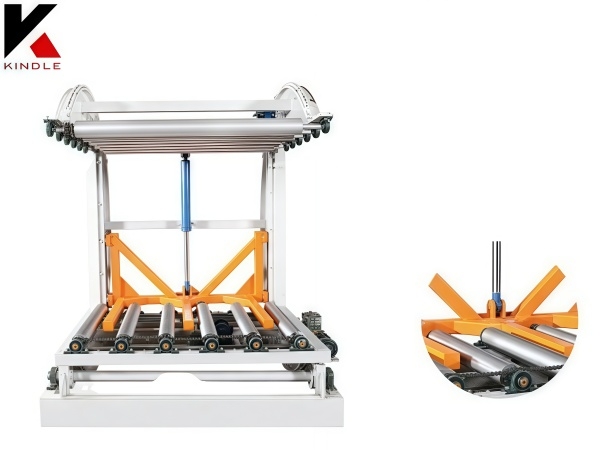

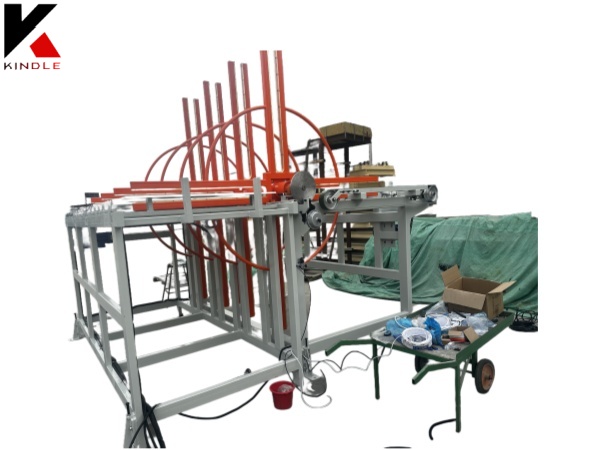

Plywood panel turning machine

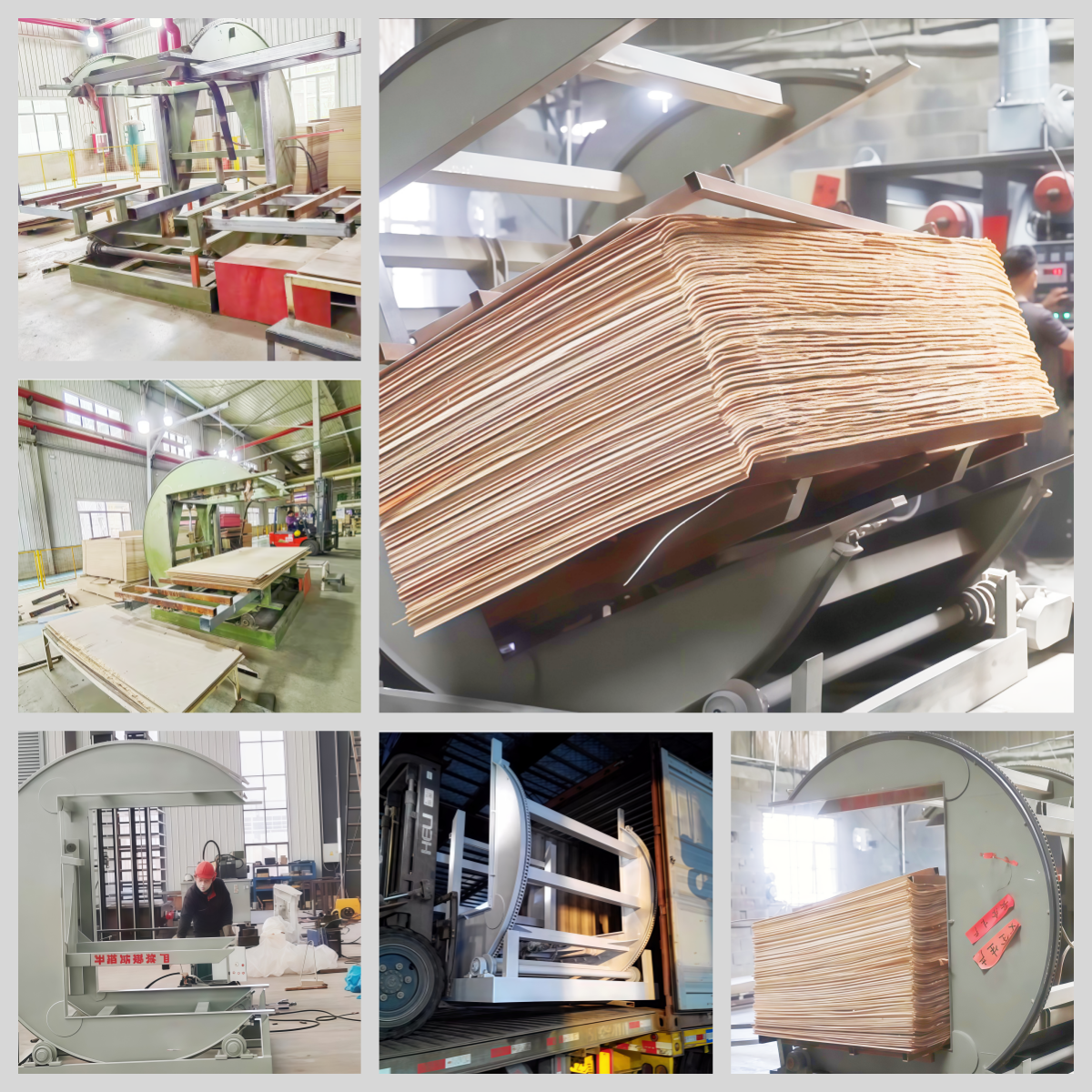

The plywood flipper is a key piece of equipment after the hot-pressing process, primarily used to automatically flip, transfer, and stack hot-pressed plywood. Its purpose is to replace manual handling with mechanized operation, eliminating the risk of burns from high-temperature plywood. Smooth flipping minimizes deformation and surface scratches, ensuring the quality of the finished plywood. Benefits include significantly improving production efficiency, reducing labor intensity, improving operational safety, and enabling continuous automated operation of the production line.
Machine parameter
| Woodworking Turn Over Machine | ||||
| Model | YQ-PF48 | |||
| Working size | 1800*1500mm | |||
| Loading capacity | 3000kgs | |||

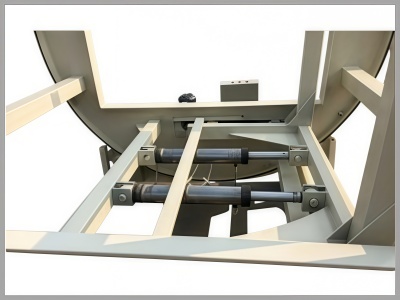

| Stroke of cylinder | 400mm | |||
| Max opening | 1600mm | |||
| Min opening | 1200mm | |||
| Rotation angle | 0-180° | |||
| Total Power | 6.2kw, 480V, 60HZ, 3Phase | |||
| hydraulic motor power | 2.2kw | |||
| Turnover power | 4 kw | |||
| Weight | 1800kgs | |||
| Overall dimension | 2000*1800*2220mm | |||
1. High Precision: Capable of producing gears of the highest precision, significantly improving transmission smoothness.
2. High Surface Quality: Grinding produces an exceptionally smooth surface finish, reducing wear and operating noise.
3. High Hardness Processing: Capable of finishing high-hardness gears after quenching or other heat treatments, and correcting deformation.
Spindleless peeler
Card peeling machine
Veneer dryer
Hot press
Cold press
Plywood trimming saw
Automatic putty line
Glue spreader
Company Profile
Shandong kindle Machinery manufacture limited company located in Linyi national Economic and Technological Development Zone, it was founded in 1998 which specialized in research and development of veneer peeling machine for 26 years. It have obtained more than 60 national patents , it covers more than 30000 area and have 15 R&D technician and 30 professional engineer for installation and machine maintaining.
FAQ:
Q1: Are you machine manufacturer or a trading company?
A1: We are a factory which is special for producing veneer peeling machine and plywood machine,Jinduo company own 2 workshops and 1 trading company.
Q2: What is the delivery time?
A2: In generally speaking , the complete veneer product line need about 30 days to manufacture after getting deposit.
Q3: What is the maintenance period and what kind of after sale service can you supply?
A3: The machinery part maintenance will be sustained in one year after installation and we have abroad warehouse and office for spare part in brazil and Russia, our engineer will arrive your factory to maintain the machine at first time if have problem.
Q4: What is the payment term?
A4: We can accept TT with 30% deposit and 70% balance against loading bill or 100% irrevocable L/C at sight.
Q5: Can we visit your factory?
A6: Jinduo company is next to linyi airport, we can pick you up from airport to our factory at any time, welcome to visit us.
