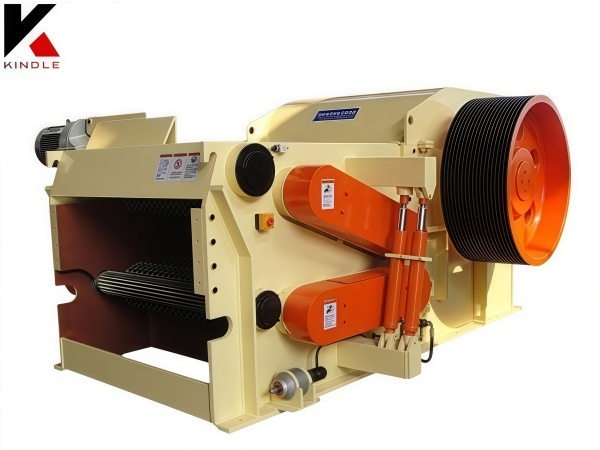

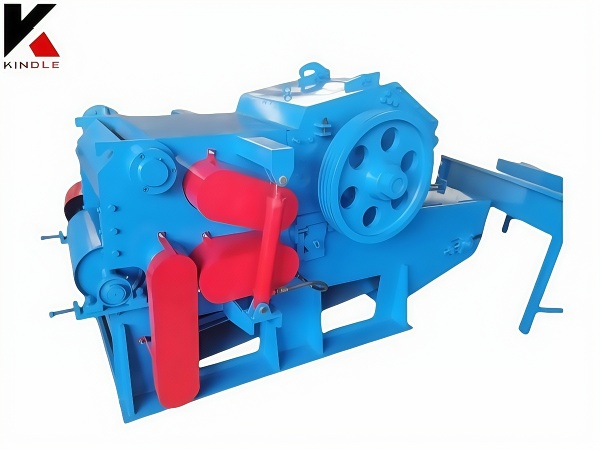

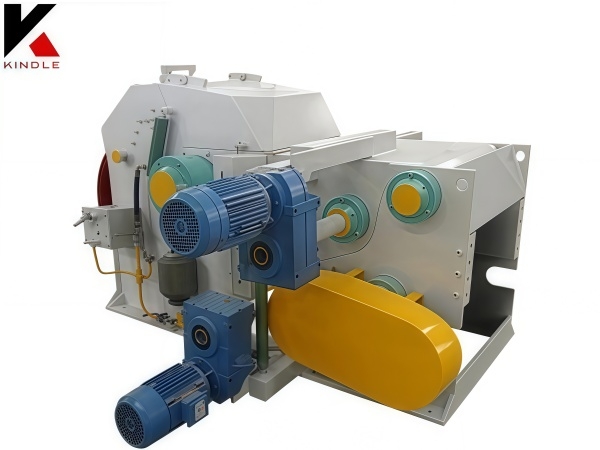

Plywood chipper
The plywood chipper is designed specifically for processing scraps from plywood production. It efficiently crushes waste veneer, veneer, and other raw materials into uniform chips sized 15-30mm, achieving 100% waste recycling. It utilizes a wear-resistant alloy blade roller and an intelligent anti-jamming system, with a processing capacity of 3-5 tons/hour. Compared to traditional crushing equipment, it consumes 35% less energy. Its integrated dust removal interface ensures clean production, significantly improving the plywood mill's waste processing efficiency and economic benefits.

Machine parameter
| Specifications | BX215 | |||
| 160 * 400 mmImport material size (mm) | 800mm | |||
| Number of flying knives (pc) | 2 | |||
| revolving speed of knife roll (rpm) | 592rpm | |||
| Maximum diameter of raw material (mm) | 160 mm | |||
| Feed speed | 38 m/min | |||
| Processing raw material max diameter | 160mm | |||
| Wood Chips length | 30mm | |||
| Main motor power | 132 kw | |||
| Shape size (mm) | 1470 * 1550 * 970 | |||
| Weight (kg) | 2990 | |||



1. Efficient Crushing: Utilizing a high-strength alloy blade roller and optimized cutting design, it quickly shreds plywood scraps, waste veneer, and other materials into uniform chips, delivering high processing capacity and significantly improving waste handling efficiency.
2. Energy-Saving and Durable: Equipped with an intelligent load adjustment system, it automatically adjusts power output based on material hardness, resulting in lower energy consumption than traditional equipment. Blades made of a special wear-resistant material offer a long service life and reduced maintenance costs.
3. Environmentally Friendly and Safe: An integrated enclosed dust removal structure and anti-rebound feed port effectively suppress dust and debris splashing, resulting in low operating noise and meeting green production requirements.

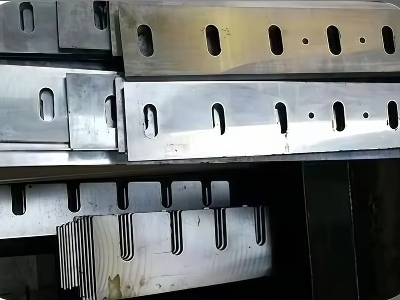

Custom blades
The plywood chipper is equipped with customized heat-treated blades, which are forged from special high-carbon chromium alloy steel and undergo vacuum quenching + cryogenic treatment processes. They have high hardness and wear resistance that is 2 times higher than that of ordinary blades.

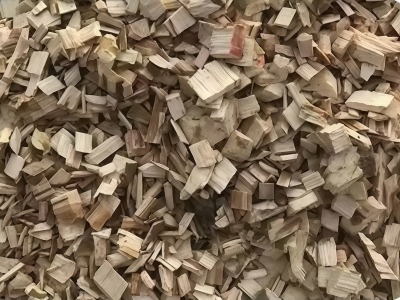

Finished chips
1) Uniform Size: Controlled by an adjustable screen, over 90% of the chips are regular flakes with consistent thickness, allowing them to be used directly as particleboard raw material or biomass fuel without secondary sorting.
2) Fiber Integrity: Utilizing fiber-aligned cutting technology, the wood chip surface is smooth and burr-free, with over 80% fiber structure retention, significantly improving bonding strength during recycling.

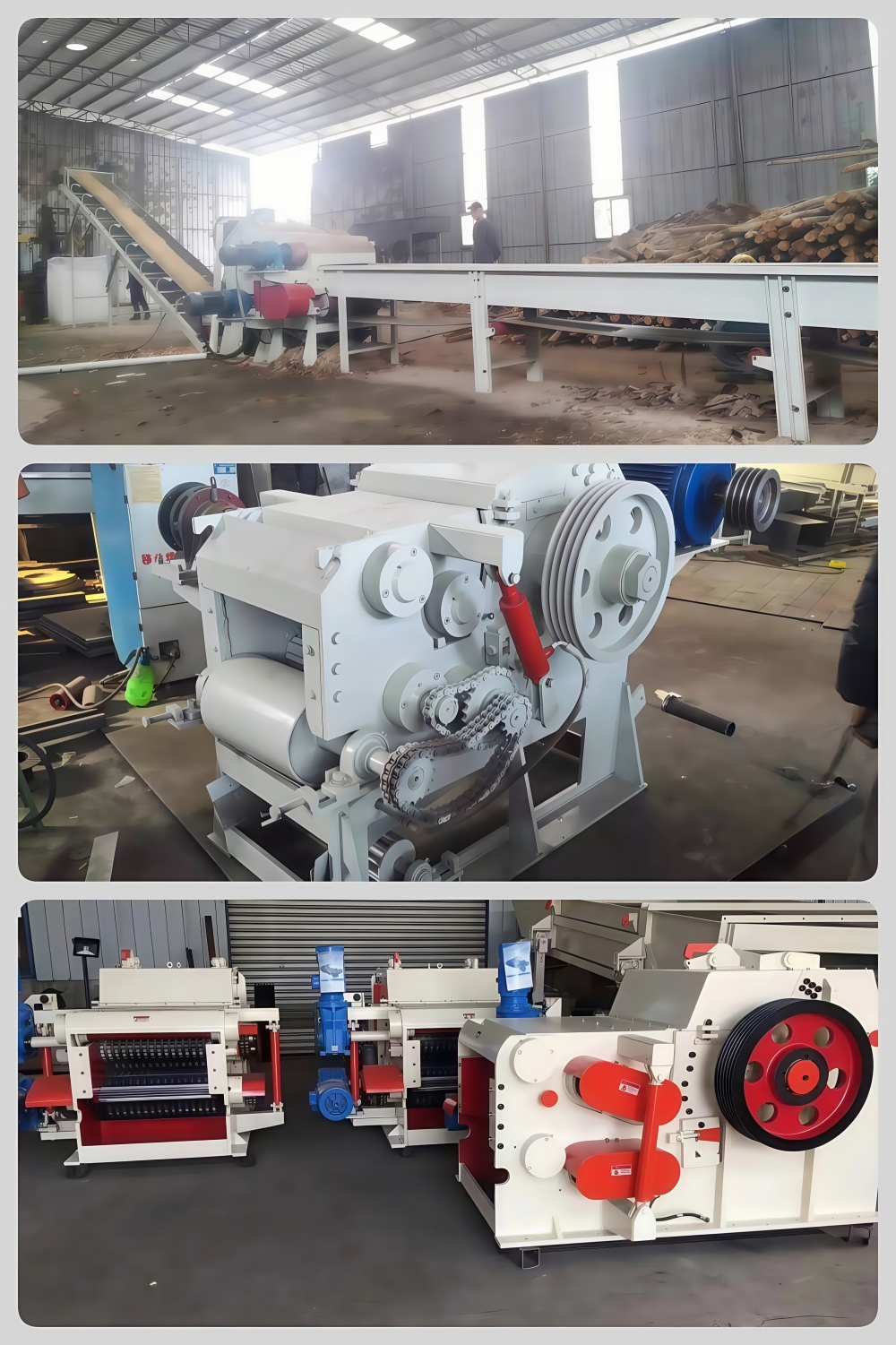

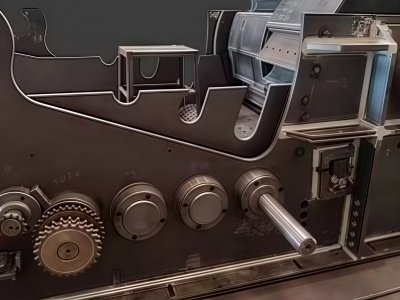

Overall sturdy and durable
The plywood chipper features a heavy-duty, integrated steel structure, crafted using a cutting and forming process, ensuring exceptional stability under high loads. Its core crushing chamber is welded from thickened steel plates, coupled with a high-precision dynamically balanced blade shaft and reinforced bearing housing, enabling it to continuously crush hardwoods for extended periods without deformation.

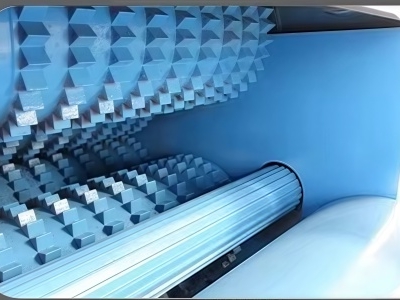

Feeding unit
The feed unit is equipped with thickened manganese steel rollers and self-cleaning grooves, effectively feeding various types of plywood scraps, bent veneer, and other irregular waste materials. A bidirectional hydraulic pressure system adaptively adjusts the gap between the rollers, and a serrated anti-rebound baffle ensures continuous and smooth wood feeding.


Our sanding machine and plywood machine are exported to many countries like Malaysia,Indonesia, Russia, Turkey ,Brazil, Argentina, Paraguay and so on.

Spindleless peeler
Card peeling machine
Veneer dryer
Hot press
Cold press
Plywood trimming saw
Automatic putty line
Glue spreader

Company Profile


Shandong kindle Machinery manufacture limited company located in Linyi national Economic and Technological Development Zone, it was founded in 1998 which specialized in research and development of veneer peeling machine for 26 years. It have obtained more than 60 national patents , it covers more than 30000 area and have 15 R&D technician and 30 professional engineer for installation and machine maintaining.

We are committed to provide complete solutions for veneer
peeling line, plywood making plant,LVL,block board, PB,OSB production Line etc. Main equipment include: Log cutting saw, log debarker , spindle peeling lathe and spindleless wood veneer peeling machine,veneer dryer, glue spreader,pre-press, hot press, veneer commposer,plywood saw, sanding machine, boiler, and related plant accessories and materials, etc.










FAQ:
Q1: Are you machine manufacturer or a trading company?
A1: We are a factory which is special for producing veneer peeling machine and plywood machine,Jinduo company own 2 workshops and 1 trading company.
Q2: What is the delivery time?
A2: In generally speaking , the complete veneer product line need about 30 days to manufacture after getting deposit.
Q3: What is the maintenance period and what kind of after sale service can you supply?
A3: The machinery part maintenance will be sustained in one year after installation and we have abroad warehouse and office for spare part in brazil and Russia, our engineer will arrive your factory to maintain the machine at first time if have problem.
Q4: What is the payment term?
A4: We can accept TT with 30% deposit and 70% balance against loading bill or 100% irrevocable L/C at sight.
Q5: Can we visit your factory?
A6: Jinduo company is next to linyi airport, we can pick you up from airport to our factory at any time, welcome to visit us.
