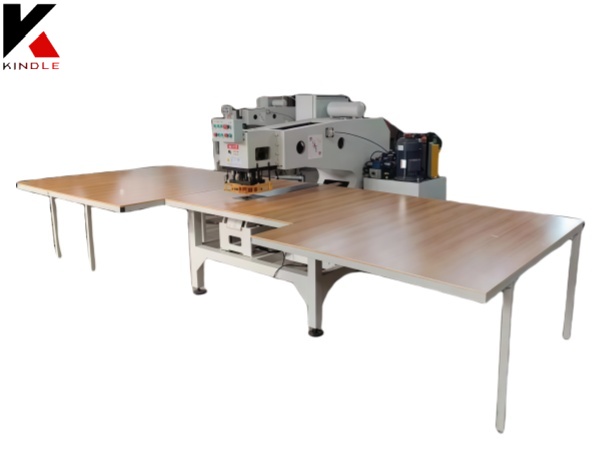

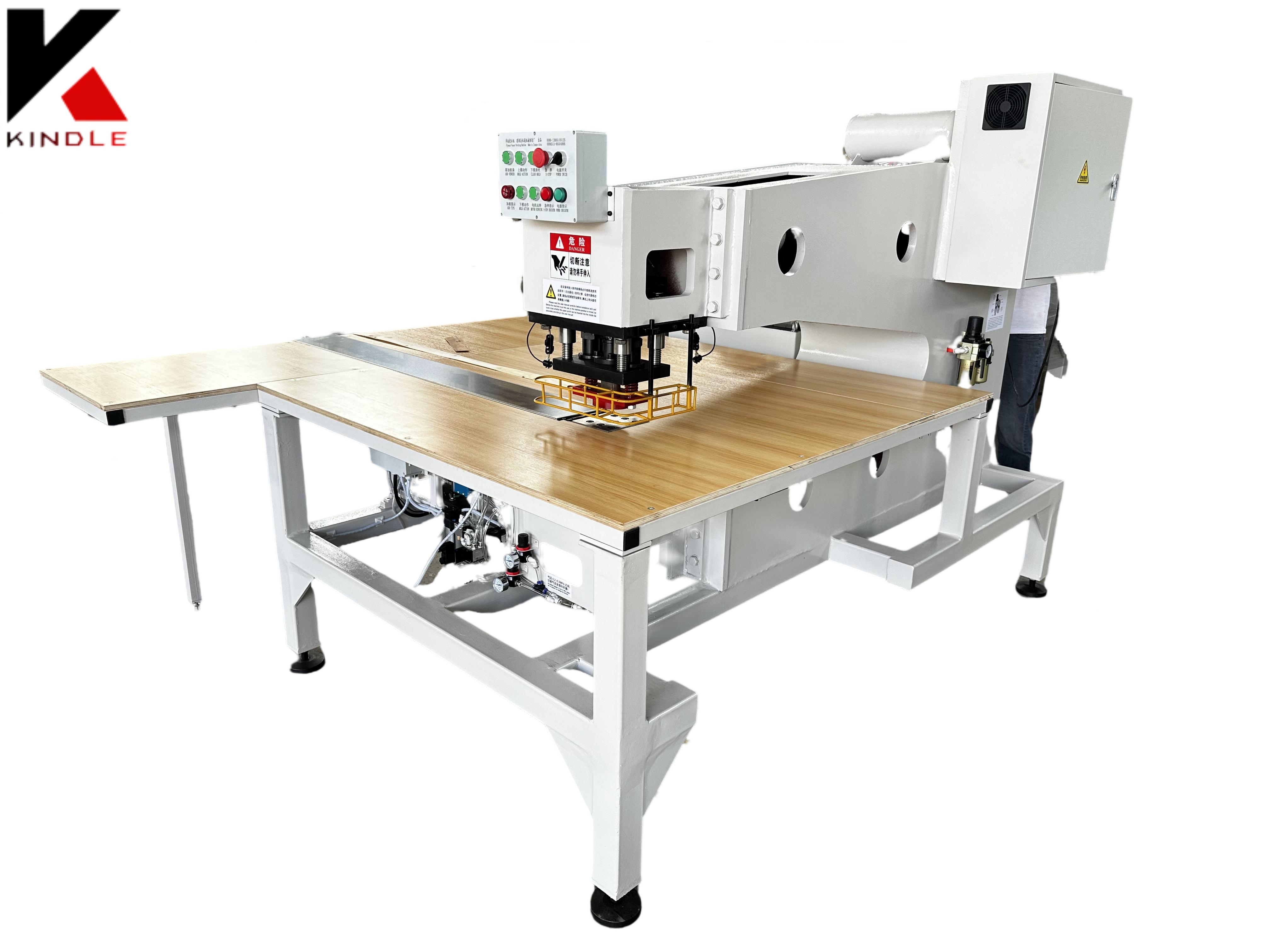

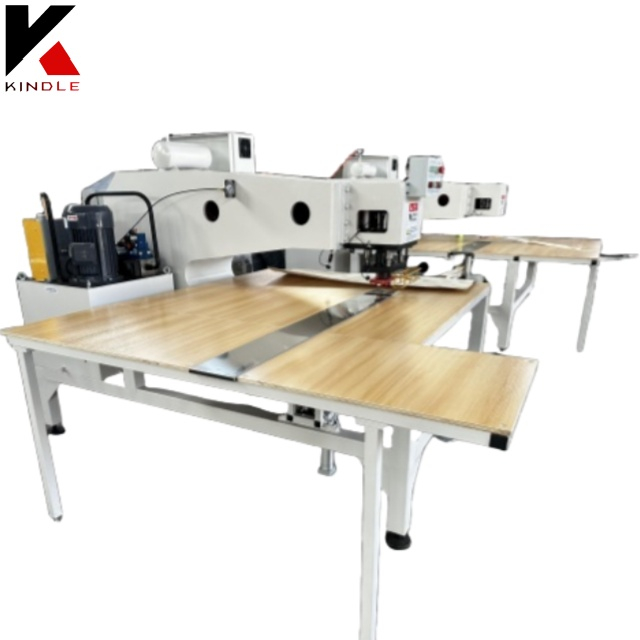

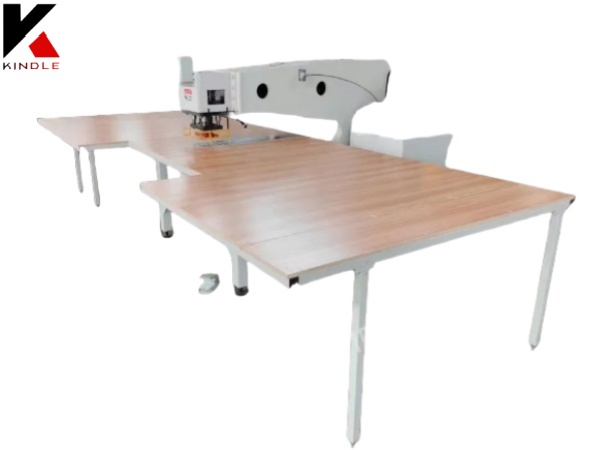

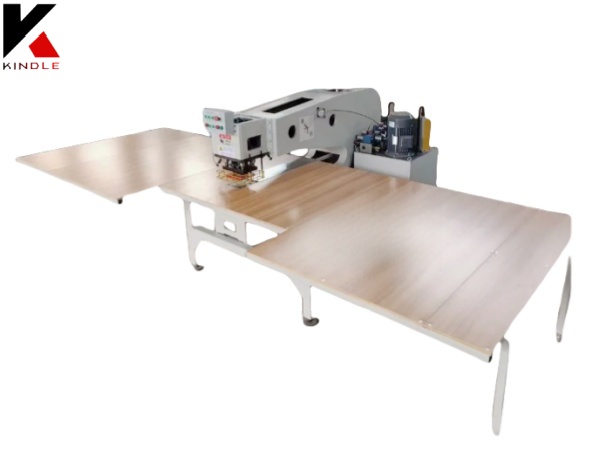

Fully Automatic Veneer Patching Machine
The fully automatic plywood patching machine uses AI visual scanning and a high-precision servo system to achieve precise positioning and automatic patching of ≤0.1mm. It can process 800-1200 defects per hour, and its stability is 90% higher than that of semi-automatic machines.

Machine parameter
| Model | Unit | HWB3848 | ||
| Mending speed | sec/time | 3-5 | ||
| Veneer Thickness | mm | 0.8-3.0 or 2.0-8.0mm optional | ||
| Diameter of cylinder | mm | 50 | ||
| N.W. | kg | 1500 | ||



1. Intelligent Automated Repair: AI vision accurately identifies defects and automates the entire process of cutting, gluing, and laminating, ensuring consistent repair quality.
2. Adaptive Process Control: The intelligent system adjusts repair parameters in real time to accommodate veneers of varying thicknesses and materials, ensuring a perfect fit between the repaired area and the original material.
3. Flexible and Versatile Expansion: The modular head design allows for quick replacement, easily handling defect repairs of various shapes and sizes to meet diverse production needs.

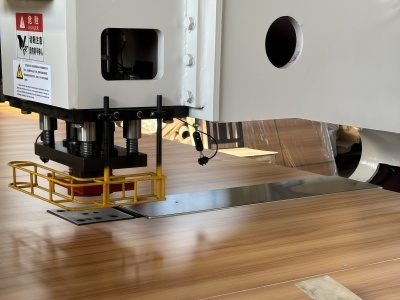

High rigidity head
The machine head's highly rigid structure ensures long-term stable operation, while its intelligent pressure regulation system automatically adapts to the needs of repairing boards of varying thicknesses. Equipped with quick-change modules, the machine head can flexibly handle defects of all sizes, from minute cracks to large defects.

High repair stability
The fully automatic plywood patching machine has significant advantages in terms of repair stability. It uses a closed-loop control system to monitor and automatically adjust the repair parameters in real time to ensure that each defect can achieve consistent repair quality.

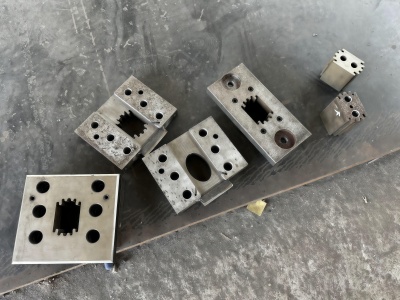

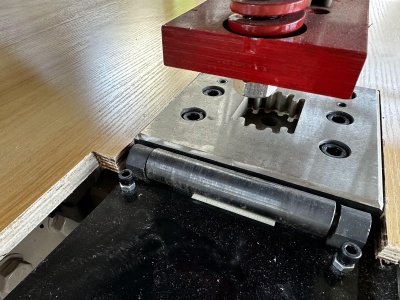

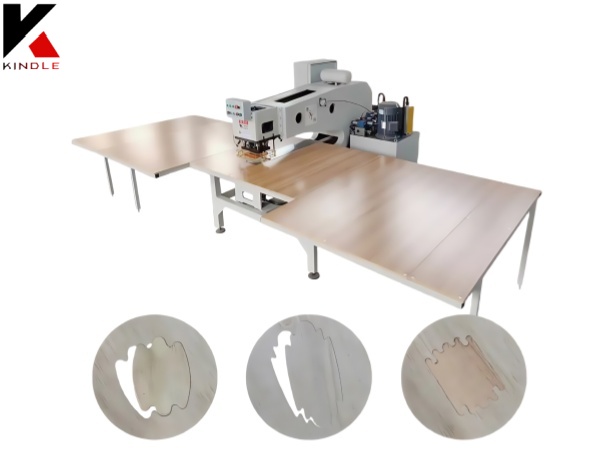

Interchangeable head system
The modular design of the interchangeable head system allows for quick adaptation to repairs of varying shapes and sizes. The machine is equipped with a variety of head modules, offering a comprehensive range of head types to address both standard geometric defects and complex curved cuts.

Feeding unit

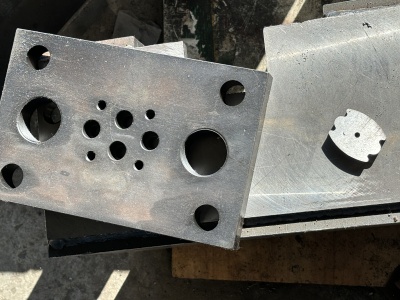

The machine head of the fully automatic plywood patching machine is constructed from a special alloy steel with excellent overall performance. This special steel is not only extremely hard, maintaining a sharp cutting edge for a long time, but also possesses excellent impact resistance.


Our fully-automatic veener patching machine and plywood machine are exported to many countries like Malaysia,Indonesia, Russia, Turkey ,Brazil, Argentina, Paraguay and so on.

Spindleless peeler
Card peeling machine
Veneer dryer
Hot press
Cold press
Plywood trimming saw
Automatic putty line
Glue spreader

Company Profile


Shandong kindle Machinery manufacture limited company located in Linyi national Economic and Technological Development Zone, it was founded in 1998 which specialized in research and development of veneer peeling machine for 26 years. It have obtained more than 60 national patents , it covers more than 30000 area and have 15 R&D technician and 30 professional engineer for installation and machine maintaining.

We are committed to provide complete solutions for veneer
peeling line, plywood making plant,LVL,block board, PB,OSB production Line etc. Main equipment include: Log cutting saw, log debarker , spindle peeling lathe and spindleless wood veneer peeling machine,veneer dryer, glue spreader,pre-press, hot press, veneer commposer,plywood saw, sanding machine, boiler, and related plant accessories and materials, etc.
