JDHG3000-4L
KINDLE

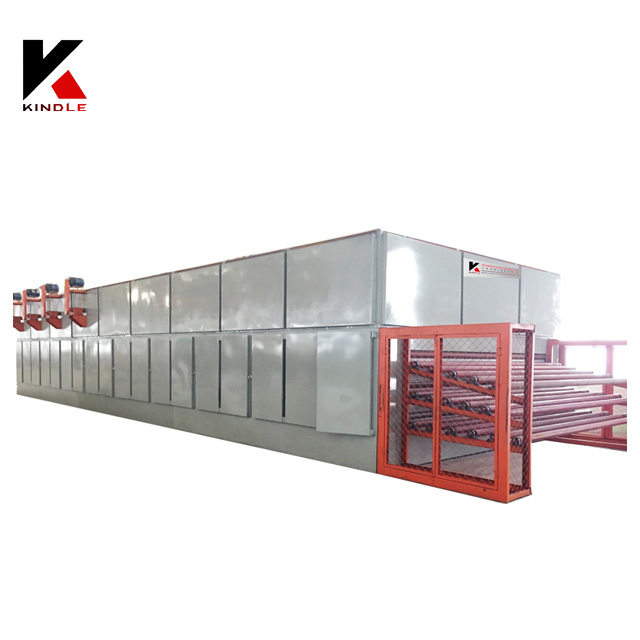

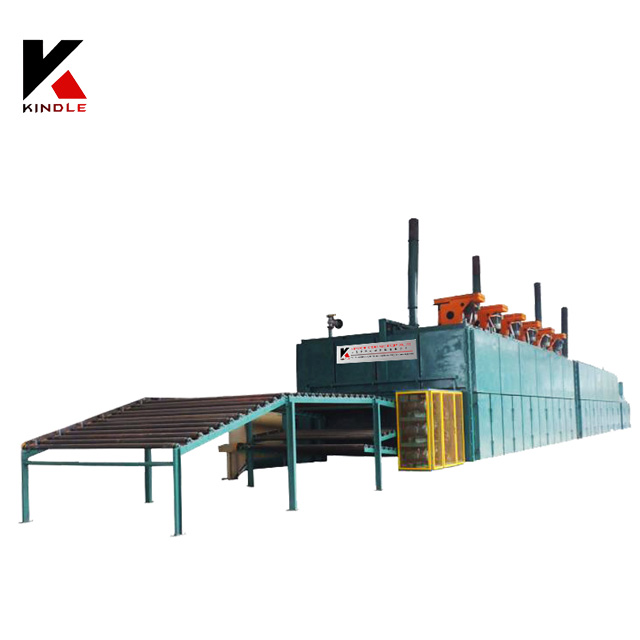

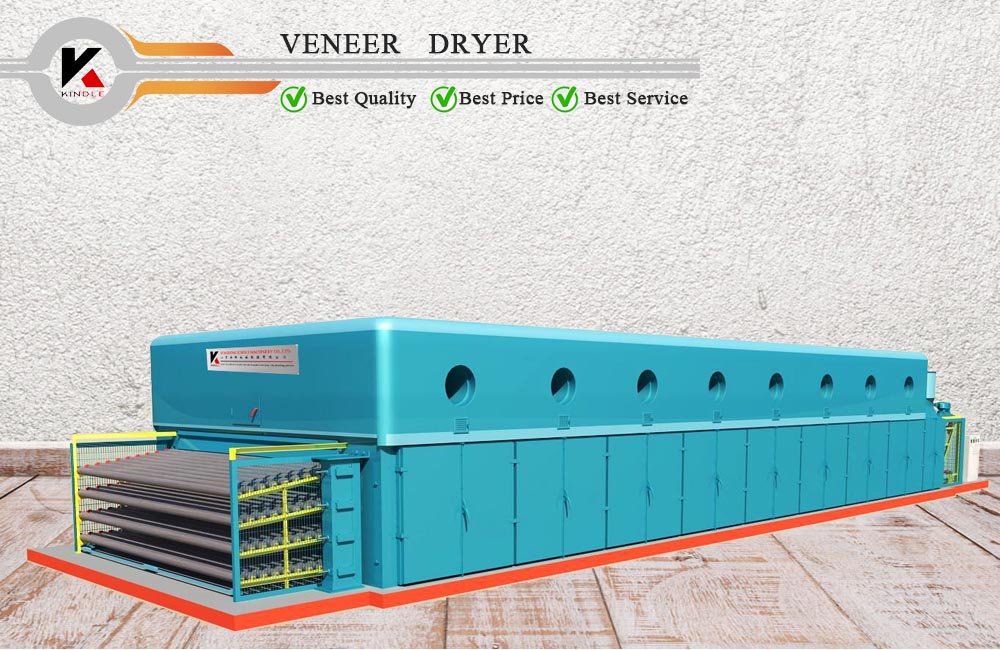

The veneer dryer is main machine for plywood production,it's used for fresh veneer drying.It includes mesh belt dryer,roller dryer and mesh & roller medley dryer,can be customized according to your requirements.
This veneer dryer industrial equipment helps you to efficiently process plywood veneer wood with the advantages of improved fan and thermal circulation system, fully automatic entry and exit plank device, widened working band, newly designed new modeling spray box, intelligent humidity control system and hot air leakage recovery device. it improves the product capacity of veneer drying uncommonly.
Machine parameter
| Model | JDHG320R-4L | JDHG470R-4L |
| Veneer thickness | 1.0-4.0mm | 1.0-4.0mm |
| Feeding width | 3200mm | 4700mm |
| Layer | 4 | 4 |
| Heating area length | 30m(15chamber * 2m) | 22m(11chamber * 2m) |
| Cooling area length | 4m | 4m |
| Initial moisture content | <70% | <70% |
| Final moisture content | <10% | <10% |
| product capacity | 5-6m³/h | 5-6m³/day |
| Input and output conveyor length | 5m / 6m | 5m / 6m |
| Total power | 211.5kw | 211.5kw |
| Heating motor power | 15sets * 11kw | 11sets× 15 kw |
| Cooling motor power | 4sets * 4kw | 4 sets* 4kw |
| Driving motor power | 4sets* 7.5kw | 4sets* 7.5kw |
| Moisture exhaust motor power | 2sets*0.25kw | 2sets*0.25kw |
| Heating consumption | 3500KW | 3500KW |
| Automatic feeding system | optional | optional |
| Temperature detector system | yes | yes |
| Moisture detector system | optional | optional |
| Weight | 150000kgs | 160000kgs |
| Overall size | 44m(L)*4.2m(W)*4.5m(H) | 36m(L)*5.8m(W)*4.5m(H) |
This veneer dryer gather the features from mesh belt dryer and roller dryer, so that it has both advantages of them.

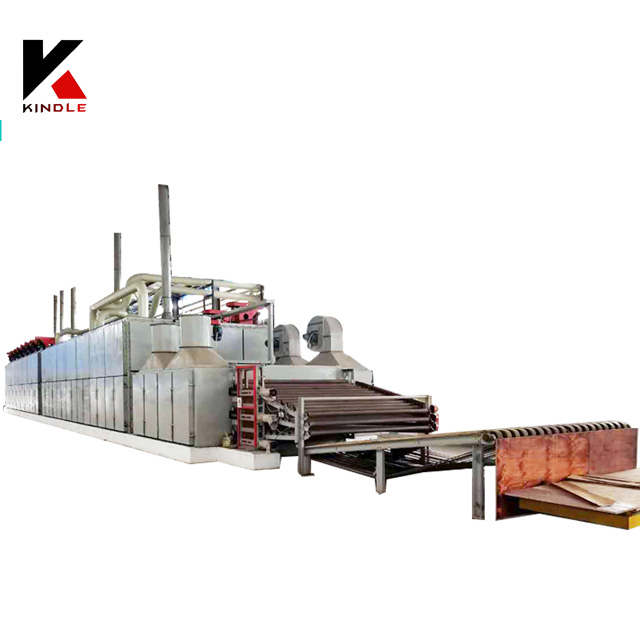

This drying machine is specially for the customer demanding large production capacity, so it has the particular function to be able to dry face veneer, back veneer, long middle-thickness veneer, middle-thickness veneer with various dimension, middle-thickness veneer with cut to length etc.
This machine adopts air flow circulation system of air pressure type and top centrifugal blower, they have features of high air pressure and large air volume. The radiator adopts the structure of steel & aluminum composite, and it has large heat radiation area and good heat radiation effect.
In this dryer, the air flow is circulated horizontally and sprayed vertically to dry the veneer, and the veneer is transported by couples of rollers and mesh belt..
