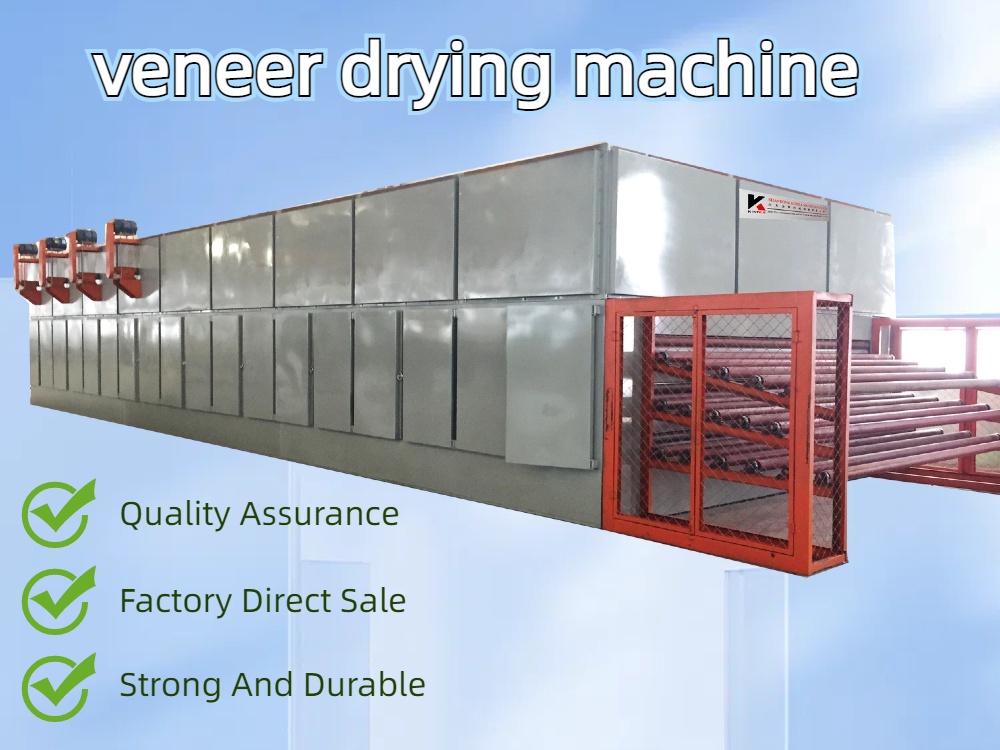

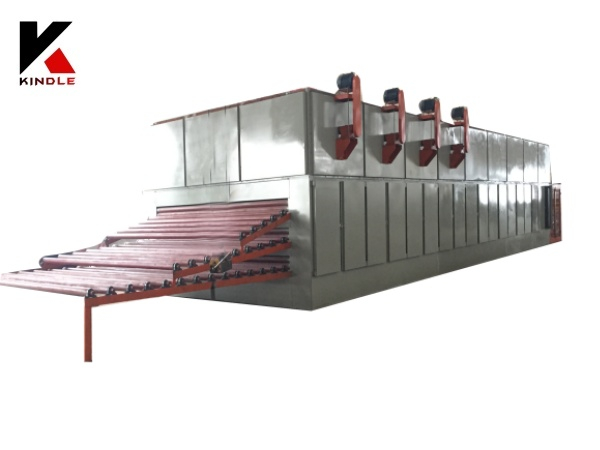

The veneers move through the drying machine in several layers along rollers, as the machine's name indicates. The target moisture level after drying is around 6-7% which is precisely the right moisture level for gluing veneer.
A sufficient drying temperature is 145-160ºC and the veneers pass through the machine in about six minutes. Drying conditions and the moisture of the veneers are monitored continuously to make sure that the drying quality remains even. Usually, the original moisture is 70-80%, after drying, the moisture is about 10%. The dryer machine-Roller dryer, can be different layers, length and width, so we usually offer and produce according to your production capacity required.
THE ROLLER OF DRYER
Not only the roller adopt High temperature resistant material, the gear is also processed by heating treatment, the bearing choose High temperature resistant model, all those parts promise the transfer system of dryer can work well in high temperature.
SOLID STRUCTURE
The dryer frame choose thicker and heavier steel from large company to ensure the structure can not be deformed in working. good structure also means good tightness,reduce the heating lost and increase the drying capacity, down the fuel cost.
HEATING FANS
Adopt high power heating centrifugal fans, this fan can supply stronger suction and blow it on the veneer surface, Most of the moisture in veneer is taken away by this heating wind, not the high temperature, so this roller drying machine capacity is much better than traditional model.
HEATING RADIATOR
The heating oil or steam will flow in the radiator and the heating fan absorb the hot air from the radiator, it's an important part to transform from hot oil to hot air, its efficiency also have a conspicuous influence to the veneer dryer capacity. Our radiator adopt special heating material to guarantee the heating power utilization ratio.
HIGH QUALITY MESH BELT
When drying face veneer which thickness is less than 1mm, this kind of mesh belt dryer will be better, can promise the veneer transfer smoothly, reduce the probability of broken, this mesh belt adopt stainless steel, easy to maintain if damaged.
AUTOMATIC FEEDING SYSTEM
This feeding system can load veneer automatically, don't need labor to feed the veneer, espcially for big size veneer, it's easy to damage in feeding by manual, generate a serious wasting, and more useful for the dryer that more than 2 layers, reduce more operators and increase the drying capacity.This is an optional device, can choose it according to customer demands.
Our veneer dryer machine and plywood machine are exported to many countries like Malaysia,Indonesia, Russia, Turkey ,Brazil, Argentina, Paraguay and so on.
Spindleless peeler
Veneer dryer
Veneer composer
Hot press
Glue spreader
plywood trimming saw
Automatic putty line
Calibrating machine
Shandong kindle Machinery manufacture limited company
located in Linyi national Economic and Technological Deve-
lopment Zone, it was founded in 1998 which specialized in
research and development of veneer peeling machine for 26
years. It have obtained more than 60 national patents , it covers more than 30000㎡ area and have 15 R&D technician and 30 professional engineer for installation and machine maintaining.
We are committed to provide complete solutions for veneer
peeling line, plywood making plant,LVL,block board, PB,OSB production Line etc. Main equipment include: Log cutting saw, log debarker , spindle peeling lathe and spindleless wood veneer peeling machine,veneer dryer, glue spreader,pre-press, hot press, veneer commposer,plywood saw, sanding machine, boiler, and related plant accessories and materials, etc.
FAQ:
Q1:Are you machine manufacturer or a trading company?
A1: we are a factory which is special for producing veneer peeling machine and plywood machine,Jinduo company own 2 workshops and 1 trading company
Q2:What is the delivery time?
A2:In generally speaking , the complete veneer product line need about 30 days to manufacture after getting deposit.
Q3: what is the maintenance period and what kind of after sale service can you supply?
A3: the machinery part maintenance will be sustained in one year after installation and we have abroad warehouse and office for spare part in brazil and Russia, our engineer will arrive your factory to maintain the machine at first time if have problem.
Q4: what is the payment term?
A4: we can accept TT with 30% deposit and 70% balance against loading bill or 100% irrevocable L/C at sight.
Q5:can we visit your factory?
A6: Jinduo company is next to linyi airport, we can pick you up from airport to our factory at any time, welcome to visit us.
