| Feeding width: | |
|---|---|
| layers: | |
| conveyor type: | |
| product capacity: | |
JDHG3000-4L
KINDLE

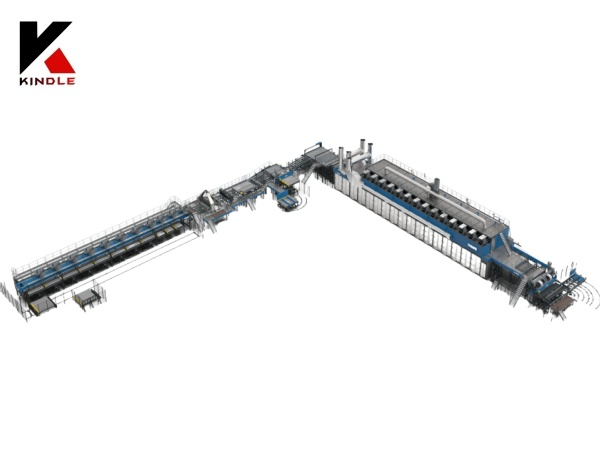

The wood veneer belt dryerEquipped with a continuous conveyor belt system, it enables smooth, uninterrupted material handling, minimizing manual labor and enhancing productivity. The dryer utilizes a precision controlled hot air circulation mechanism, distributing uniform heat across multiple layers to prevent uneven drying and reduce the risk of warping or cracking. Its energy efficient design incorporates insulated chambers and low-power consumption components, cutting operational costs while maintaining consistent drying results. Advanced temperature and humidity sensors allow real-time monitoring and automatic adjustments, ensuring precise control over the drying process to meet specific moisture reduction targets. Built with durable, corrosion-resistant materials, the dryer withstands harsh industrial environments, offering long-term reliability and minimal maintenance. Suitable for various veneer types and thicknesses, this system integrates seamlessly into production lines, streamlining workflows and delivering high-quality, moisture-controlled wood veneers that meet international standards for strength and stability. Ideal for woodworking industries, it balances efficiency, precision, and durability to enhance overall manufacturing performance.
Machine parameter
| Model | JDHG320R-4L | JDHG470R-4L |
| Veneer thickness | 1.0-4.0mm | 1.0-4.0mm |
| Feeding width | 3200mm | 4700mm |
| Layer | 4 | 4 |
| Heating area length | 30m(15chamber * 2m) | 22m(11chamber * 2m) |
| Cooling area length | 4m | 4m |
| Initial moisture content | <70% | <70% |
| Final moisture content | <10% | <10% |
| product capacity | 5-6m³/h | 5-6m³/day |
| Input and output conveyor length | 5m / 6m | 5m / 6m |
| Total power | 211.5kw | 211.5kw |
| Heating motor power | 15sets * 11kw | 11sets× 15 kw |
| Cooling motor power | 4sets * 4kw | 4 sets* 4kw |
| Driving motor power | 4sets* 7.5kw | 4sets* 7.5kw |
| Moisture exhaust motor power | 2sets*0.25kw | 2sets*0.25kw |
| Heating consumption | 3500KW | 3500KW |
| Automatic feeding system | optional | optional |
| Temperature detector system | yes | yes |
| Moisture detector system | optional | optional |
| Weight | 150000kgs | 160000kgs |
| Overall size | 44m(L)*4.2m(W)*4.5m(H) | 36m(L)*5.8m(W)*4.5m(H) |
1. After curing, the veneer is free of splits and the surface is suitable for bonding.
2. Shrinkage and casehardening are kept to a minimum, while collapse and honeycomb are prevented.
3. The veneer dryer is outfitted with an automatic control system, which has the advantages of lowering labor costs, increasing drying efficiency, making operation simple, and reducing failure rates. The major electrical appliances are chosen from worldwide brands.
4. This sort of dryer requires less maintenance, as there is no veneer jamming, which results in reduced downtime.
5. We have a professional R&D staff that can create customized designs based on our customers' specific requirements.
6. After-sales service: remote operation is accessible upon request; network interactive services; regular client visits; a professional support team may resolve failures on the first attempt.
