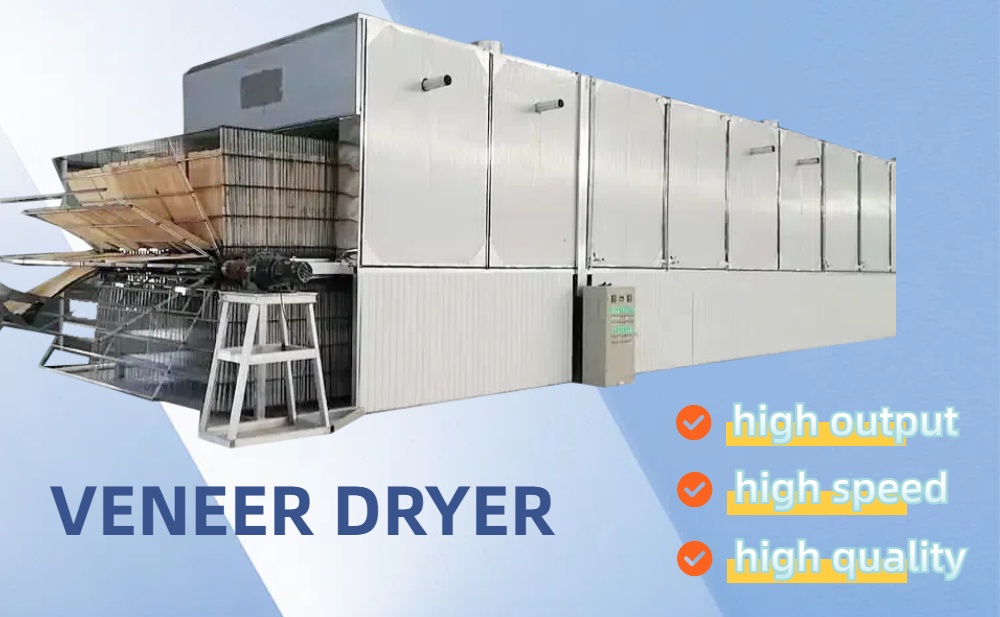

Energy Saving Plywood Drying Equipment For Wood Face Veneer

    The veneer comes from the veneer lathe by processing wood, and wood has humidity, especially for some hardwood, clients will boil them before peeling, therefore, the peeled veneer moisture is high, different wood veneer species will be different, usually between 40-70%. And veneer sheets are materials for making kinds of products like plywood panel, furniture and other wooden products, obviously, such high humidity will be impossible for the production.

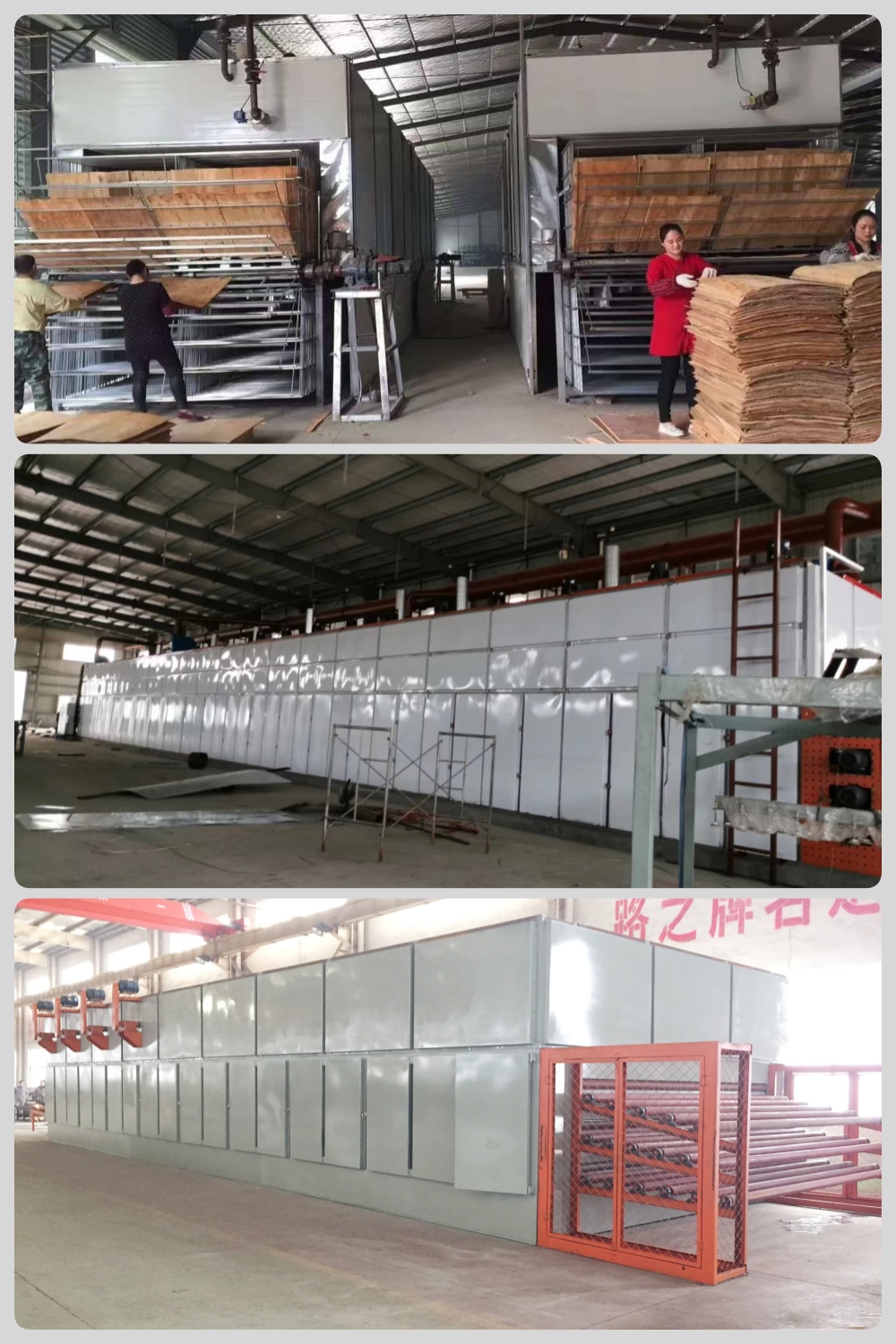

Thats why veneer drying line are necessary. The big advantage of veneer drying line is that it can satisfy kinds of drying capacity per day, because it can be different floors, width, and sections. For the veneer drying lines, it includes two types, one is roller type plywood drying equipment, another is plywood drying equipment, their biggest difference is that the convey way different, the first one by roller convey veneers, the latter by mesh convey veneers. After drying veneers, the end veneer humidity usually be 5%-10%, and it is suitable to make the end product. because after dryed veneer, workers will coating glue on veneer surface by glue spreader, and lay them up.

Machine parameter

1. Drying slicer veneer, log lathe/half round slicer veneer, and peeling face veneer.

2.Reliable operation, extended service life, energy efficiency, and unparalleled performance.

3. Mesh belt dryers are closed-belt dryers. Its distinguishing feature is that only the feed and discharge ends are open, while the others are closed. Hot air travels through the apparatus with minimal heat loss, allowing for significant energy savings.

4. The equipment's arrangement is adjustable, and it can dry multiple materials at once, making it easy to operate and significantly reducing labor.

5. The structure is basic, easy to install, can run for a long period, and maintenance is convenient.

6. After drying, the veneer has a uniform moisture content and is flat, with no buckles or end waviness.

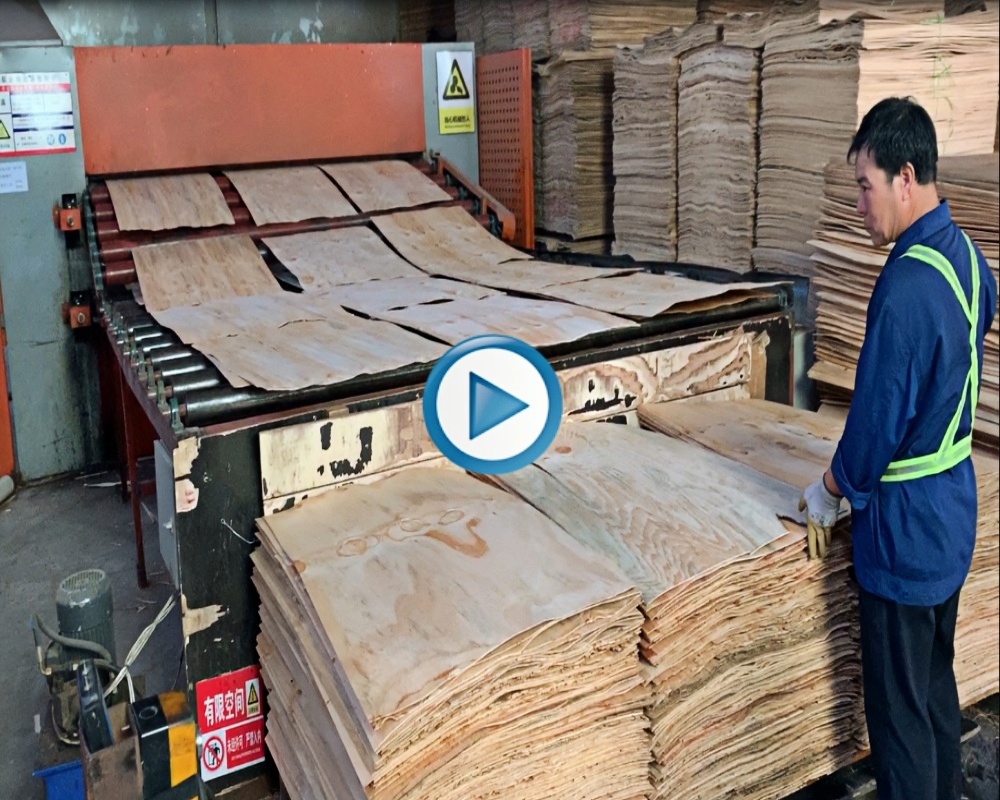

THE ROLLER OF DRYER

      Not only the roller adopt High temperature resistant material, the gear is also processed by heating treatment, the bearing choose High temperature resistant model, all those parts promise the transfer system of dryer can work well in high temperature.

SOLID STRUCTURE

       The dryer frame choose thicker and heavier steel from large company to ensure the structure can not be deformed in working. good structure also means good tightness,reduce the heating lost and increase the drying capacity, down the fuel cost.





HEATING FANS

    Adopt high power heating centrifugal fans, this fan can supply stronger suction and blow it on the veneer surface, Most of the moisture in veneer is taken away by this heating wind, not the high temperature, so this roller drying machine capacity is much better than traditional model.

HEATING RADIATOR

       The heating oil or steam will flow in the radiator and the heating fan absorb the hot air from the radiator, it's an important part to transform from hot oil to hot air, its efficiency also have a conspicuous influence to the veneer dryer capacity. Our radiator adopt special heating material to guarantee the heating power utilization ratio.

HIGH QUALITY MESH BELT

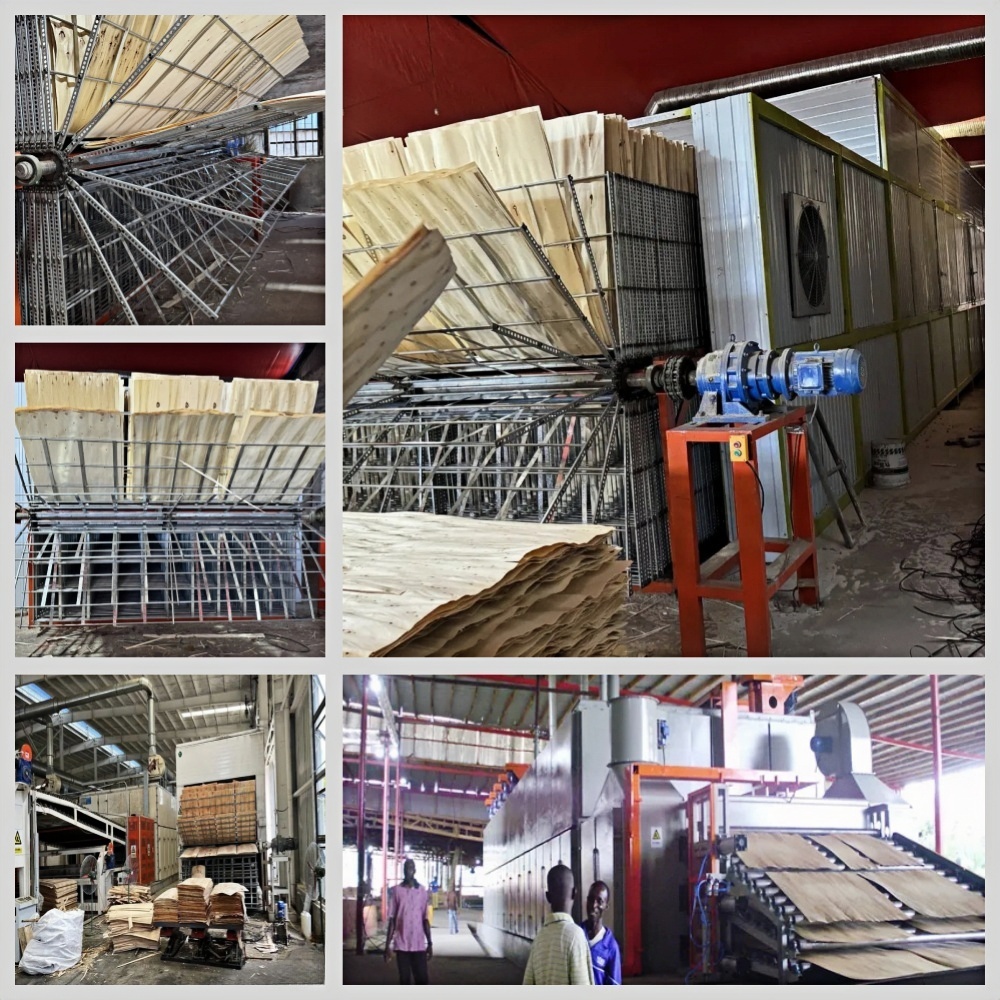

       When drying face veneer which thickness is less than 1mm, this kind of mesh belt dryer will be better, can promise the veneer transfer smoothly, reduce the probability of broken, this mesh belt adopt stainless steel, easy to maintain if damaged.

AUTOMATIC FEEDING SYSTEM

    This feeding system can load veneer automatically, don't need labor to feed the veneer, espcially for big size veneer, it's easy to damage in feeding by manual, generate a serious wasting, and more useful for the dryer that more than 2 layers, reduce more operators and increase the drying capacity. This is an optional device, can choose it according to customer demands.

    Our veneer dryer machine and plywood machine are exported to many countries like Malaysia,Indonesia, Russia, Turkey ,Brazil, Argentina, Paraguay and so on.

---

Spindleless peeler

Spindle peeler

Veneer composer

Hot press

Glue spreader

plywood trimming saw

Automatic putty line

Calibrating machine

Shandong kindle Machinery manufacture limited company

located in Linyi national Economic and Technological Deve-

lopment Zone, it was founded in 1998 which specialized in

research and development of veneer peeling machine for 26

years. It have obtained more than 60 national patents , it covers more than 30000 area and have 15 R&D technician and 30 professional engineer for installation and machine maintaining.

We are committed to provide complete solutions for veneer

peeling line, plywood making plant,LVL,block board, PB,OSB production Line etc. Main equipment include: Log cutting saw, log debarker , spindle peeling lathe and spindleless wood veneer peeling machine,veneer dryer, glue spreader,pre-press, hot press, veneer commposer,plywood saw, sanding machine, boiler, and related plant accessories and materials, etc.
