JDHG3000-4L
KINDLE

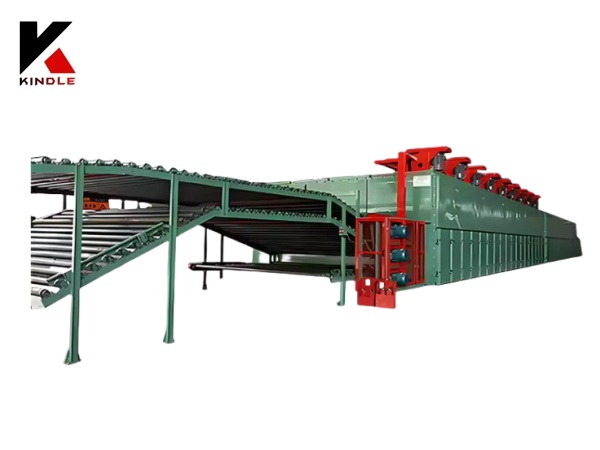

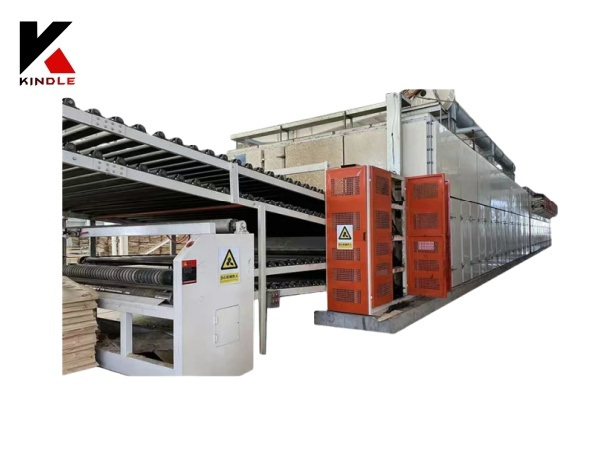

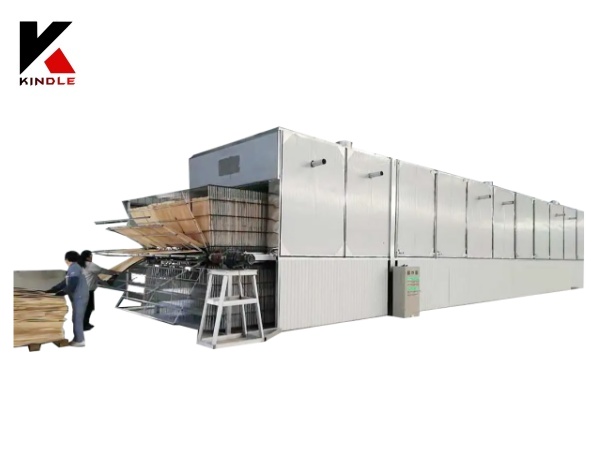

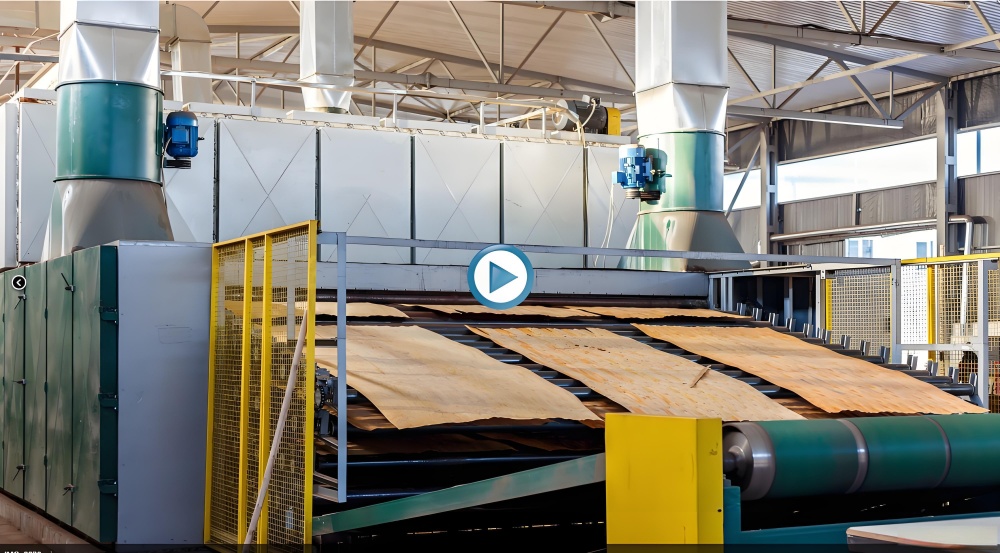

Mesh type veneer drying machine is a type of dryer that use a mesh belt to dry the veneer. The veneer is fed onto a mesh belt that travels through a heated chamber. The heat from the chamber evaporates the moisture in the veneer, which is subsequently evacuated by the fan. It is primarily used to dry oramental veneer. It consists of the front and back drive frames, the drying area, and the cooling area. The machine offers good drying performance, a fast drying speed, high production, simple maintenance, and is safe to use. One advantage of a mesh veneer drying machine is its ability to dry veneer rapidly and efficiently. The mesh belt promotes air circulation, which helps to quickly eliminate moisture from the veneer. This type of dryer can also be rather affordable to run.
Machine parameter
| Model | JDHG320R-4L | JDHG470R-4L |
| Veneer thickness | 1.0-4.0mm | 1.0-4.0mm |
| Feeding width | 3200mm | 4700mm |
| Layer | 4 | 4 |
| Heating area length | 30m(15chamber * 2m) | 22m(11chamber * 2m) |
| Cooling area length | 4m | 4m |
| Initial moisture content | <70% | <70% |
| Final moisture content | <10% | <10% |
| product capacity | 5-6m³/h | 5-6m³/day |
| Input and output conveyor length | 5m / 6m | 5m / 6m |
| Total power | 211.5kw | 211.5kw |
| Heating motor power | 15sets * 11kw | 11sets× 15 kw |
| Cooling motor power | 4sets * 4kw | 4 sets* 4kw |
| Driving motor power | 4sets* 7.5kw | 4sets* 7.5kw |
| Moisture exhaust motor power | 2sets*0.25kw | 2sets*0.25kw |
| Heating consumption | 3500KW | 3500KW |
| Automatic feeding system | optional | optional |
| Temperature detector system | yes | yes |
| Moisture detector system | optional | optional |
| Weight | 150000kgs | 160000kgs |
| Overall size | 44m(L)*4.2m(W)*4.5m(H) | 36m(L)*5.8m(W)*4.5m(H) |
1. After curing, the veneer is free of splits and the surface is suitable for bonding.
2. Shrinkage and casehardening are kept to a minimum, while collapse and honeycomb are prevented.
3. The veneer dryer is outfitted with an automatic control system, which has the advantages of lowering labor costs, increasing drying efficiency, making operation simple, and reducing failure rates. The major electrical appliances are chosen from worldwide brands.
4. This sort of dryer requires less maintenance, as there is no veneer jamming, which results in reduced downtime.
5. We have a professional R&D staff that can create customized designs based on our customers' specific requirements.
6. After-sales service: remote operation is accessible upon request; network interactive services; regular client visits; a professional support team may resolve failures on the first attempt.
