JDHG3000-4L
KINDLE

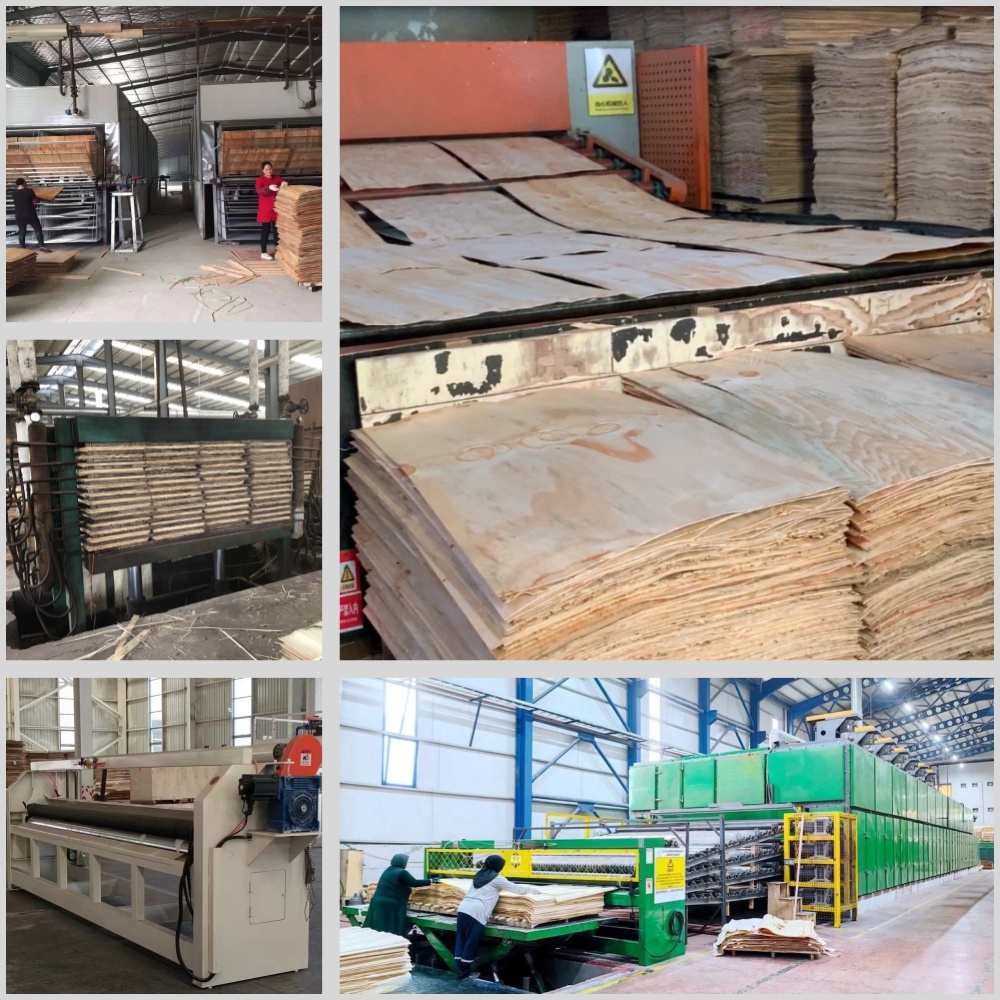

4 Decks Industrial Hot Air Circulation Dryer
Wood with a high moisture content is challenging to process, requiring longer processing times and more complex processing techniques. By reducing the moisture content through drying with a 4 decks hot air circulation dryer, the wood becomes easier to process and handle, thereby improving processing efficiency and shortening production cycles. Compared to using wood with a high moisture content directly for processing, wood that has been dried requires lower energy consumption for processing. This dryers utilize advanced heating technology and hot air circulation systems to rapidly dry wood to the desired moisture content, resulting in higher energy utilization efficiency and cost savings. Wood with unstable moisture content is susceptible to temperature and humidity fluctuations, leading to issues such as deformation, cracking, and mold growth, which pose uncertainties and quality risks during production. Drying wood to a stable moisture content with a roller dryer ensures reliable quality, thereby reducing quality problems and production risks.
Machine parameter
| Model | JDHG320R-4L | JDHG470R-4L |
| Veneer thickness | 1.0-4.0mm | 1.0-4.0mm |
| Feeding width | 3200mm | 4700mm |
| Layer | 4 | 4 |
| Heating area length | 30m(15chamber * 2m) | 22m(11chamber * 2m) |
| Cooling area length | 4m | 4m |
| Initial moisture content | <70% | <70% |
| Final moisture content | <10% | <10% |
| product capacity | 5-6m³/h | 5-6m³/day |
| Input and output conveyor length | 5m / 6m | 5m / 6m |
| Total power | 211.5kw | 211.5kw |
| Heating motor power | 15sets * 11kw | 11sets× 15 kw |
| Cooling motor power | 4sets * 4kw | 4 sets* 4kw |
| Driving motor power | 4sets* 7.5kw | 4sets* 7.5kw |
| Moisture exhaust motor power | 2sets*0.25kw | 2sets*0.25kw |
| Heating consumption | 3500KW | 3500KW |
| Automatic feeding system | optional | optional |
| Temperature detector system | yes | yes |
| Moisture detector system | optional | optional |
| Weight | 150000kgs | 160000kgs |
| Overall size | 44m(L)*4.2m(W)*4.5m(H) | 36m(L)*5.8m(W)*4.5m(H) |
1. After curing, the veneer is free of splits and the surface is suitable for bonding.
2. Shrinkage and casehardening are kept to a minimum, while collapse and honeycomb are prevented.
3. The veneer dryer is outfitted with an automatic control system, which has the advantages of lowering labor costs, increasing drying efficiency, making operation simple, and reducing failure rates. The major electrical appliances are chosen from worldwide brands.
4. This sort of dryer requires less maintenance, as there is no veneer jamming, which results in reduced downtime.
5. We have a professional R&D staff that can create customized designs based on our customers' specific requirements.
6. After-sales service: remote operation is accessible upon request; network interactive services; regular client visits; a professional support team may resolve failures on the first attempt.
