| Feeding width: | |
|---|---|
| layers: | |
| conveyor type: | |
| product capacity: | |
JDHG3000-4L
KINDLE

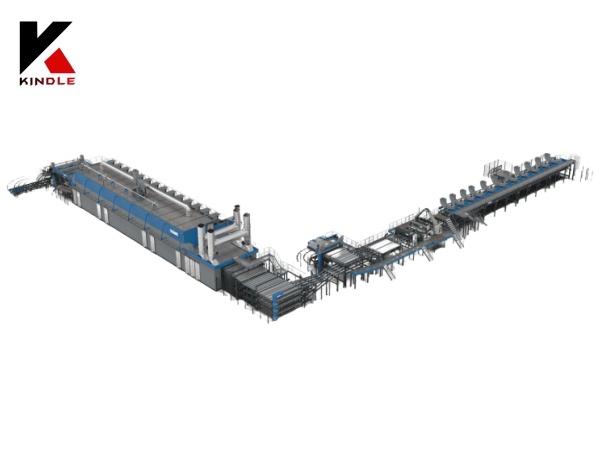

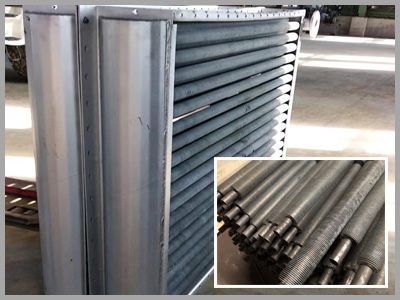

Equipped with an advanced heat recovery system, the dryer captures and recycles up to 90% of the thermal energy generated during operation, significantly reducing energy consumption compared to conventional systems. This innovative technology not only lowers operational costs but also enhances environmental sustainability by cutting carbon emissions. The system features precise temperature and humidity control, ensuring uniform drying quality that preserves the structural integrity and aesthetic appeal of veneer sheets. Its modular design allows for easy integration into existing production lines, while the robust construction guarantees long-term reliability and minimal maintenance. Ideal for high-volume manufacturing, the dryer supports continuous operation with adjustable drying parameters to accommodate various veneer types and thicknesses. By combining energy efficiency, superior drying performance, and eco-friendly design, this system sets a new standard for sustainable veneer production, delivering consistent results and tangible cost savings for woodworking industries worldwide.
Machine parameter
| Model | JDHG320R-4L | JDHG470R-4L |
| Veneer thickness | 1.0-4.0mm | 1.0-4.0mm |
| Feeding width | 3200mm | 4700mm |
| Layer | 4 | 4 |
| Heating area length | 30m(15chamber * 2m) | 22m(11chamber * 2m) |
| Cooling area length | 4m | 4m |
| Initial moisture content | <70% | <70% |
| Final moisture content | <10% | <10% |
| product capacity | 5-6m³/h | 5-6m³/day |
| Input and output conveyor length | 5m / 6m | 5m / 6m |
| Total power | 211.5kw | 211.5kw |
| Heating motor power | 15sets * 11kw | 11sets× 15 kw |
| Cooling motor power | 4sets * 4kw | 4 sets* 4kw |
| Driving motor power | 4sets* 7.5kw | 4sets* 7.5kw |
| Moisture exhaust motor power | 2sets*0.25kw | 2sets*0.25kw |
| Heating consumption | 3500KW | 3500KW |
| Automatic feeding system | optional | optional |
| Temperature detector system | yes | yes |
| Moisture detector system | optional | optional |
| Weight | 150000kgs | 160000kgs |
| Overall size | 44m(L)*4.2m(W)*4.5m(H) | 36m(L)*5.8m(W)*4.5m(H) |
1. After curing, the veneer is free of splits and the surface is suitable for bonding.
2. Shrinkage and casehardening are kept to a minimum, while collapse and honeycomb are prevented.
3. The veneer dryer is outfitted with an automatic control system, which has the advantages of lowering labor costs, increasing drying efficiency, making operation simple, and reducing failure rates. The major electrical appliances are chosen from worldwide brands.
4. This sort of dryer requires less maintenance, as there is no veneer jamming, which results in reduced downtime.
5. We have a professional R&D staff that can create customized designs based on our customers' specific requirements.
6. After-sales service: remote operation is accessible upon request; network interactive services; regular client visits; a professional support team may resolve failures on the first attempt.
