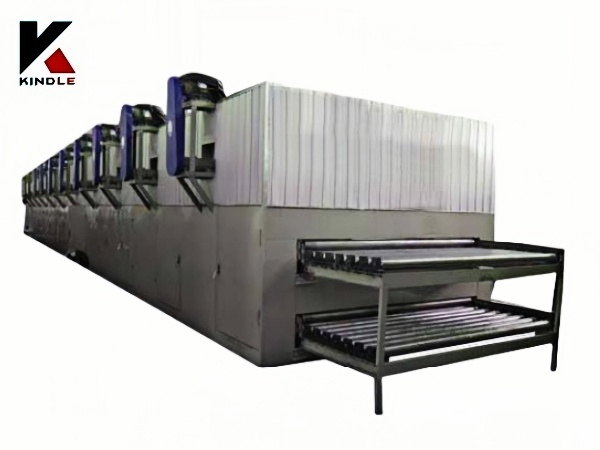

Roller Dryer for Plywood with Moisture Detector Drying

   Introducing our Roller Dryer for Plywood with Moisture Detector, a cutting-edge solution designed to optimize plywood drying processes with precision and efficiency. This advanced machine integrates a state of the art moisture detection system that continuously monitors and adjusts drying conditions, ensuring uniform moisture reduction while preventing over drying or uneven results. The layer-based roller design features multiple heated rollers arranged in a compact, space-saving configuration, allowing for smooth transportation of plywood sheets through controlled thermal zones. Each roller is engineered to distribute heat evenly, accommodating various plywood thicknesses and grades while maintaining consistent drying speeds. The built moisture sensor provides real-time data, enabling automatic adjustments to temperature and conveyor speed, which not only enhances product quality but also reduces energy consumption. Ideal for plywood manufacturers seeking to streamline operations, this dryer combines robust construction with intelligent technology, minimizing waste, improving productivity, and delivering plywood that meets strict moisture standards. Its user-friendly interface and low maintenance design make it a reliable choice for high-volume production environments, ensuring long-term efficiency and superior drying performance.

Machine parameter

1. This veneer dryer gather the features from mesh belt dryer and roller dryer, so that it has both advantages of them.

2. This drying  machine is specially for the customer demanding large production capacity, so it has the particular function to be able to dry face veneer, back veneer, long middle-thickness veneer, middle-thickness veneer with various dimension, middle-thickness veneer with cut to length etc.


3. This machine adopts air flow circulation system of air pressure type and top centrifugal blower, they have features of high air pressure and large air volume. The radiator adopts the structure of steel & aluminum composite, and it has large heat radiation area and good heat radiation effect.

4. In this dryer, the air flow is circulated horizontally and sprayed vertically to dry the veneer, and the veneer is transported by couples of rollers and mesh belt..



THE ROLLER OF DRYER

      Not only the roller adopt High temperature resistant material, the gear is also processed by heating treatment, the bearing choose High temperature resistant model, all those parts promise the transfer system of dryer can work well in high temperature.

SOLID STRUCTURE

       The dryer frame choose thicker and heavier steel from large company to ensure the structure can not be deformed in working. good structure also means good tightness,reduce the heating lost and increase the drying capacity, down the fuel cost.





HEATING FANS

    Adopt high power heating centrifugal fans, this fan can supply stronger suction and blow it on the veneer surface, Most of the moisture in veneer is taken away by this heating wind, not the high temperature, so this roller drying machine capacity is much better than traditional model.

HEATING RADIATOR

       The heating oil or steam will flow in the radiator and the heating fan absorb the hot air from the radiator, it's an important part to transform from hot oil to hot air, its efficiency also have a conspicuous influence to the veneer dryer capacity. Our radiator adopt special heating material to guarantee the heating power utilization ratio.

HIGH QUALITY MESH BELT

       When drying face veneer which thickness is less than 1mm, this kind of mesh belt dryer will be better, can promise the veneer transfer smoothly, reduce the probability of broken, this mesh belt adopt stainless steel, easy to maintain if damaged.

AUTOMATIC FEEDING SYSTEM

    This feeding system can load veneer automatically, don't need labor to feed the veneer, espcially for big size veneer, it's easy to damage in feeding by manual, generate a serious wasting, and more useful for the dryer that more than 2 layers, reduce more operators and increase the drying capacity. This is an optional device, can choose it according to customer demands.

    Our veneer dryer machine and plywood machine are exported to many countries like Malaysia,Indonesia, Russia, Turkey ,Brazil, Argentina, Paraguay and so on.

---

Spindleless peeler

Spindle peeler

Veneer composer

Hot press

Glue spreader

Plywood trimming saw

Automatic putty line

Calibrating machine

Shandong kindle Machinery manufacture limited company

located in Linyi national Economic and Technological Deve-

lopment Zone, it was founded in 1998 which specialized in

research and development of veneer peeling machine for 26

years. It have obtained more than 60 national patents , it covers more than 30000 area and have 15 R&D technician and 30 professional engineer for installation and machine maintaining.

We are committed to provide complete solutions for veneer

peeling line, plywood making plant,LVL,block board, PB,OSB production Line etc. Main equipment include: Log cutting saw, log debarker , spindle peeling lathe and spindleless wood veneer peeling machine,veneer dryer, glue spreader,pre-press, hot press, veneer commposer,plywood saw, sanding machine, boiler, and related plant accessories and materials, etc.

FAQ:

---

Q1:Are you machine manufacturer or a trading company?

A1: we are a factory which is special for producing veneer peeling machine and plywood machine,Jinduo company own 2 workshops and 1 trading company

Q2:What is the delivery time?

A2:In generally speaking , the complete veneer product line need about 30 days to manufacture after getting deposit.

Q3: what is the maintenance period and what kind of after sale service can you supply?

A3: the machinery part maintenance will be sustained in one year after installation and we have abroad warehouse and office for spare part in brazil and Russia, our engineer will arrive your factory to maintain the machine at first time if have problem.

Q4: what is the payment term?

A4: we can accept TT with 30% deposit and 70% balance against loading bill or 100% irrevocable L/C at sight.

Q5:can we visit your factory?

A6: Jinduo company is next to linyi airport, we can pick you up from airport to our factory at any time, welcome to visit us.
