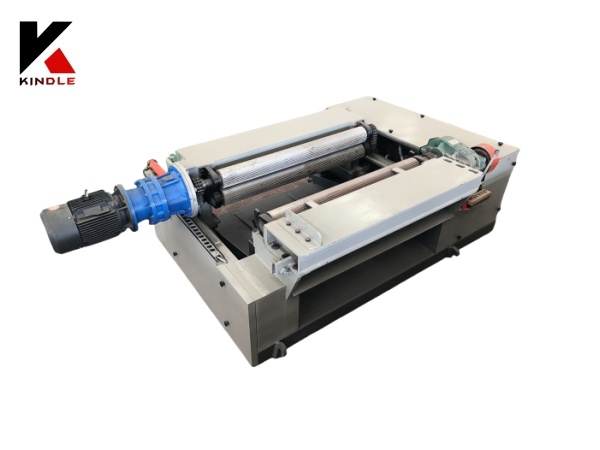

4 Feet Debarker Machine for Log Peeler

   The 4 feet debarker machine robust construction features durable steel components and sharp, adjustable peeling blades that conform to the log's contour, ensuring thorough bark removal while minimizing wood waste and preserving the log's structural integrity. The machine's user-friendly design includes intuitive controls and a safety-oriented operation system, allowing operators to manage feed rates and adjust settings with ease, even for those with minimal technical expertise. Equipped with a powerful motor and a reliable transmission system, it delivers consistent performance at high speeds, capable of processing a large volume of logs within short timeframes, thus significantly boosting production output. Additionally, its compact footprint and low-maintenance design make it suitable for various factory layouts, reducing installation space requirements and long-term operational costs. The debarker's precision ensures uniform debarking, eliminating uneven residue that could hinder downstream processes like slicing or veneer production, while its adaptability accommodates different log species and moisture levels, providing versatility for diverse plywood manufacturing needs. By integrating this machine into the production line, businesses can achieve higher-quality raw material preparation, optimize workflow efficiency, and gain a competitive edge in the plywood industry through reliable, cost-effective log debarking solutions.

Machine parameter

1. The structure is more solid and stronger , can bark most kind of log no matter hard or soft.


2. The roller diameter is bigger and have been heat treated, much harder and More wear-resistant.


3. The hydraulic unit part adopt international famous brand, working more reliable.


4. Support roller can work well with big and curved log, it is very useful in complete peeling line.


5. Adopt double shredder saw, solve the problem of veneer blocking, increase product efficiency.

6. Delivers rapid and precise log alignment, significantly speeding up your wood processing workflow.

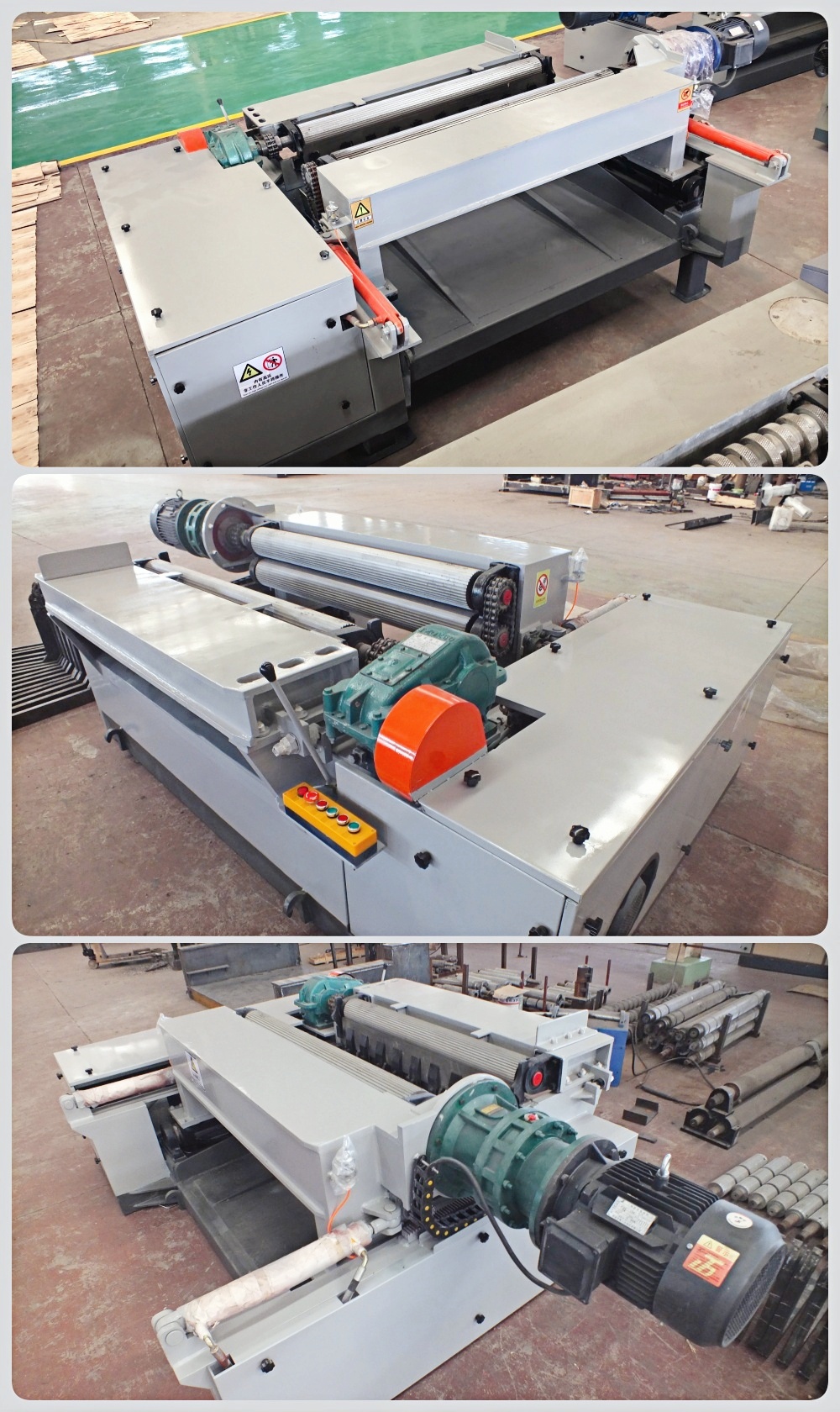

SUPPORT ROLLER AND BIG DIAMETER

        Adopt support roller device, when log is bigger and not straight, the support can help to whirl the log more easy, increase the efficiency of log rounding and also make the log drop down smoothly, this part is very useful in Full automatic veneer peeling line.

DOUBLE HEAD UNIVERSAL COUPLING

     Change the original jonter from china connector to uniersal jonter, promise the intensity and stability in power transmission. increase the working life and down the probability of broken,so the complete of debarker can run steady and quiet.





 HYDRAULIC UNIT

    The hydraulic valve and pump adopt global famous brand of taiwan, few problem in working, this unit control feeding system, power enough to bark hard and big log. be matched with air cooling fan to down the temperature of oil, so the complete of hydraulic system will work steady.

KNIFE GAP ADJUSTING DEVICE

    In barking process, the knife gap should be changed based on the log diameter, the particular connecting bar can adjust the blade gap in real time when peeling the log,in this way, the log skin can not block the gap and remove the log skin in high speed .this is a very useful device in log debarking machine.

WASTE VENEER SHREDDER DEVICE

        Most of the waste veneer and log skin after debarker need to be shreded and as fuel for boiler, The shredder adopt double cutting saw to shred the waste veneer, if the waste veneer can not out smoothly, maybe block the knife gap and have to stop the machine to clear it, waste much more time, this double saw designing can guarantee the waste veneer drop out smootly and keep the machine working.

    Our log debarker and automatic veneer peeling line are exported to many countries like Malaysia,Indonesia, Russia, Turkey ,Brazil, Argentina, Paraguay and so on.

---
