JDZ1-19
KINDLE

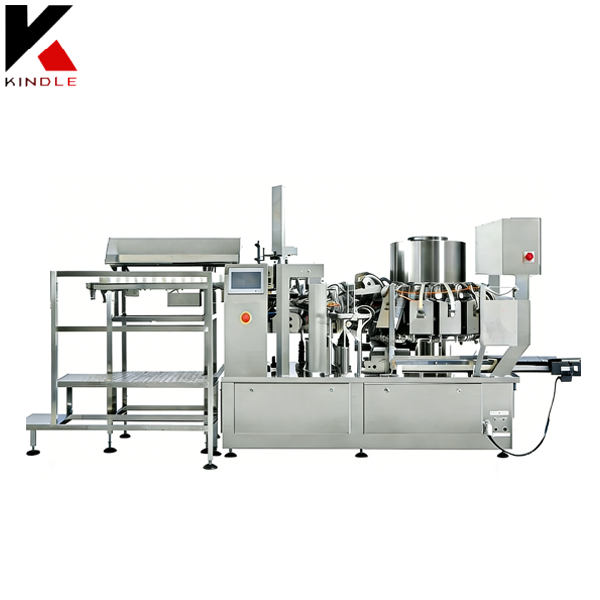

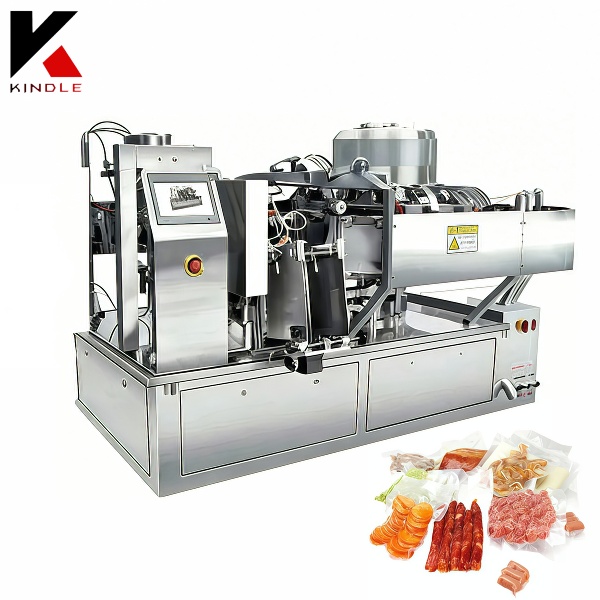

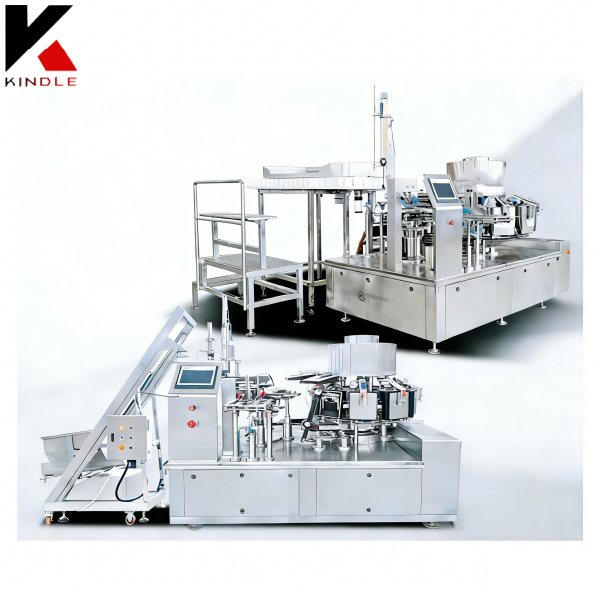

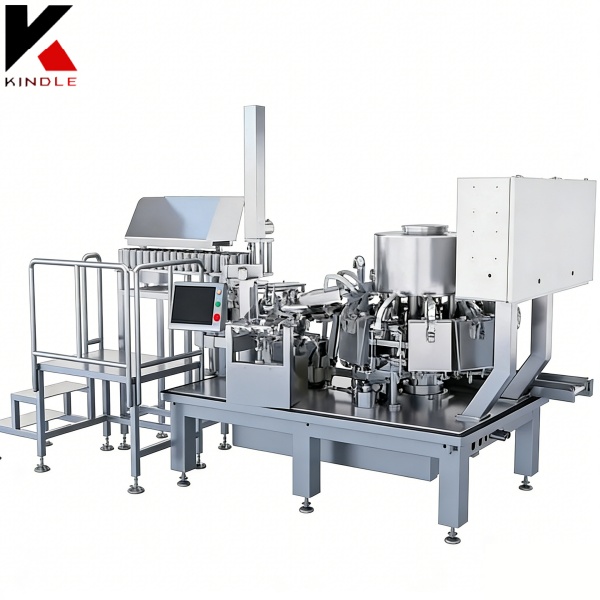

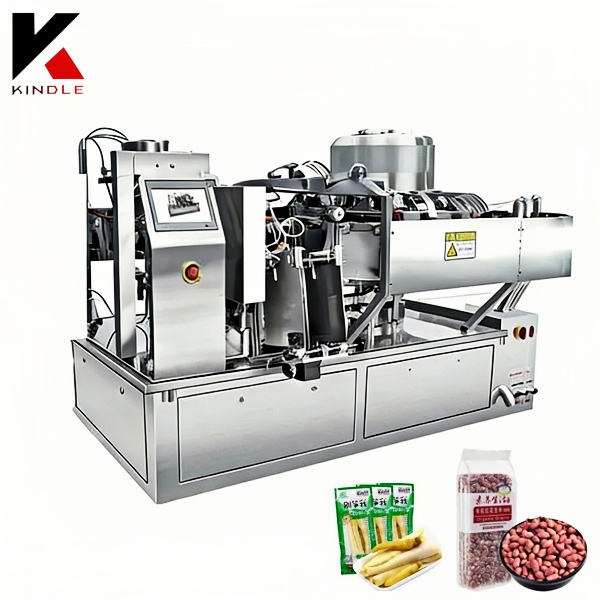

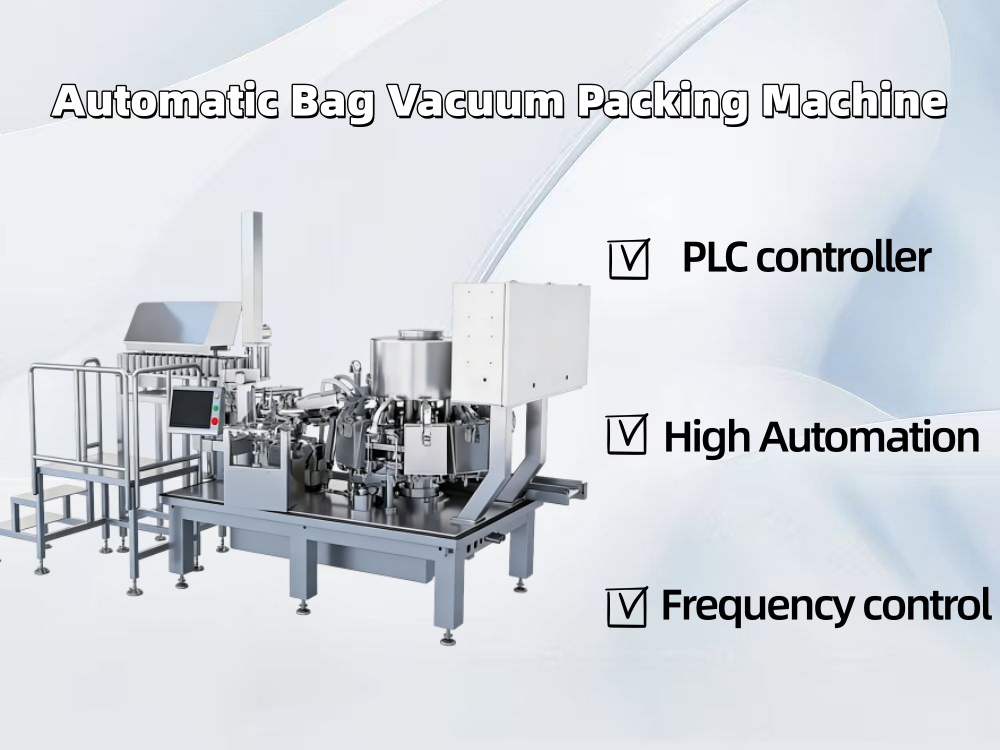

Automatic Food Rotary Vacuum Pouch Packing Machine
The pre-made bag automatic packaging machine is an automated packaging equipment that uses pre-made bags to complete the entire material packaging process. It is suitable for packaging liquid to solid materials in industries such as food, daily chemicals, and pharmaceuticals. This equipment uses a robotic arm to automatically pick up bags and print dates, and integrates processes such as vacuum nozzle bag opening, weighing system unloading, and heat sealing. It supports packaging formats such as back-seal bags, stand-up pouches, and irregularly shaped bags.
Main Function :
Pick up Bag -Open bag -Fill Product -Vacuum - Seal
Application :
Pickles, Peanut , Nuts , Fish, Meat , Rice , Fish Ball , Meat Ball , Cooked Food , Daily commodities, etc.
Suitable Pouch Type:
All type of heat sealable performed side seal bags, block bottom bags, zip-lock bags, stand-up pouch with or without spout etc.
Machine parameter
| Model NO. | 230B | Application | Rare Metal, Precision Instrument, Electronic Component, Drug, Food |
| Power | Mechanical | Automation | Automatic |
Inflatable Device | With Inflatable Device | Type | Single Chamber Vacuum Packing Machine |
Object State | Paste, Powdery, Liquid, Solid | Condition | Used |
Packing Speed | 70-90bags/Min | Bag Specifications | W:55-130mm L:60-180mm |
Weight (Kg) | 2.5t | Host Power | 9kw |
Air Consumption | 0.8m³/Min | Voltage | 220V/380V |
Material | 304 Stainless Steel | Transport Package | Wood Box |
Specification | 2550*1600*1600mm(L*W*H) | Trademark | ELEMOTION |
Origin | China | HS Code | |
| Production Capacity | 9000pieces/Years |
1. Experience swift adaptability with our machine's rapid bag specification replacement. The automatic bag feeding device adjusts the width automatically, streamlining operations with unmatched ease.
2. Our machine adheres strictly to food processing hygiene standards. Every part that contacts materials or bags is crafted from stainless steel or other materials compliant with food hygiene requirements, ensuring the utmost in food safety and sanitation.
3. Simplifying your maintenance routine, our vacuum chamber is designed for easy and convenient cleaning.
4. Achieve minimal packaging material loss with our machine's use of pre-made bags, ensuring impeccable bag patterns and superior sealing quality. This not only enhances product quality but also allows bag recycling without waste from unused materials.
5. Enjoy effortless operation with our advanced PLC and POD (touchscreen) electrical control system. It provides a user-friendly interface enabling seamless adjustments of pneumatic element angle and time.
6. Our innovative sealing temperature monitoring function ensures reliability by alerting you via touchscreen alarm if the heating tube or electric heating coupling is compromised.

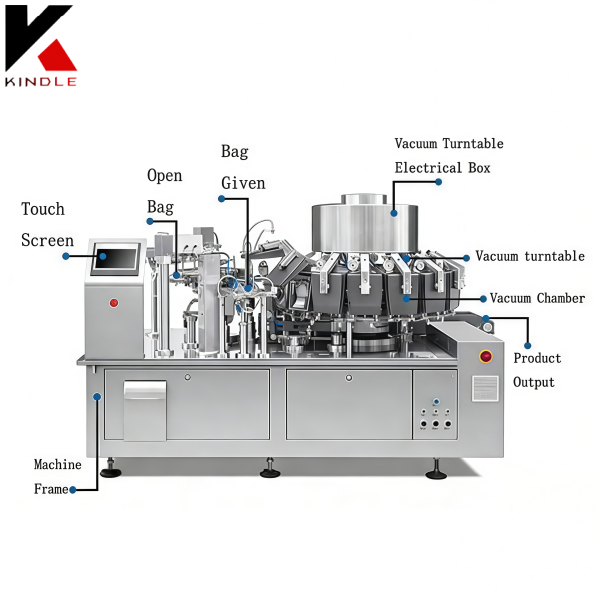

VACUUM CHAMBER
The vacuum shut-off device of theequipment is jointly developed byour company and GermanySyntheticmaterials can achieve zero frictionduring vacuum packaging Zerowearand tear.

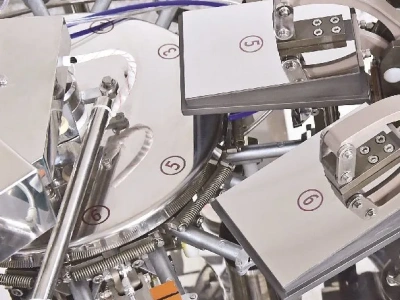

Eight Station Disc
Eight-station manipulator.fast matching operation,machine stability.low loss.

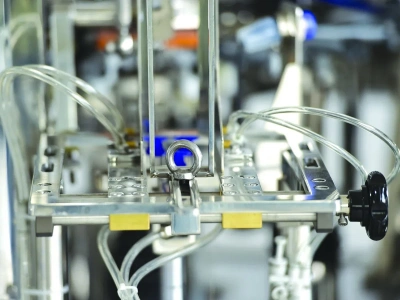

UPPER BAGCOMPARTMENT BAG
The bag compartment is easy toadjust and easy to replace, bags ofdifferent sizes, suction bag bracketmulti-position adjustable,improvingthe cost of suction bags.

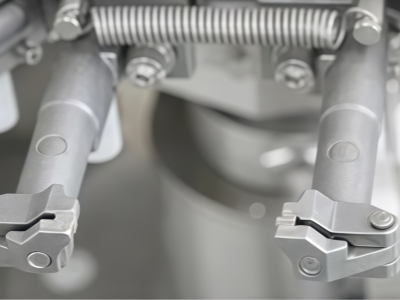

CLAMP
The clamp distance is well made, andthe maximum pressure can withstand 5KG.The product is dropped and the embeddedspring design does not leave a hygienicdead comer.The spring will not fall intothe bag if it is dropped.

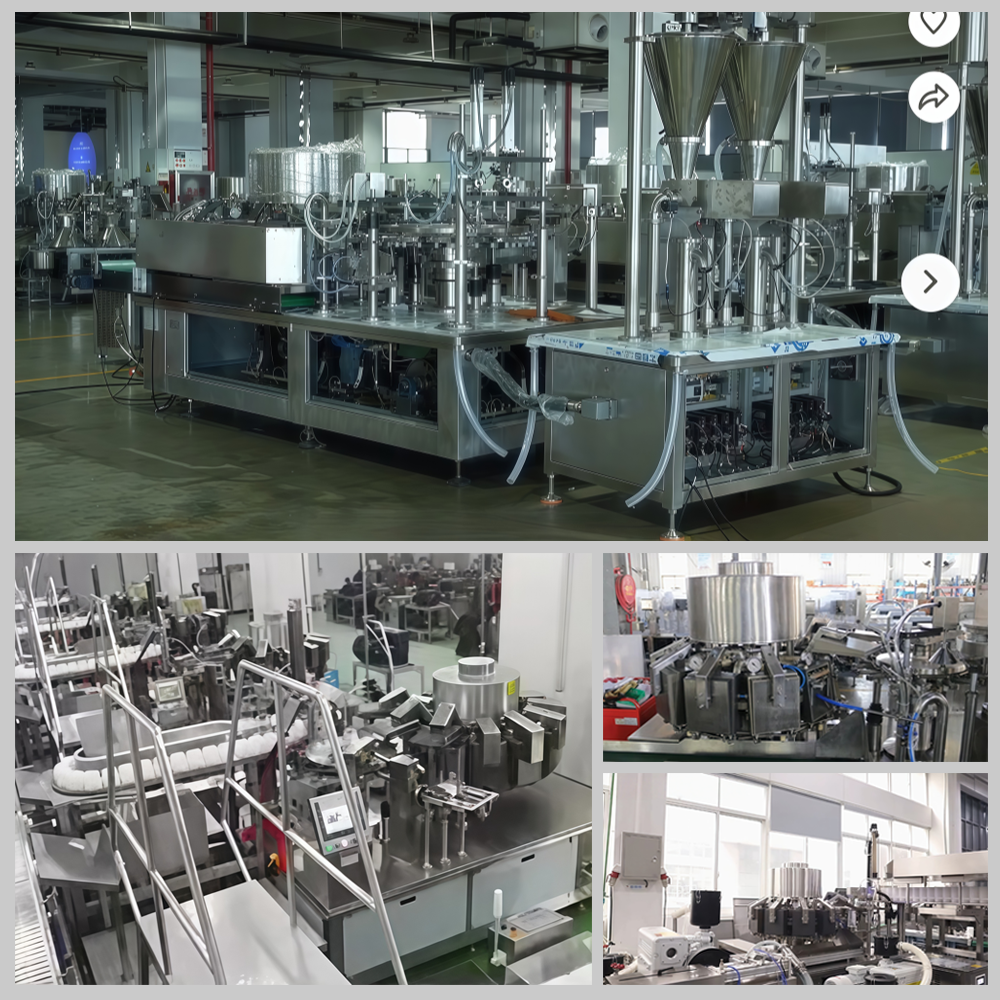

Our packaging machinery and related equipment are exported to many countries, including Malaysia, Indonesia, Russia, Turkey, Brazil, Argentina, and Paraguay.
Shandong kindle Machinery manufacture limited company
located in Linyi national Economic and Technological Deve-
lopment Zone, it was founded in 1998 which specialized in
research and development of veneer peeling machine for 26
years. It have obtained more than 60 national patents , it covers more than 30000 area and have 15 R&D technician and 30 professional engineer for installation and machine maintaining.
We are committed to provide complete solutions for veneer
peeling line, plywood making plant,LVL,block board, PB,OSB production Line etc. Main equipment include: Log cutting saw, log debarker , spindle peeling lathe and spindleless wood veneer peeling machine,veneer dryer, glue spreader,pre-press, hot press, veneer commposer,plywood saw, sanding machine, boiler, and related plant accessories and materials, etc.
