Full Automatic Double Veneer Peeling Line With Trimming Saw

Veneer peeling line is very important for making wood veneers, plywood, and wooden furniture. It will process kinds of wood into wood veneers. One complete veneer production line includes Log debarker machine, Veneer peeling machine, Veneer stacker. The standard veneer peeling line includes 4 feet and 8 feet, also we can customize the veneer machine as your own conditions.

Maximum log length:	2600MM
MAX. LOG DIAMETER:	500MM
product capacity:	60-80m³/day
Availability:



SEND INQUIRY

Model:
LSX130-50DU
Brand:
KINDLE

double veneer peeling line full automatic veneer peeling line veneer peeling line with trimming saw

Product Description

wood veneer produce product description

AUTOMATIC DOUBLE VENEER PEELING LINE

This veneer peeling line is an advanced wood processing production line that integrates log debarking machine, log trimming saw, veneer peeling machine, veneer stacking machine and a series of automated conveying equipment. It not only represents the latest progress in wood processing technology, but also leads the industry's innovation trend with high efficiency, precision and excellent output. The veneer peeling line include one set log conveyor for debarker , one set log debarker, one set log distributor, two sets log conveyor for veneer peeling machine , two sets veneer peeling machine and two sets automatic veneer stacker, this line can increase the veneer product capacity and reduce the workers, it streamlines the peeling process from log loading and centering to continuous veneer cutting ensuring minimal downtime and maximum resource utilization.Perfect for large-scale plywood or laminated wood production, the Double Peeling Line delivers unmatched productivity, cost-effectiveness, and reliability for modern wood-processing facilities.

4 FEET DOUBLE PEELING LINE

1	log conveyor for debarker	5	log edge trimming saw
2	wood waste conveyor from log debarker	6	log ladder conveyor for peeling machine
3	log debarker-heavy model	7	remanent log conveyor after peeling
4	log distributor conveyor	8	automatic veneer peeling machine
9	Vacuum absorbing automatic veneer stacker

Machine parameter

Model	XQLSX130-70D
Maximum log length	1300mm
Maximum log diameter	Φ700mm
Blade size	160018016mm
veneer thickness	0.6-3.6mm
Veneer size	1300mm*(600mm-2600mm)
Veneer degree	3 degrees
product capacity	60-80m³/day
Total power	125kw
operator	1-2person
Weight	28600kgs
Overall size	24000mm*5600mm

VENEER PEELER

product advantage

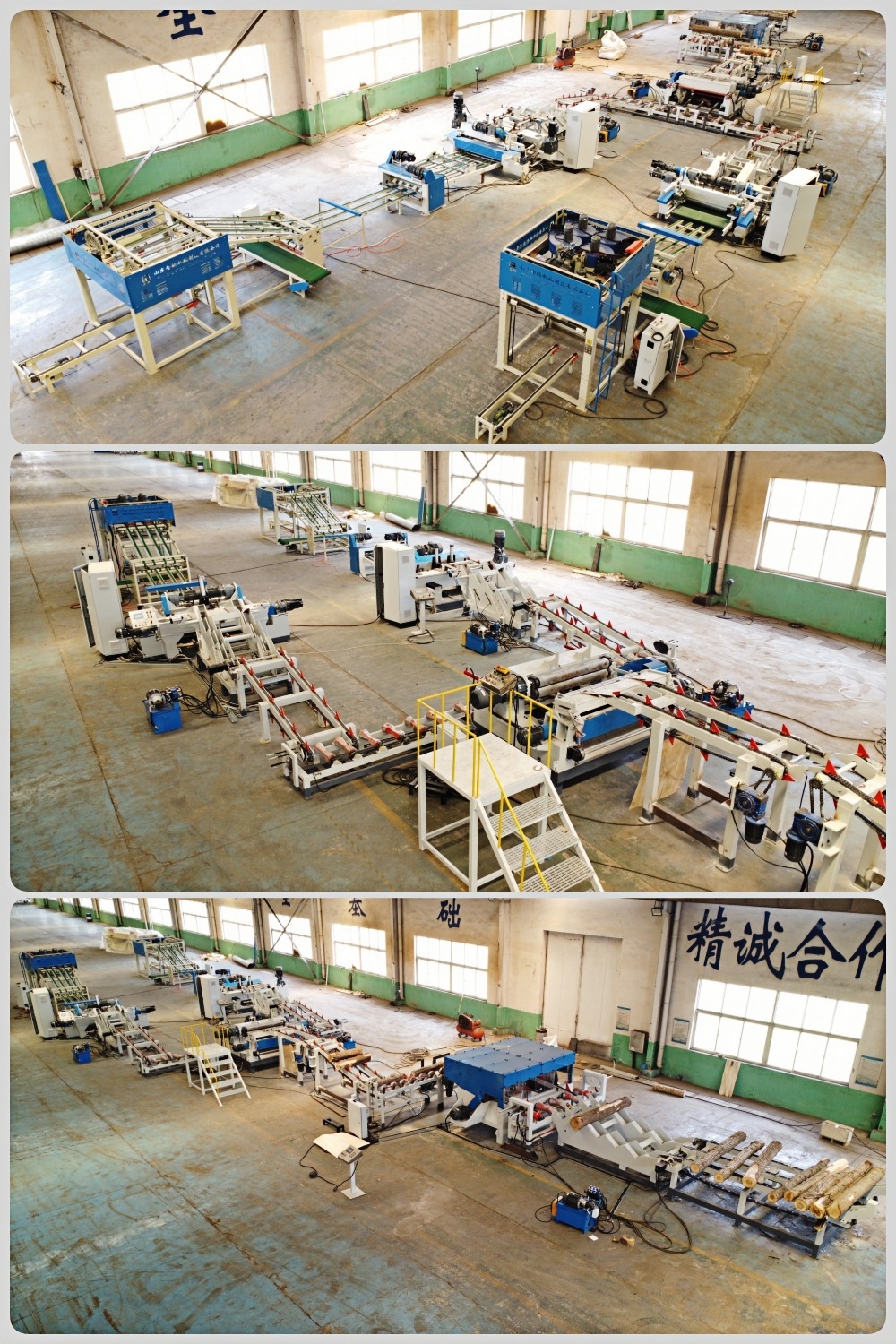

veneer peeling line 11

Only one person is required to operate the entire production line, save people and reducing working intensity
Adopt German SIKE brand electric photo-switch detector，more stable and not easy to broke down.
This line can run smoothly and few problem in working, don't need so much maintenance.
The daily production output can increase 30-40% than regular peeling line, increase the working efficiency
More rational layout of this veneer line, save installation area and more safety in working.

MACHINE DETAILS

number

LOG CONVEYOR FOR CUTTING SAW

This part is used to feed raw log to log cutter, the log is not round and diameter is bigger, so the chain and structure need stronger and more solid.

The ladder converyor is used to separate log in single, so can ensure only one log can be put in log debarker, improve the automatic level.

NUMBER-2

AUTOMATIC LOG CUTTING SAW

This part is used to cut 8 feet log into 2 pieces 4 feet length and trimming the log edge at same time. the cutting type adopt saw blade,diameter can be 1200mm, the cutting efficiency is much higher than normal model and the cut gap is very thin.

Each blade is drived by one 18.5kw motor, power enough for big and hard log.

NUMBER-3

LOG DEBARKER-HEAVY MODEL

The log debarker adopt heavy model, the support roller is helpful to process curved log and guarantee the finished log can drop out of the debarker smoothly, so this whole peelng line can working smoothly, don't need operator to handle it. and this heavy model debarker is more powerful and stronger, it's easy to deal with different kind of log.

NUMBER-4

LOG DISTRIBUTING CONVEYOR

This conveyor is used to transfer log to different machines according to the log diameter. It has some high precision detector to collect the singal and transfer to PLC, so can transfer log automatically. reduce the work strength of labor, also increase the working efficiency greatly.

LOG CONVEYOR FOR PEELING MACHINE

The log position corrector can transfer log into the middle of peeling machine blade, the plane conveyor is used to store log after debarking machine,the declining conveyor can separate log into single and feed it to peeling machine, in this way, the peeling machine don't need operator, it can working full automatically.

number-6

VENEER PEELING MACHINE- AUTO MODEL

The Peeling machine speed can be 40-100m/min and don't need operator, increase the veneer product capacity and reduce operator in this line, The regular log diameter is 500mm and the Maximum diameter of log can be 700mm, veneer thickness can be 0.6-3.6mm, precision of veneer thickness can be ±0.075mm, this is the main part in this veneer product line.

NUMBER-7

AUTOMATIC VENEER STACKER

Because the speed of peeling machine can be 100m/min much faster than manual stacking, so have to adopt this auto stacker, this stacker speed can be 40-120m/min, the veneer thickness can be 0.8-3.6mm. adopt vacuum suction fans to transfer veneer. This stacker can separate different degree veneer into independent stacks, you can set the hole size based on degree, it's very popular in automatic veneer product line.

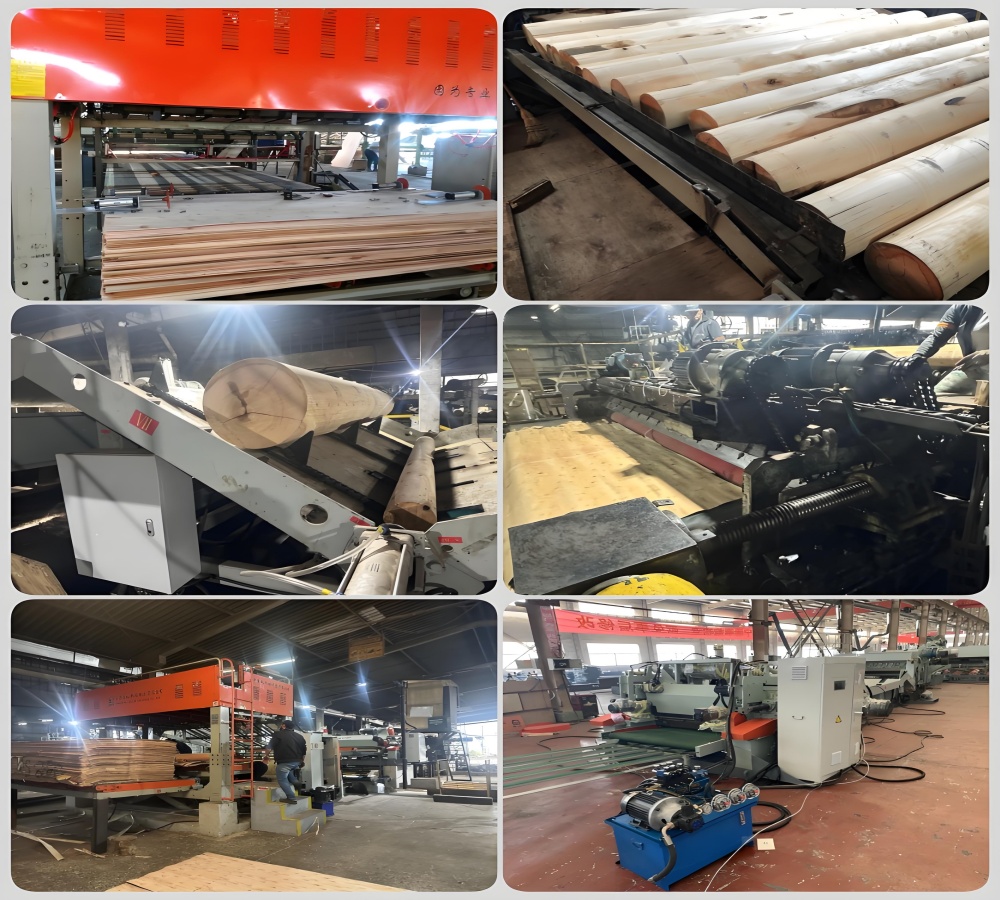

veneer peeling line 2

Our log debarker and automatic veneer peeling line are exported to many countries like Malaysia,Indonesia, Russia, Turkey ,Brazil, Argentina, Paraguay and so on.Welcome contact us for more information

Spindle peeling machine

Veneer dryer

Veneer composer

Hot press

Glue spreader

plywood trimming saw

Automatic putty line

Calibrating machine

KINDLE COMPANY

workshop 2

Shandong kindle Machinery manufacture limited company located in Linyi national Economic and Technological Development Zone, it was founded in 1998 which specialized in research and development of veneer peeling machine for 26 years. It have obtained more than 60 national patents , it covers more than 30000㎡ area and have 15 R&D technician and 30 professional engineer for installation and machine maintaining.

车间照片

We are committed to provide complete solutions for veneer peeling line, plywood making plant,LVL,block board, PB,OSB production Line etc. Main equipment include: Log cutting saw, log debarker , spindle peeling lathe and spindleless wood veneer peeling machine,veneer dryer, glue spreader,pre-press, hot press, veneer commposer,plywood saw, sanding machine, boiler, and related plant accessories and materials, etc.

company introduce

PATENT SHOWING

patent

PACKAGE AND DELIVERY

package and delivery

EXHIBITON SHOWING

brazil 2

CUSTOMER VISITING

customer visiting 2

FAQ:

Q1:Are you machine manufacturer or a trading company?

A1: we are a factory which is special for producing veneer peeling machine and plywood machine,Jinduo company own 2 workshops and 1 trading company

Q2:What is the delivery time?

A2:In generally speaking , the complete veneer product line need about 30 days to manufacture after getting deposit.

Q3: what is the maintenance period and what kind of after sale service can you supply?

A3: the machinery part maintenance will be sustained in one year after installation and we have abroad warehouse and office for spare part in brazil and Russia, our engineer will arrive your factory to maintain the machine at first time if have problem.

Q4: what is the payment term?

A4: we can accept TT with 30% deposit and 70% balance against loading bill or 100% irrevocable L/C at sight.

Q5:can we visit your factory?

A6: Jinduo company is next to linyi airport, we can pick you up from airport to our factory at any time, welcome to visit us.
