| Maximum log length: | |
|---|---|
| MAX. LOG DIAMETER: | |
| power: | |
| veneer chipper: | |

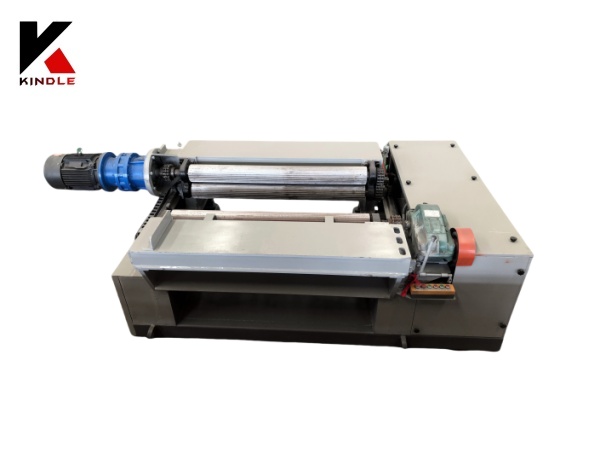

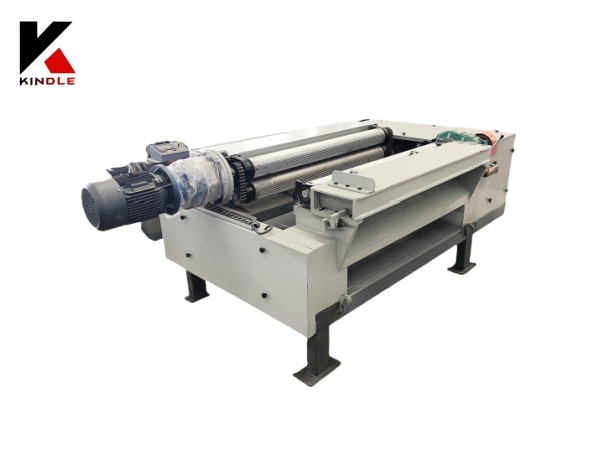

JDZY130-50H
KINDLE
Built with durable components and a robust mechanical structure, the machine withstands heavy-duty use, delivering stable performance even in continuous industrial operations. Its user-friendly interface allows for easy setup and adjustment, minimizing operator training time and reducing human error. Equipped with cutting-edge technology, the machine optimizes material utilization by accurately following the log's contour, minimizing waste and maximizing yield. The high-precision peeling mechanism guarantees uniform thickness and roundness, critical for meeting strict industry standards. Ideal for both small-scale workshops and large production facilities, this log rounding machine combines efficiency, durability, and superior output, streamlining the plywood manufacturing process while ensuring consistent, top-tier results. Invest in our machine to elevate your production line's productivity, reduce operational costs, and deliver plywood that stands out for its quality and uniformity, making it a indispensable asset in modern woodworking industries.
Machine parameter
| Model | JDZY130-70AG | JDZY60-70AG |
| Maximum log length | 1300mm | 2600mm |
| Maximum log diameter | Φ700mm | Φ700mm |
| Minimum log diameter | Φ80mm | Φ100mm |
| Blade size | 1600*180*16mm | 2700*180*16mm |
| veneer thickness | 1-3mm | 1-3mm |
| product capacity | 100m³/day | 200m³/day |
| Feeding system | Hydraulic unit | Hydraulic unit |
| Support roller | yes | yes |
| Roller diameter | Φ175/200mm | Φ200/278mm |
| Total power | 40.5kw | 81.5kw |
| Double roller power | 11kw | 2*11kw |
| Single roller power | 11kw | 2*15kw |
| Hydraulic unit power | 7.5kw | 7.5kw |
| shredder power | 11kw | 2*11kw |
| Weight | 5500kgs | 7500kgs |
| Overall size | 4800*2100*1650mm | 6300*2150*1750mm |
The structure is more solid and stronger , can bark most kind of log no matter hard or soft.
The roller diameter is bigger and have been heat treated, much harder and More wear-resistant.

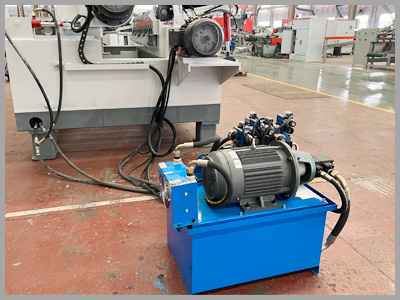

The hydraulic unit part adopt international famous brand, working more reliable.

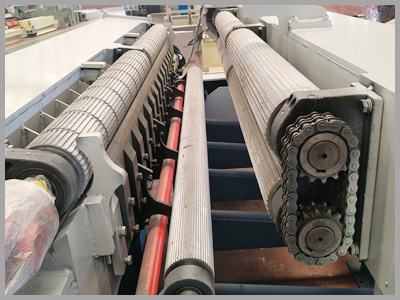

Support roller can work well with big and curved log, it is very useful in complete peeling line.

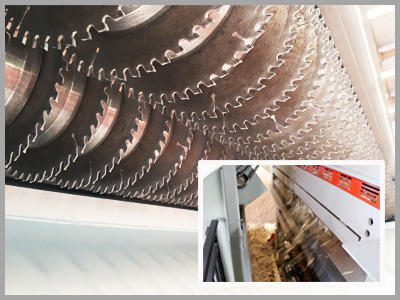

Adopt double shredder saw, solve the problem of veneer blocking, increase product efficiency.
Delivers rapid and precise log alignment, significantly speeding up your wood processing workflow.
