SHVG-216
KINDLE

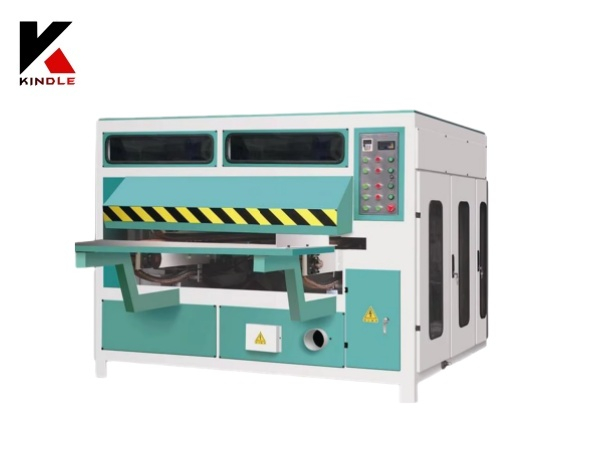

VENEER SCARF JOINTER
The machine adopts a mechanical structure of a machine tool. The conveying motor adopts a speed-adjusted motor and a crawler chain drive. The oblique grinding system moves back and forth, left and right rotation function, and the work is stable and reliable. The machine has many functions such as adjustable plate length (700-1300mm), simultaneous oblique grinding on one side up and down, automatic rolling edge shearing edge on both sides and automatic glue coating on one side, flexible adjustable thickness of veneer oblique grinding angle, etc., to meet the actual needs of the majority of users to process different plate lengths, oblique grinding width and thickness, and automatic glue coating. Ask. The machine can cut the unevenness of the board on one side in the process of rotary cutting and drying, automatically shear neatly, and the sanding belt has a long service life and strong adaptability. Its grinding accuracy is high and good quality. The machine completely solves the shortcomings of insufficient quality of plywood, and overcomes the disadvantages of layering and loose seams. After using this machine, the process requirements, quality and strength of the whole sheeting of the sandwich road veneer of the plate after oblique grinding and splicing have been greatly improved. It can be connected and spliced through a single oblique grinding.
Machine parameter
| Model | Double Head Veneer Grinder | Single Head Veneer Grinder |
| Feeding speed | 3.57-35.7m/min | 3.57-35.7m/min |
| Grinding thickness | 0.8-5.0mm | 0.8-5.0mm |
| Grinding belt line speed | 2051m/min | 2051m/min |
| Grinding width | 5-40mm | 5-40mm |
| Veneer length | 700-1300mm | 700-1300mm |
| Total Power | 16.5kw | 9KW |
| Productivity | 800-1100 piece/h (four spell veneer) | 800-1100 piece/h (four spell veneer) |
| Overall dimension | 2500*2200*1600mm | 2500*2200*1600mm |
1. Delivers ultra-precise grinding with 2μm accuracy for sharp blades.
2. Dual-end design cuts processing time by 50% for high-efficiency output.
3. Automatic alignment and PLC control reduce setup time and manual effort.
4. Heavy-duty build and sealed lubrication ensure durability in tough workshops.
5. Versatile compatibility with various blade types, materials, and sizes.
