JDPB130H-260
KINDLE

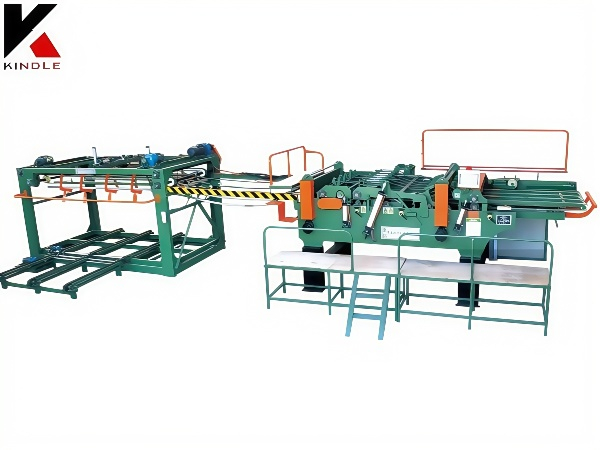

The plywood splicing machine suitable for the plywood industry can splice fragmented materials into complete boards. It adopts advanced splicing technology and can effectively splice small materials of various shapes and sizes to improve material utilization.
Machine parameter
| Model | JDPB130-8H | JDPB260-4V |
| Veneer thickness | 1.0-4.0mm | 1.0-4.0mm |
| Feeding width | 968-1270 mm | 2000-2600mm |
| Cutting veneer length | 1220-2560 mm (4ft, 5ft, 6ft, 7ft, 8ft) | 1300mm(4 feet) |
| Length of knife | 1400mm | 2700mm |
| Feeding speed | 0-60m/min | 0-60m/min |
| Coveyor power | 3kw(servo motor) | 3kw(servo motor) |
| Front cutting power | 3kw(servo motor) | 4kw(servo motor) |
| Jointing power | 3kw(servo motor) | 3kw(servo motor) |
| Rear cutter power | 3kw | 4kw |
| Lifting power | 3kw | 4kw |
| Conveyor to stacker power | 3*1.5kw | 3*3kw |
| Stacking power | 1.5kw | 3kw |
| Cooling power | 1.5HP | 1.5HP |
| Heating power | 5.7kw | 7.5kw |
| Green inverter | 10kw inverter | 10kw inverter |
| Area occupied (W x L) | 2300X13000mm | 5200*9500mm |
| Main machine(WXL) | 3800X2300mm | 3800*5200mm |
| product capacity | 200-350pcs/hour (4x8ft) | 300-400pcs/hour (8x4ft) |
| Weight | 6500kgs | 8500kgs |
1.High-quality after-sales service team: With a professional after-sales service team, it can respond to customer needs in a timely manner and provide fast and efficient after-sales service.
2. Continuous technological innovation: The company continues to invest in R&D resources to innovate and upgrade the panel machine to maintain the leading position of the equipment.
3. Safety protection door: The safety protection door is made of transparent material, which is convenient for operators to observe the operation of the equipment and effectively prevent accidents.
Company Profile
Shandong kindle Machinery manufacture limited company located in Linyi national Economic and Technological Development Zone, it was founded in 1998 which specialized in research and development of veneer peeling machine for 26 years. It have obtained more than 60 national patents , it covers more than 30000 area and have 15 R&D technician and 30 professional engineer for installation and machine maintaining.
FAQ:
Q1: Are you machine manufacturer or a trading company?
A1: We are a factory which is special for producing veneer peeling machine and plywood machine,Jinduo company own 2 workshops and 1 trading company.
Q2: What is the delivery time?
A2: In generally speaking , the complete veneer product line need about 30 days to manufacture after getting deposit.
Q3: What is the maintenance period and what kind of after sale service can you supply?
A3: The machinery part maintenance will be sustained in one year after installation and we have abroad warehouse and office for spare part in brazil and Russia, our engineer will arrive your factory to maintain the machine at first time if have problem.
Q4: What is the payment term?
A4: We can accept TT with 30% deposit and 70% balance against loading bill or 100% irrevocable L/C at sight.
Q5: Can we visit your factory?
A6: Jinduo company is next to linyi airport, we can pick you up from airport to our factory at any time, welcome to visit us.
