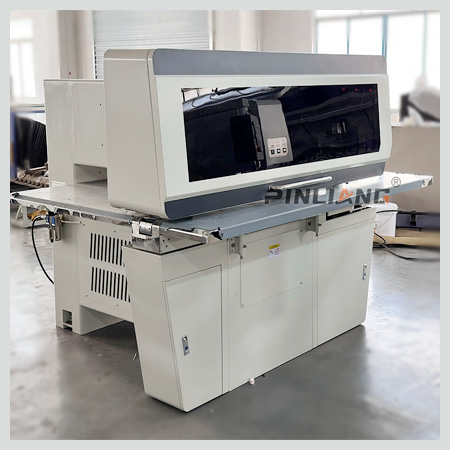

Automatic horizontal wireless veneer splicer

The Wireless horizontal veneer splicer is a game - changer in the woodworking industry. Designed to horizontally join veneer strips, it processes veneers with a thickness of 0.3 - 3 mm.

Maximum veneer length:	2800mm
Sewing Thickness:	0.3-1.8mm
splicing Speed:	10-30m/min
Availability:



SEND INQUIRY

Model:
PFJ-2800W
Brand:
KINDLE

wireless veneer splicer wireless veneer splicing machine horizontal veneer splicer

Product Description

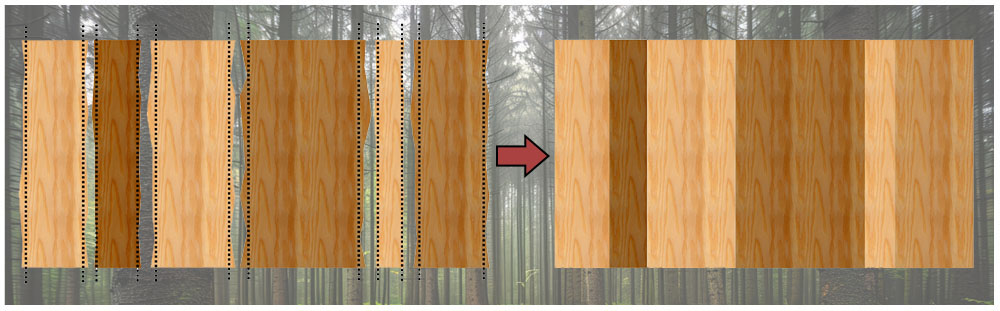

veneer composer information product description

WIRELESS HORIZONTAL VENEER SPLICER

It adopts an advanced no - wire jointing method. Instead of glue wires, it applies a small amount of glue on veneer edges. Through precise pressing and heating, it firmly splices veneers, minimizing glue marks on the surface. This splicer can handle veneers up to 2800 mm in length and 1300 mm in width. With a working efficiency of 15 - 30 times per minute, it offers high - speed and high - quality splicing, suitable for large - scale veneer processing projects.

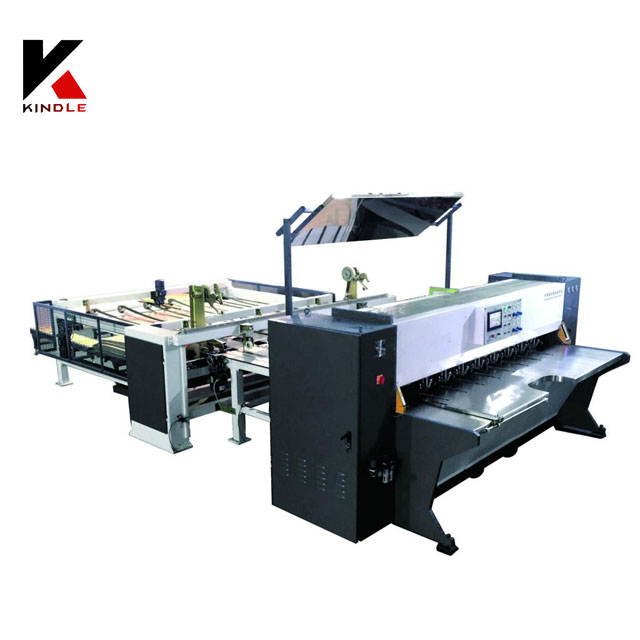

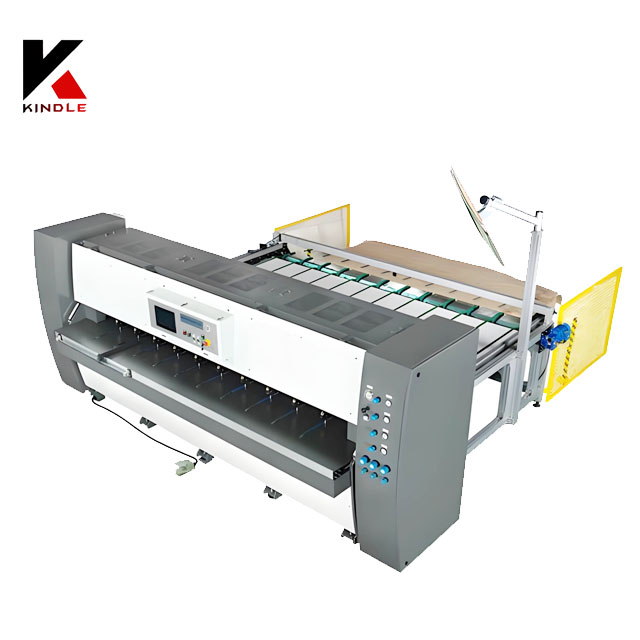

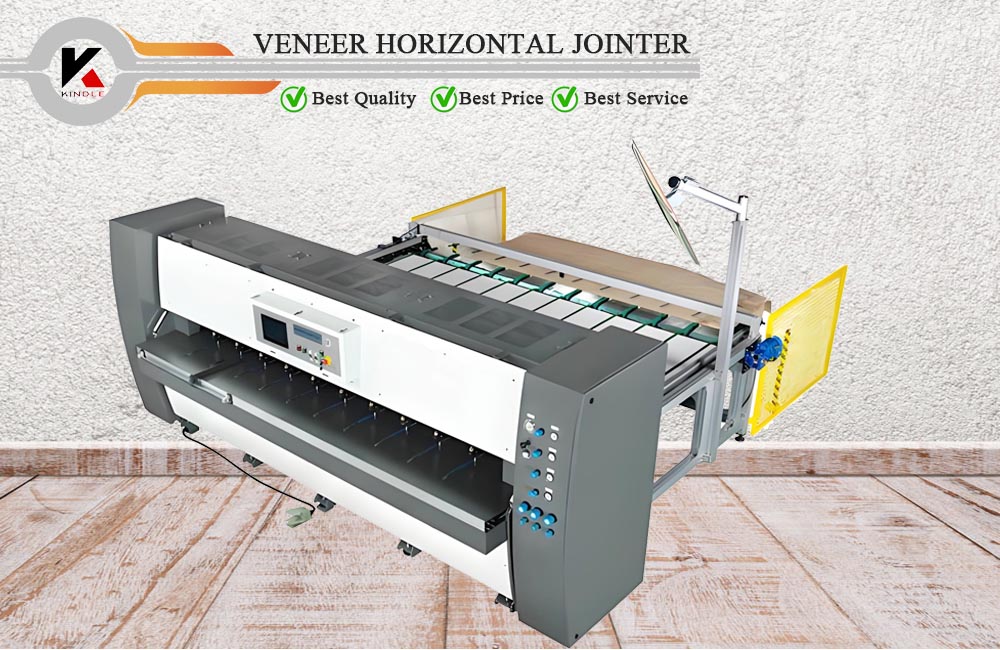

veneer horizontal jointer main picture

Machine parameter

Model	PFJ-1500W	PFJ-2800W	PFJ-3200W
Total power	15.5kw	23.5kw	27.5kw
Oil supply capacity	180L (Hydraulic oil）/33CST-50°C
Compressed air	4bar
Average splicing speed	15-30m/min	15-30m/min	15-30m/min
Length of spliced veneer	350-1500mm	350-2800mm	350-3400mm
Width of spliced veneer	70-620mm	70-620mm	70-620mm
Thickness of spliced veneer	0.3-1.8mm	0.3-1.8mm	0.3-1.8mm
Overall dimensions	320021501180mm	434021501180mm	495021501180mm
Overall weight	8900kg	11200kg	152000kg

VENEER PEELER

product advantage

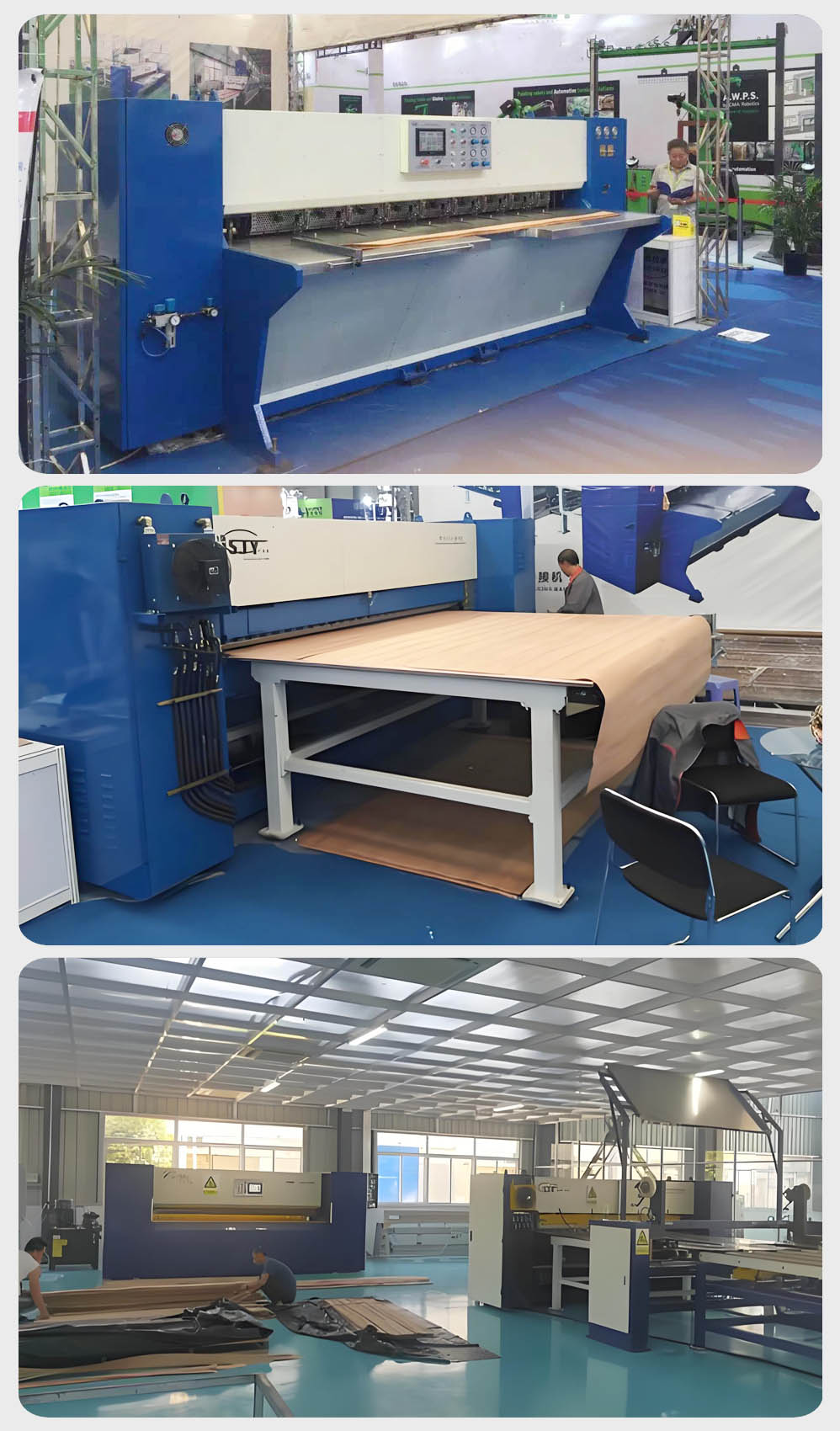

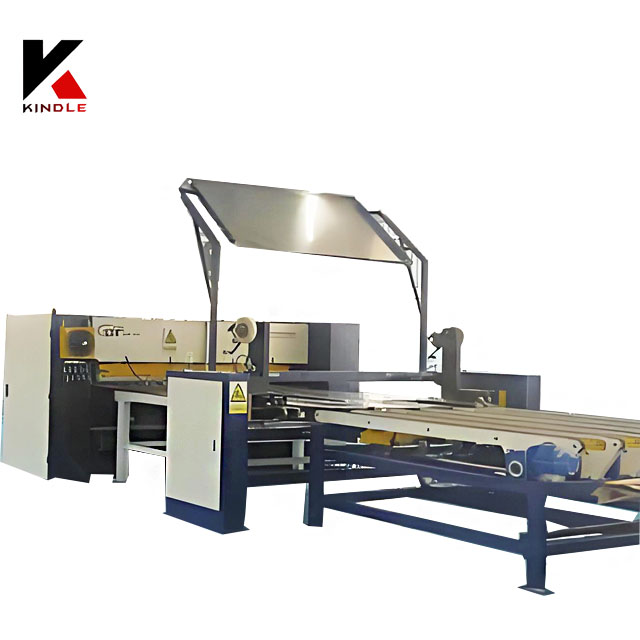

wireless horizontal veneer spling machine

1.Width can be continuously joining, size can be customized.

2. Production is more efficient and faster, heating only takes 30-60 seconds.
3. Numerical control adjustment of pressure and positioning, high accuracy, flat surface.
4. Can be optional automatic sawing function.
5. Support remote maintenance and system upgrade

MACHINE DETAILS

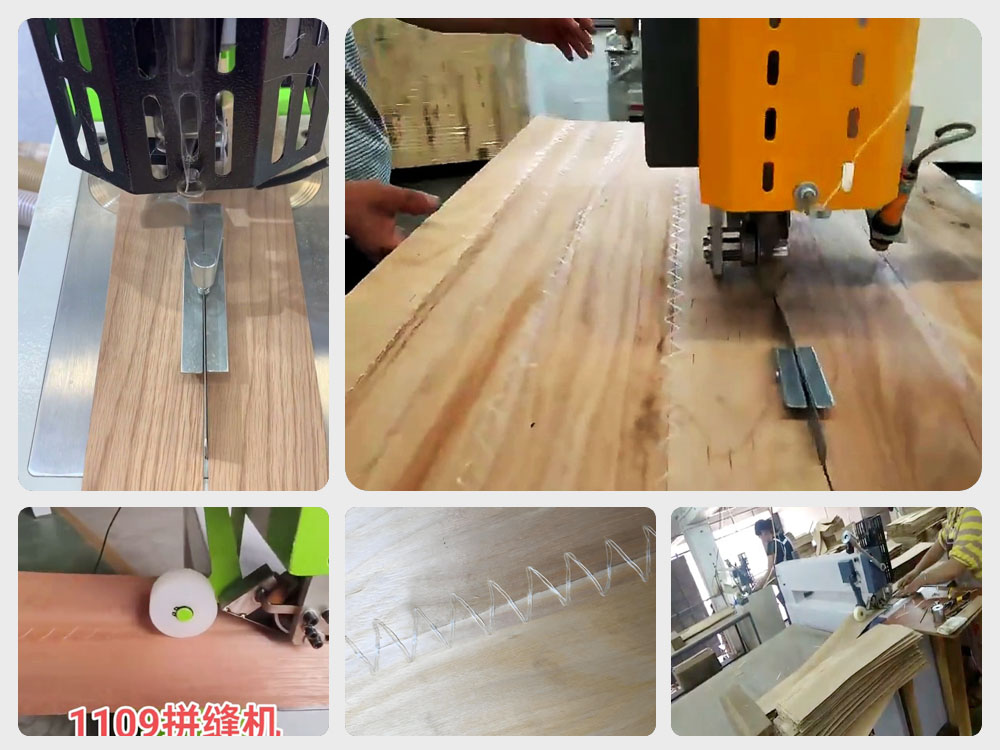

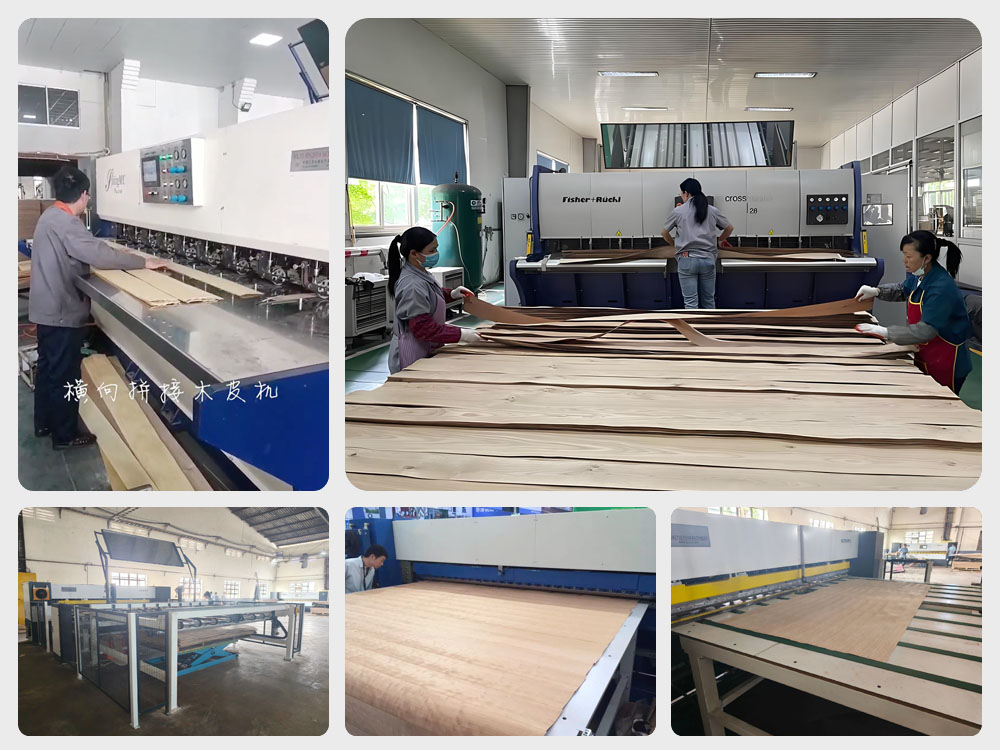

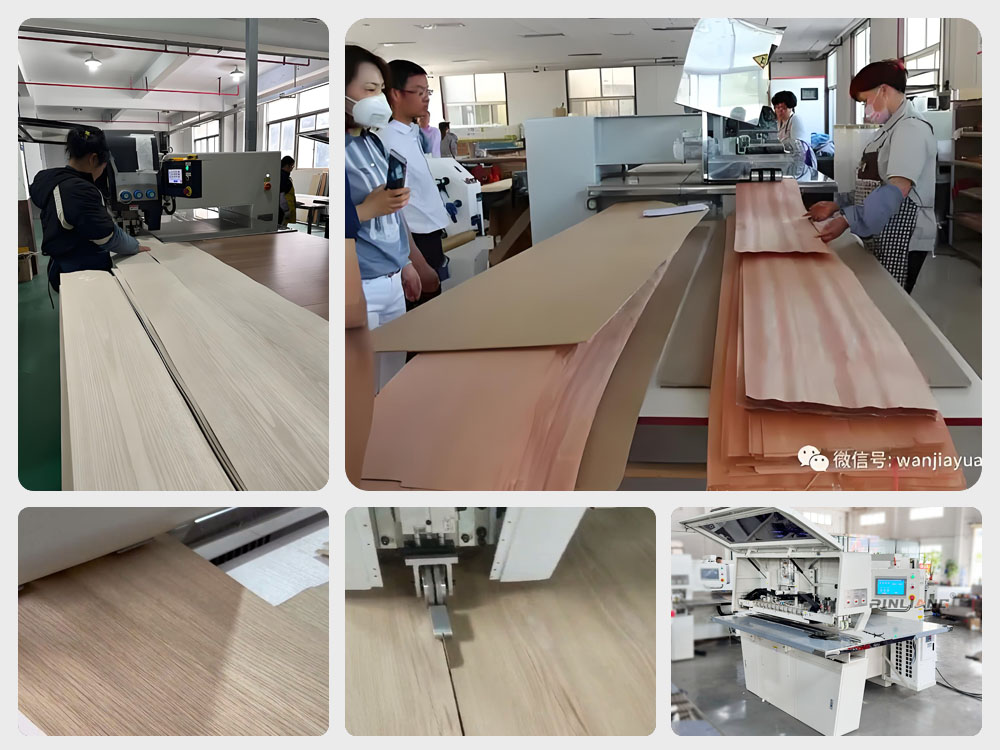

automatic wireless veneer jointer veneer jointer working picture

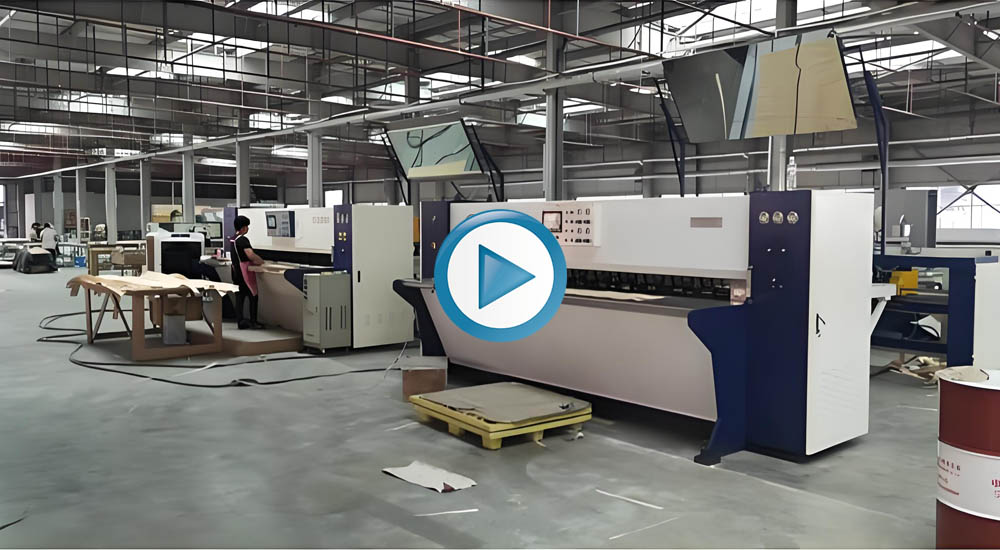

wireless veneer jointer working picture

Our veneer splicing machine and plywood machine are exported to many countries like Malaysia,Indonesia, Russia, Turkey ,Brazil, Argentina, Paraguay and so on.

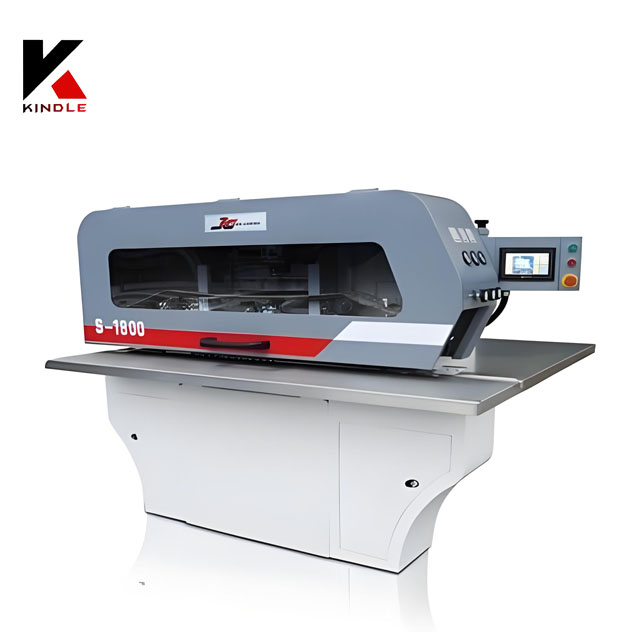

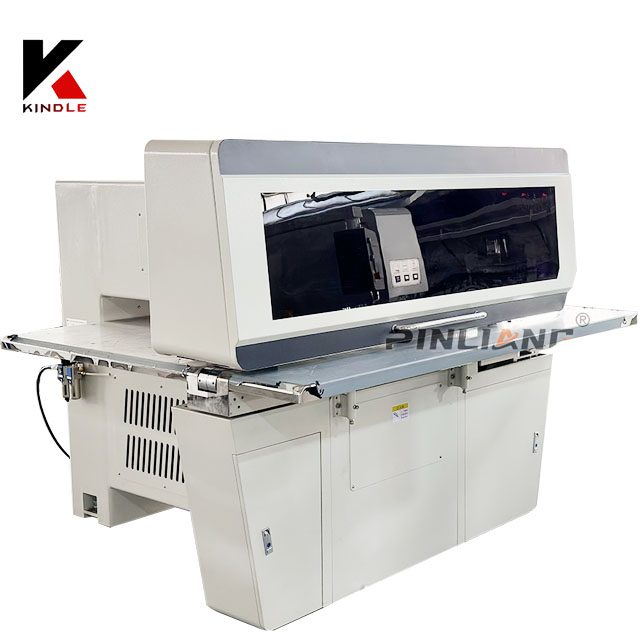

WIRELESS VERTICAL VENEER SPLICER

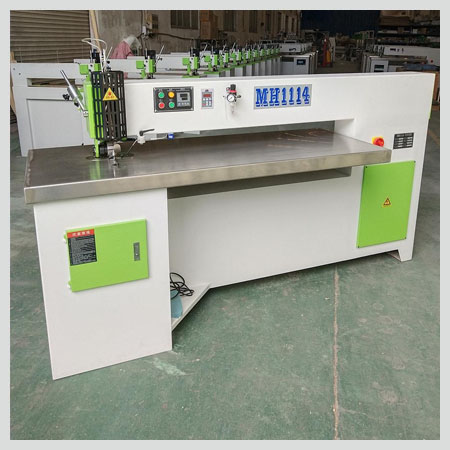

WIRE VERTICAL VENEER SPLICER
