JDPB130H-260
KINDLE

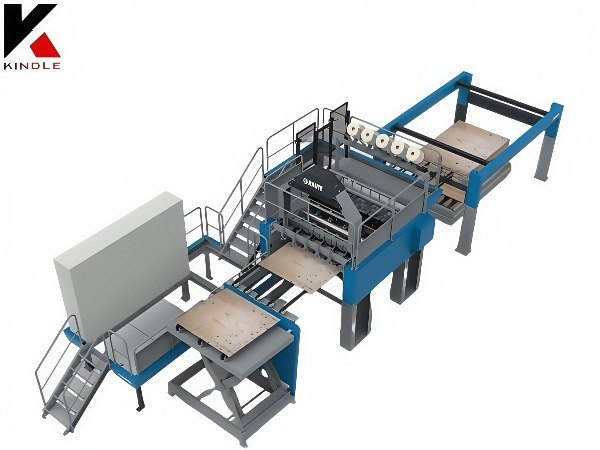

The panelizing machine suitable for plywood manufacturing uses high-strength materials to manufacture the fuselage. The structure is stable and durable. It can withstand long-term and high-intensity workloads and adapt to complex production environments.
Machine parameter
| Model | JDPB130-8H | JDPB260-4V |
| Veneer thickness | 1.0-4.0mm | 1.0-4.0mm |
| Feeding width | 968-1270 mm | 2000-2600mm |
| Cutting veneer length | 1220-2560 mm (4ft, 5ft, 6ft, 7ft, 8ft) | 1300mm(4 feet) |
| Length of knife | 1400mm | 2700mm |
| Feeding speed | 0-60m/min | 0-60m/min |
| Coveyor power | 3kw(servo motor) | 3kw(servo motor) |
| Front cutting power | 3kw(servo motor) | 4kw(servo motor) |
| Jointing power | 3kw(servo motor) | 3kw(servo motor) |
| Rear cutter power | 3kw | 4kw |
| Lifting power | 3kw | 4kw |
| Conveyor to stacker power | 3*1.5kw | 3*3kw |
| Stacking power | 1.5kw | 3kw |
| Cooling power | 1.5HP | 1.5HP |
| Heating power | 5.7kw | 7.5kw |
| Green inverter | 10kw inverter | 10kw inverter |
| Area occupied (W x L) | 2300X13000mm | 5200*9500mm |
| Main machine(WXL) | 3800X2300mm | 3800*5200mm |
| product capacity | 200-350pcs/hour (4x8ft) | 300-400pcs/hour (8x4ft) |
| Weight | 6500kgs | 8500kgs |
1. Durable conveyor belt: The conveyor belt is made of wear-resistant and aging-resistant materials, with a long service life, reducing the frequency of replacing the conveyor belt.
2. Advanced photoelectric detection technology: The use of advanced photoelectric detection technology can accurately detect the position and state of the board and realize automatic control.
3. Good grounding system: The equipment has a good grounding system to ensure electrical safety and prevent static electricity accumulation.
Company Profile
Shandong kindle Machinery manufacture limited company located in Linyi national Economic and Technological Development Zone, it was founded in 1998 which specialized in research and development of veneer peeling machine for 26 years. It have obtained more than 60 national patents , it covers more than 30000 area and have 15 R&D technician and 30 professional engineer for installation and machine maintaining.
FAQ:
Q1: Are you machine manufacturer or a trading company?
A1: We are a factory which is special for producing veneer peeling machine and plywood machine,Jinduo company own 2 workshops and 1 trading company.
Q2: What is the delivery time?
A2: In generally speaking , the complete veneer product line need about 30 days to manufacture after getting deposit.
Q3: What is the maintenance period and what kind of after sale service can you supply?
A3: The machinery part maintenance will be sustained in one year after installation and we have abroad warehouse and office for spare part in brazil and Russia, our engineer will arrive your factory to maintain the machine at first time if have problem.
Q4: What is the payment term?
A4: We can accept TT with 30% deposit and 70% balance against loading bill or 100% irrevocable L/C at sight.
Q5: Can we visit your factory?
A6: Jinduo company is next to linyi airport, we can pick you up from airport to our factory at any time, welcome to visit us.
