| veneer width: | |
|---|---|
| splicing size: | |
| veneer thickness: | |
| product capacity: | |

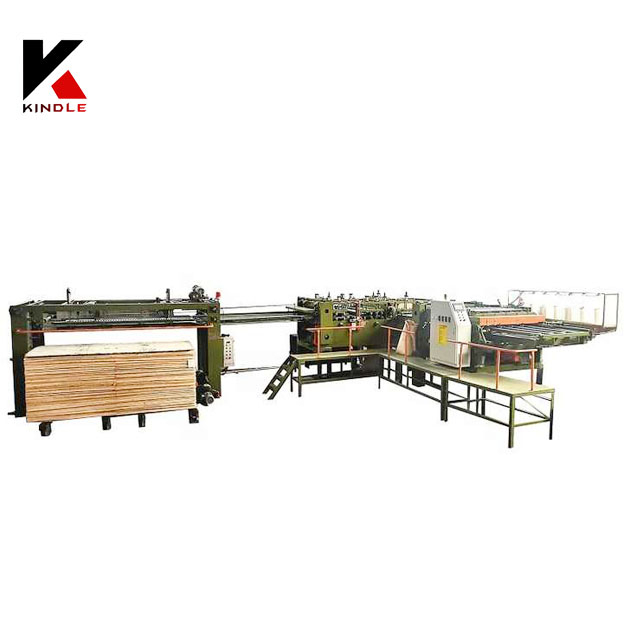

JDCJ130L-260
KINDLE
The machine can automatically cut veneer edges, join them, and stack the finished plywood. It boosts production efficiency and reduces labor costs. With features like pneumatic systems and advanced control mechanisms, it's an ideal choice for plywood manufacturers aiming to enhance product quality and production speed. The machine is particularly suitable for handling thin veneers, which are often more delicate and require precise handling. Versatility: Being able to handle thin veneers makes the composer versatile and useful for a variety of applications, including fine furniture and decorative surfaces. Hole Detection and Cutting: Quality Control: Integrated sensors detect holes and imperfections in the veneer, ensuring that only high-quality material is used. Automatic Cutting: The automatic cutting feature removes detected imperfections, ensuring the final product is free from defects and maintains a high quality standard.
Machine parameter
| Model | JDCJ130L-260 |
| Working veneer width | 968-1270 mm |
| Cutting veneer length | 1220-2560 mm |
| Working veneer thickness | 1.2-6 mm |
| Length of knife | 1400mm |
| Feeding speed | 0-60m/min |
| Coveyor power | 3kw(servo motor) |
| Front cutting power | 3kw(servo motor) |
| Jointing power | 3kw(servo motor) |
| Rear cutter power | 3kw |
| Lifting power | 3kw |
| Conveyor to stacker power | 3*1.5kw |
| Stacking power | 1.5kw |
| Cooling power | 1.5HP |
| Heating power | 5.7kw |
| Green inverter | 10kw inverter |
| Area occupied (W x L) | 2300X13000mm |
| Main machine(WXL) | 3800X2300mm |
| product capacity | 200-350pcs/hour (4x8ft) |
| Weight | 6500kgs |
The veneer composer structure is simple and easy to install and maintain.high configuration for long using life.
The pneumatic part, electrical part and operation part adopt world advanced famous brand components such as German Festo, Danfoss, Taiwan Taida, Japanese Mitsubishi and other international to level brands.
Special technology to solve the veneer jam problem,can reuse the waste veneer for save cost.
High automation, the whole process needs only one Labrous.
The guide is heat treated and then re-polished by the grinder to make it hard and wear-resistant and ensure a straighter board.
