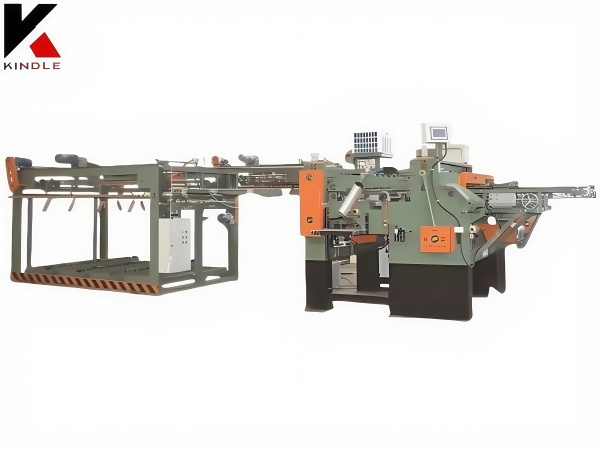

Plywood Veneer Edge Jointer With Teeth Joint

       The plywood splicing machine is used in the plywood industry. It has a balanced feeding device, which can make the board evenly stressed during splicing, avoid problems such as loose splicing or board deformation, and ensure stable splicing effect.

MACHINE PARAMETER

1. Multiple splicing modes: It supports multiple splicing modes, such as horizontal splicing, vertical splicing, oblique splicing, etc., to meet different production process requirements.

2. High-quality electrical components: The electrical system adopts high-quality electrical components of well-known brands, which ensures the stability of the electrical performance of the equipment and reduces the occurrence of electrical faults.

3. Good lubrication system: Each moving part is equipped with a good lubrication system, which reduces wear and improves the operating efficiency and service life of the equipment.

VENEER EDGE TRIMMING DEVICE

      Conveying speed of the machine is adjustable from 22m / min. to 33m / min. that will increase the production larger than the traditional the edge Clipping and waste veneer counting are controlled by the precision rotary encoder and high-speed counter in order to clip the least waste veneer without any waste of core veneer. the minimum clipping width is 75mm.

SERVO MOTOR

       Using 06/units of AC servomotor replace clutch brake drive can be more precision composing veneer edge for jointing perfectly. Driven Motor transmission by direct connection, Improve chain broke connection or Caused the loose.





NEW SYNCHRONOUS DEVICE SYSTEM

    Distinctive pneumatic pressure following actuate synchronous jointing veneer, Good performance to composing wavy veneer and available working minimum thickness to 0.9mm and without overlap.

AUTOMATIC STACKER

       Apply a linker to connect with the air conveyor, which can directly inline with filling machine, the speed should be matched with composing head and promise the veneer after composing is completed, can not damage the veneer and make it crack.

AUTOMATIC CONTROL SYSTEM

    Operation system is controlled by the PLC system, which is much easier to operate. the front and rear jointing are synchronized that makes the veneer jointed very precisely in order to prevent overlapping.

AUTOMATIC FEEDING SYSTEM

    The one operator working plc-type full veneer composer (veneer core builder) is specialized in cutting and jointing the monoplane veneer form 0.9mm to 4.5mm and simple operating by one worker, which from infeed conveyor, electronic veneer thickness detector, cutting, jointing by hot melt glue to desired length 4'×8' or 3'×6' and loading to automatic stacker.

    Our veneer composer and plywood machine are exported to many countries like Malaysia,Indonesia, Russia, Turkey ,Brazil, Argentina, Paraguay and so on.

---

Spindleless peeler

Card peeling machine

Veneer dryer

Hot press

Glue spreader

Plywood trimming saw

Automatic putty line

Calibrating machine

Company Profile

    Shandong kindle Machinery manufacture limited company located in Linyi national Economic and Technological Development Zone, it was founded in 1998 which specialized in research and development of veneer peeling machine for 26 years. It have obtained more than 60 national patents , it covers more than 30000 area and have 15 R&D technician and 30 professional engineer for installation and machine maintaining.

FAQ:

Q1: Are you machine manufacturer or a trading company?

A1: We are a factory which is special for producing veneer peeling machine and plywood machine,Jinduo company own 2 workshops and 1 trading company.

Q2: What is the delivery time?

A2: In generally speaking , the complete veneer product line need about 30 days to manufacture after getting deposit.

Q3: What is the maintenance period and what kind of after sale service can you supply?

A3: The machinery part maintenance will be sustained in one year after installation and we have abroad warehouse and office for spare part in brazil and Russia, our engineer will arrive your factory to maintain the machine at first time if have problem.

Q4: What is the payment term?

A4: We can accept TT with 30% deposit and 70% balance against loading bill or 100% irrevocable L/C at sight.

Q5: Can we visit your factory?

A6: Jinduo company is next to linyi airport, we can pick you up from airport to our factory at any time, welcome to visit us.
