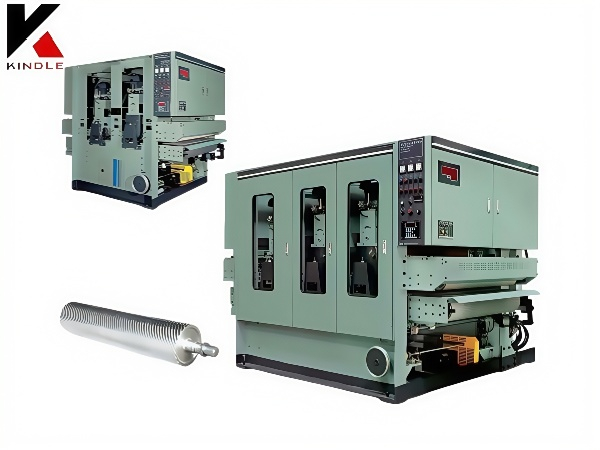

The Automatic Plywood Sander for Calibrating Plywood Fixed Thickness is designed for plywood thickness calibration and surface sanding in plywood production lines. It helps improve panel flatness, control thickness accuracy, and create a smoother plywood surface before coating, laminating, or further processing.This plywood sanding machine is suitable for fixed thickness sanding of plywood, wood panels, and engineered boards. With stable feeding and wide belt sanding performance, it is a practical choice for plywood factories that need consistent panel quality and efficient production.
KINDLE
Sanding Machine
Sanding machines for plywood manufacturing are indispensable key equipment in the production process of plywood. They are mainly used to finely polish the surface of plywood, remove surface defects, improve the flatness and smoothness of the surface of plywood, and lay a good foundation for subsequent coating, veneer and other processes.
Machine parameter
Model | ZDR-RP630 | ZDR-RP1000 | ZDR-RP1300 |
Max working width | 630mm | 1000mm | 1300mm |
Material thickness | 2-120mm | 2.5-120mm(option 2.5-160mm) | 2-120mm(option 2.5-160mm) |
Min. Working length | 350mm | 350mm | 350mm |
Feeding speed | 6-30m/min | 6-30m/min | 6-30m/min |
1# sanding belt speed | 18m/min | 18m/min | 18m/min |
2# sanding belt speed | 14m/min | 12m/min | 12m/min |
Size of sanding belt | 650*1900mm | 1020*2020mm | 1320*2020mm |
Main motor power | 11kw,7.5kw | 15kw,11kw | 37kw,22kw |
Total power | 20.74kw | 30kw | 56.74kw |
Working air pressure | 0.5mpa | 0.55mpa | 0.55mpa |
Volume of dust collecting | 5000m3/h | 5500m³/h | 5000m³/h |
Speed of dust collecting | 25-30m/s | 25-30m/s | 25-30m/s |
Overall dimension(L*W*H) | 1700*1100*2050mm | 1700*1400*2050mm | 2750*2200*2050mm |
Weight | 1300kg | 2000kg | 3200kg |
1. The plywood sander is powerful, and the high-speed sanding belt is like a sharp blade for grinding. It can process a large amount of plywood per hour, and the production efficiency is exponentially improved, which can easily meet the large-scale production needs of enterprises.
2. The continuous sanding process is exquisite. The board is like being endowed with magic, and it shuttles in the sanding area in an orderly manner, seamlessly connecting the whole process, eliminating pauses and waiting, and greatly improving the overall production efficiency.
