This production line has been treated with anti-corrosion: key components are chrome-plated or spray-coated to adapt to high-humidity production environments.
KINDLE

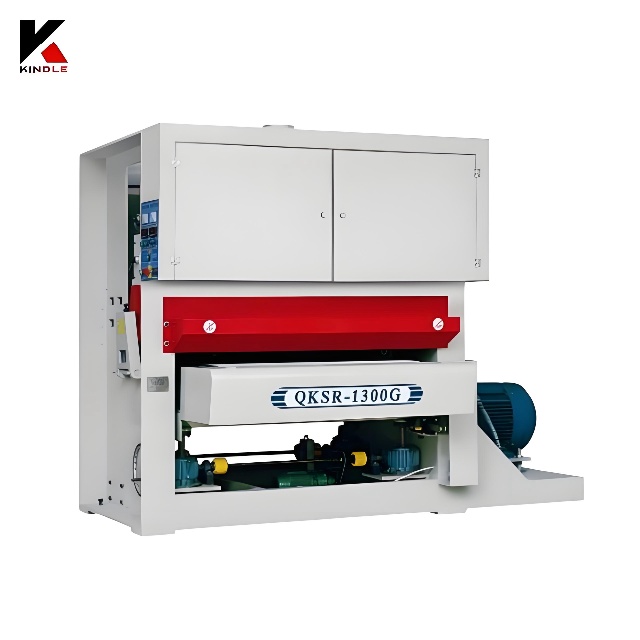

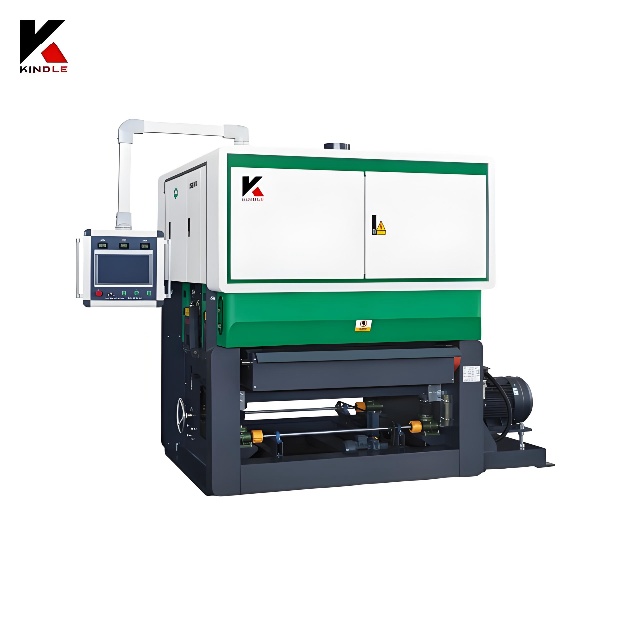

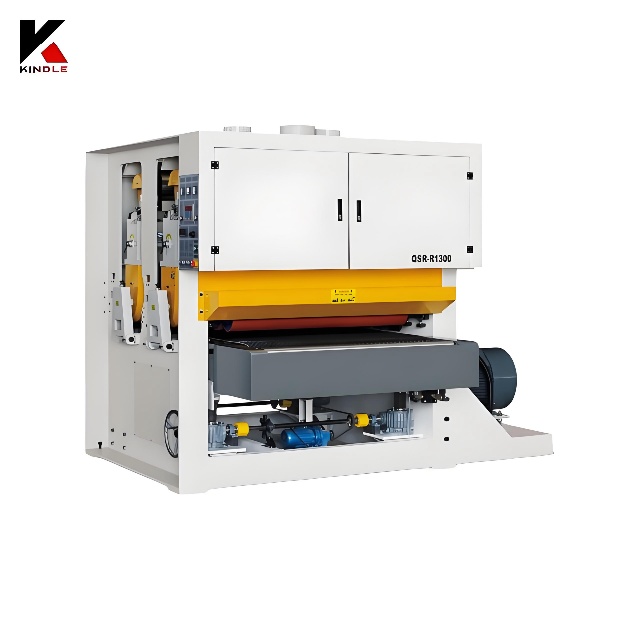

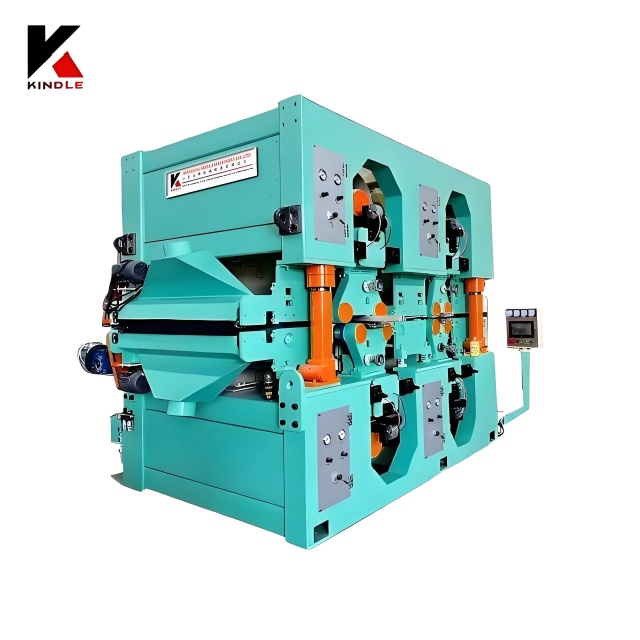

Sanding Machine
The intelligent sanding machine can monitor the wear degree of the sanding belt, the operating status of the equipment, and the sanding quality of the plywood in real time through sensors, and transmit these data to the control system. The control system automatically adjusts the sanding parameters such as sanding belt speed, feed speed, sanding pressure, etc. according to the data analysis results to ensure that the equipment is always in the best operating state and ensure stable product quality.
Machine parameter
Model | ZDR-RP630 | ZDR-RP1000 | ZDR-RP1300 |
Max working width | 630mm | 1000mm | 1300mm |
Material thickness | 2-120mm | 2.5-120mm(option 2.5-160mm) | 2-120mm(option 2.5-160mm) |
Min. Working length | 350mm | 350mm | 350mm |
Feeding speed | 6-30m/min | 6-30m/min | 6-30m/min |
1# sanding belt speed | 18m/min | 18m/min | 18m/min |
2# sanding belt speed | 14m/min | 12m/min | 12m/min |
Size of sanding belt | 650*1900mm | 1020*2020mm | 1320*2020mm |
Main motor power | 11kw,7.5kw | 15kw,11kw | 37kw,22kw |
Total power | 20.74kw | 30kw | 56.74kw |
Working air pressure | 0.5mpa | 0.55mpa | 0.55mpa |
Volume of dust collecting | 5000m3/h | 5500m³/h | 5000m³/h |
Speed of dust collecting | 25-30m/s | 25-30m/s | 25-30m/s |
Overall dimension(L*W*H) | 1700*1100*2050mm | 1700*1400*2050mm | 2750*2200*2050mm |
Weight | 1300kg | 2000kg | 3200kg |
1. The design of the plywood sanding machine fully considers safety and is equipped with multiple safety protection devices to ensure the safety of operators.
2. The maintenance cost of the equipment is low, and the price of wearing parts is reasonable and easy to obtain, which reduces the operating cost of the enterprise.
