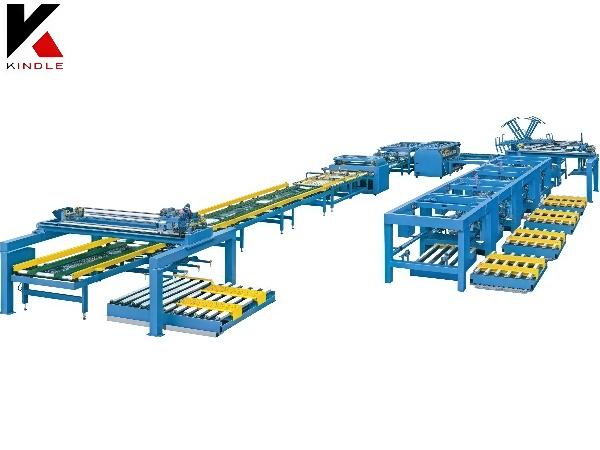

Our Precision Sanding Machine Line is designed for high-volume woodworking production, ensuring flawless surface finishing for furniture, panels, and cabinetry.
KINDLE
The sanding system of the sanding machine for plywood manufacturing has been carefully designed, the movement trajectory of the sanding belt or sanding disc is precise, and the contact with the plywood surface is uniform, which can effectively avoid defects such as sand marks and ripples during the sanding process, and ensure that the surface of the plywood after sanding is smooth and fine with good texture.
Machine parameter
Model | ZDR-RP630 | ZDR-RP1000 | ZDR-RP1300 |
Max working width | 630mm | 1000mm | 1300mm |
Material thickness | 2-120mm | 2.5-120mm(option 2.5-160mm) | 2-120mm(option 2.5-160mm) |
Min. Working length | 350mm | 350mm | 350mm |
Feeding speed | 6-30m/min | 6-30m/min | 6-30m/min |
1# sanding belt speed | 18m/min | 18m/min | 18m/min |
2# sanding belt speed | 14m/min | 12m/min | 12m/min |
Size of sanding belt | 650*1900mm | 1020*2020mm | 1320*2020mm |
Main motor power | 11kw,7.5kw | 15kw,11kw | 37kw,22kw |
Total power | 20.74kw | 30kw | 56.74kw |
Working air pressure | 0.5mpa | 0.55mpa | 0.55mpa |
Volume of dust collecting | 5000m3/h | 5500m³/h | 5000m³/h |
Speed of dust collecting | 25-30m/s | 25-30m/s | 25-30m/s |
Overall dimension(L*W*H) | 1700*1100*2050mm | 1700*1400*2050mm | 2750*2200*2050mm |
Weight | 1300kg | 2000kg | 3200kg |
1. The appearance design of the plywood sanding machine is simple and generous, easy to clean, and keep the equipment neat and beautiful.
2. The sanding effect of the equipment is uniform and consistent, and the sanding quality of plywood in different batches is stable, ensuring product quality.
