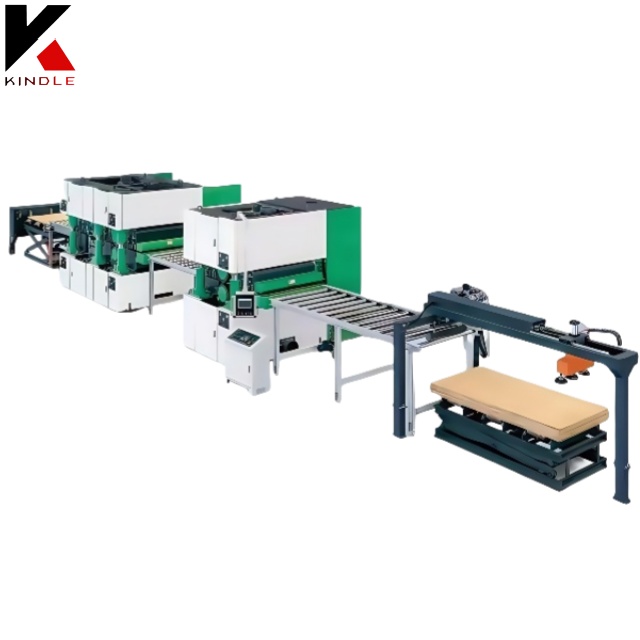

Customizable sanding line solutions

This sanding line adopts a modular design and can be freely combined with different sanding units, conveying systems and dust removal devices, providing flexible and customized professional solutions for processing various types of panels.

Availability:



SEND INQUIRY

Brand:
KINDLE

customizable sanding line sanding line solutions sanding line

Product Description

页眉1

Customized Sanding Machine

The modular sanding line offers highly flexible customization, allowing you to freely combine various functional units to meet diverse production needs. The core system features a dual-frame sanding unit, with an optional third sanding unit for three-stage polishing or custom sanding heads for custom workpieces. Conveyor systems offer a variety of options: standard drum, vacuum (suitable for thin plates), or heavy-duty chain (suitable for thick plates), with customizable widths from 600 to 1600 mm. Dust removal options include stand-alone dust removal, centralized ducted dust removal, or a safety system with spark detection. The control system supports pre-set process parameters, allowing for quick switching between different processing modes.

海报2

Machine parameter

Model	ZDR-RP630	ZDR-RP1000	ZDR-RP1300
Max working width	630mm	1000mm	1300mm
Material thickness	2-120mm	2.5-120mm(option 2.5-160mm)	2-120mm(option 2.5-160mm)
Min. Working length	350mm	350mm	350mm
Feeding speed	6-30m/min	6-30m/min	6-30m/min
1# sanding belt speed	18m/min	18m/min	18m/min
2# sanding belt speed	14m/min	12m/min	12m/min
Size of sanding belt	650*1900mm	1020*2020mm	1320*2020mm
Main motor power	11kw,7.5kw	15kw,11kw	37kw,22kw
Total power	20.74kw	30kw	56.74kw
Working air pressure	0.5mpa	0.55mpa	0.55mpa
Volume of dust collecting	5000m3/h	5500m³/h	5000m³/h
Speed of dust collecting	25-30m/s	25-30m/s	25-30m/s
Overall dimension(LWH)	170011002050mm	170014002050mm	275022002050mm
Weight	1300kg	2000kg	3200kg

VENEER PEELER

product advantage

定厚工厂图

1. The body structure of the plywood sanding machine is stable, can withstand high-intensity production operations, and is durable.

2. The display of the equipment operation interface is clear and intuitive, and various parameters are clear at a glance, which is convenient for operators to view and adjust.

3. The dust collection system of the sanding machine adopts a high-efficiency filter to effectively filter dust and protect the environment.

MACHINE DETAILS

number

Stable body

The machine is constructed using high - quality welded steel, where the welding process is carried out by experienced technicians with advanced welding equipment. This ensures that the joints are not only strong but also uniform, providing a solid foundation for the overall structure.

NUMBER-2

Imported conveyor belt, good reliability, durability.

This imported conveyor belt stands out for its outstanding reliability. It has been engineered using state - of - the - art technology and undergoes rigorous quality control procedures during production.

NUMBER-3

Body stable, durable without deformation

The series uses the beam barrel and the beam seat structure, good stability, easy maintenance. Belt tension cylinder adopts cast iron processing, tensile strength is great, good stability. Conveyor belt adjusting cylinder adopts 63x20 cylinder, large power, and good stability. Active roll stigmas are bold, and after quenching, ensure the stability and durability of the driving roller.

NUMBER-4

Well-known electrical components

Electric appliance use CHINT & Delta, Stable and durable. Hailing Modular Inverter, Chint Contactor, Chint relay, Delixi transformer, Delixi phase sequence protector, LED lighting. WORKING SHOWING

working

Our sanding machine and plywood machine are exported to many countries like Malaysia,Indonesia, Russia, Turkey ,Brazil, Argentina, Paraguay and so on.

Spindleless peeler

Card peeling machine

Veneer dryer

Hot press

Glue spreader

Plywood trimming saw

Automatic putty line

Calibrating machine

Company Profile

workshop 2_副本

workshop 2

Shandong kindle Machinery manufacture limited company located in Linyi national Economic and Technological Development Zone, it was founded in 1998 which specialized in research and development of veneer peeling machine for 26 years. It have obtained more than 60 national patents , it covers more than 30000 area and have 15 R&D technician and 30 professional engineer for installation and machine maintaining.

workshop 1

We are committed to provide complete solutions for veneer

peeling line, plywood making plant,LVL,block board, PB,OSB production Line etc. Main equipment include: Log cutting saw, log debarker , spindle peeling lathe and spindleless wood veneer peeling machine,veneer dryer, glue spreader,pre-press, hot press, veneer commposer,plywood saw, sanding machine, boiler, and related plant accessories and materials, etc.
