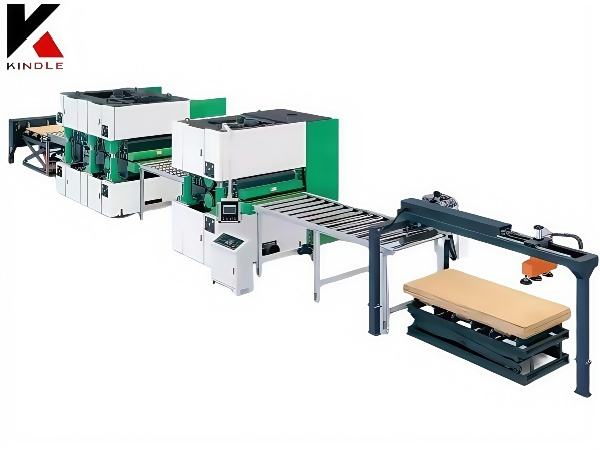

This production line is equipped with a multi-roller sanding configuration. The machine can be equipped with multiple sanding rollers to achieve integrated processing of coarse sand + fine sand.
KINDLE
As the market's requirements for plywood quality and output continue to increase, the technical level and application scope of sanders will continue to expand. Sanders with advanced technology and high performance will become important equipment for enterprises to enhance their competitiveness and lead the plywood manufacturing industry to a higher level.
Machine parameter
Model | ZDR-RP630 | ZDR-RP1000 | ZDR-RP1300 |
Max working width | 630mm | 1000mm | 1300mm |
Material thickness | 2-120mm | 2.5-120mm(option 2.5-160mm) | 2-120mm(option 2.5-160mm) |
Min. Working length | 350mm | 350mm | 350mm |
Feeding speed | 6-30m/min | 6-30m/min | 6-30m/min |
1# sanding belt speed | 18m/min | 18m/min | 18m/min |
2# sanding belt speed | 14m/min | 12m/min | 12m/min |
Size of sanding belt | 650*1900mm | 1020*2020mm | 1320*2020mm |
Main motor power | 11kw,7.5kw | 15kw,11kw | 37kw,22kw |
Total power | 20.74kw | 30kw | 56.74kw |
Working air pressure | 0.5mpa | 0.55mpa | 0.55mpa |
Volume of dust collecting | 5000m3/h | 5500m³/h | 5000m³/h |
Speed of dust collecting | 25-30m/s | 25-30m/s | 25-30m/s |
Overall dimension(L*W*H) | 1700*1100*2050mm | 1700*1400*2050mm | 2750*2200*2050mm |
Weight | 1300kg | 2000kg | 3200kg |
1. The sanding machine can automatically adjust the sanding force according to the hardness of the plywood to ensure that the sanding quality is not affected by the material.
2. The control system of the equipment has a fault self-diagnosis function, which can quickly determine the type of fault and provide solutions.
