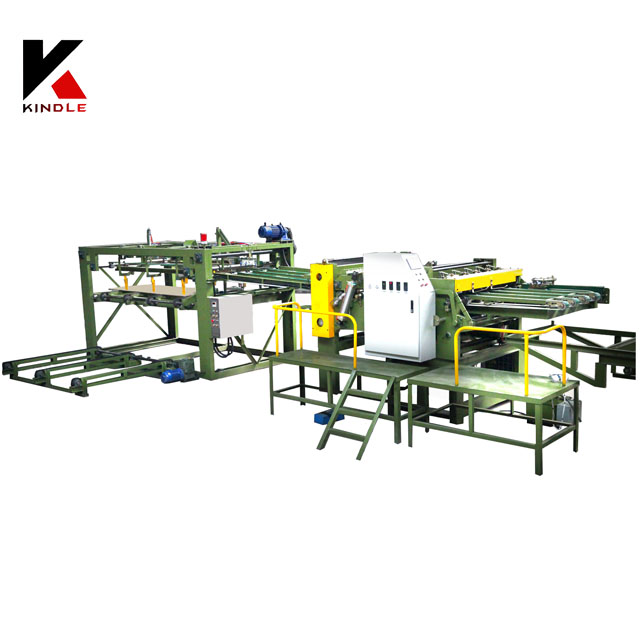

JDPB130H-260
KINDLE

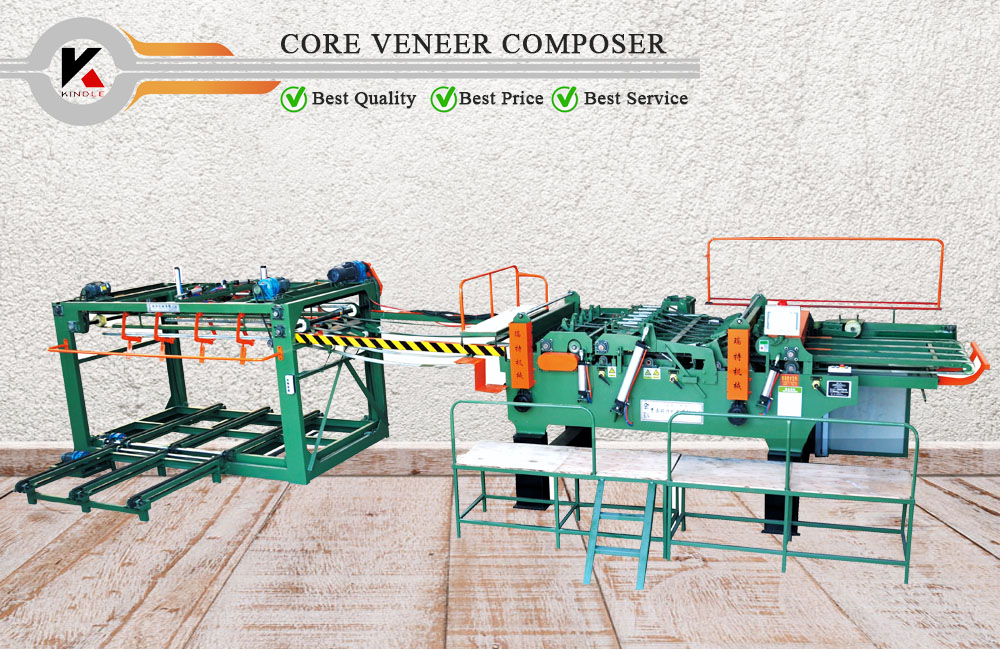

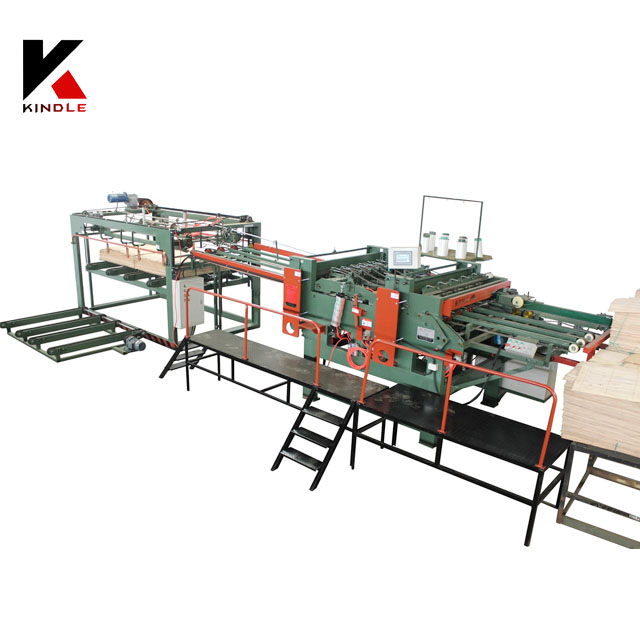

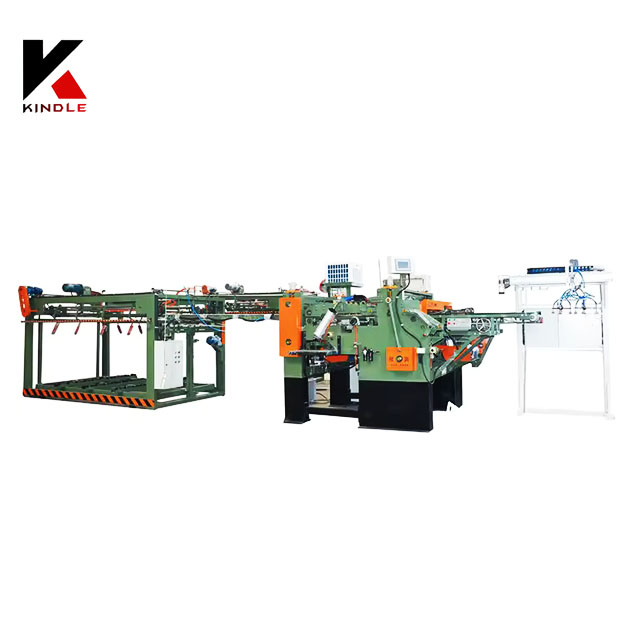

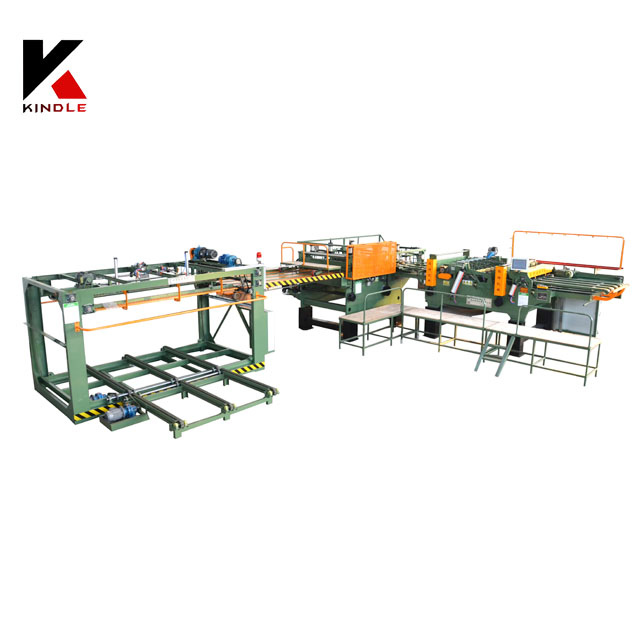

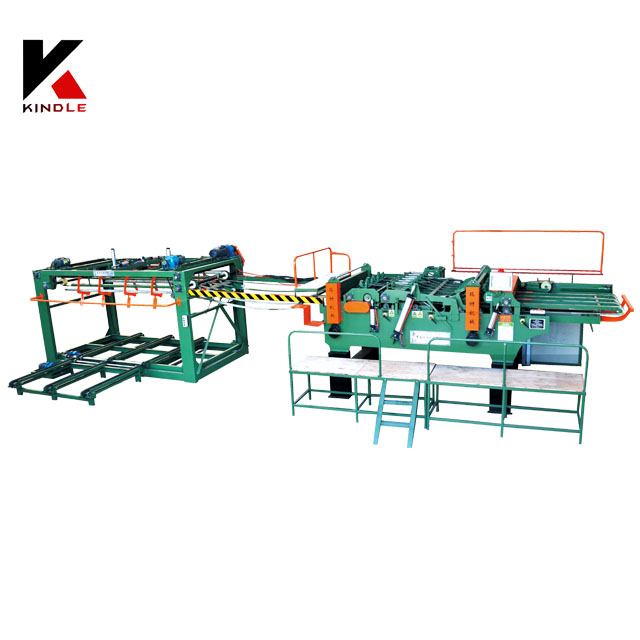

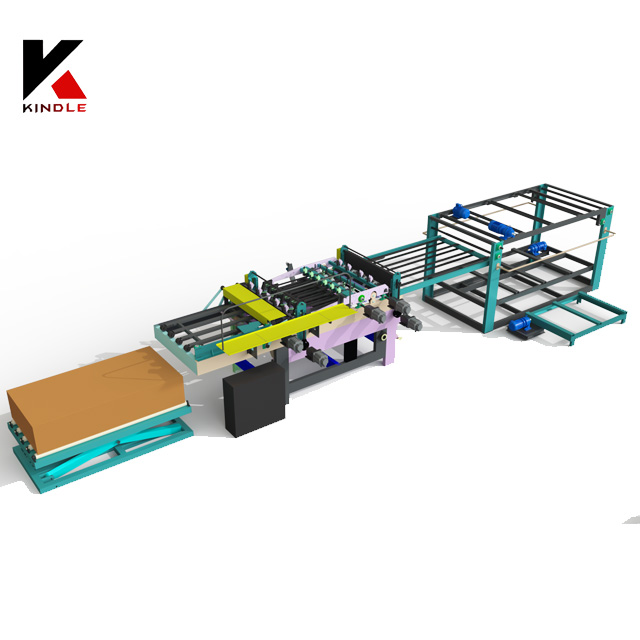

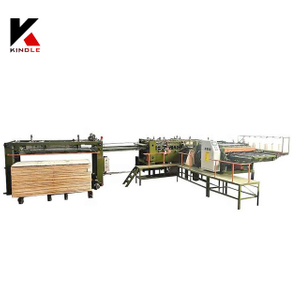

Core veneer sheet composing, veneer sheet detecting defect. thickness detecting , veneer edge gluing application and sizer cutting. It also improves panel quality by eliminating core veneer gaps, Then get from low quality and random veneer to be assembled to full sheets. Additionally, veneer composing enables the flexible production of required size core veneers and plywood. This technology is particularly relevant in plywood production technical and overlaid plywood products.
Machine parameter
| Model | JDPB130-8H | JDPB260-4V |
| Veneer thickness | 1.0-4.0mm | 1.0-4.0mm |
| Feeding width | 968-1270 mm | 2000-2600mm |
| Cutting veneer length | 1220-2560 mm (4ft, 5ft, 6ft, 7ft, 8ft) | 1300mm(4 feet) |
| Length of knife | 1400mm | 2700mm |
| Feeding speed | 0-60m/min | 0-60m/min |

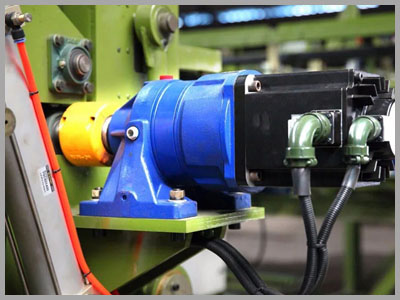

| Coveyor power | 3kw(servo motor) | 3kw(servo motor) |
| Front cutting power | 3kw(servo motor) | 4kw(servo motor) |
| Jointing power | 3kw(servo motor) | 3kw(servo motor) |
| Rear cutter power | 3kw | 4kw |
| Lifting power | 3kw | 4kw |
| Conveyor to stacker power | 3*1.5kw | 3*3kw |
| Stacking power | 1.5kw | 3kw |
| Cooling power | 1.5HP | 1.5HP |
| Heating power | 5.7kw | 7.5kw |
| Green inverter | 10kw inverter | 10kw inverter |
| Area occupied (W x L) | 2300X13000mm | 5200*9500mm |
| Main machine(WXL) | 3800X2300mm | 3800*5200mm |
| product capacity | 200-350pcs/hour (4x8ft) | 300-400pcs/hour (8x4ft) |
| Weight | 6500kgs | 8500kgs |

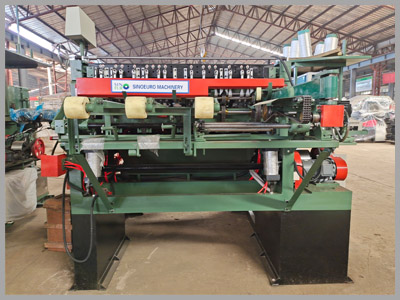

The veneer composer structure is simple and easy to install and maintain.high configuration for long using life.

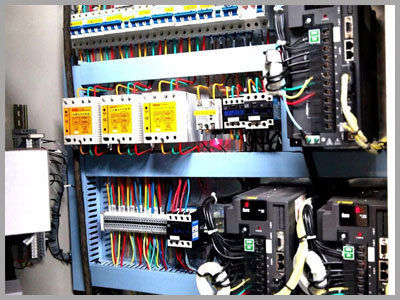

The pneumatic part, electrical part and operation part adopt world advanced famous brand components such as German Festo, Danfoss, Taiwan Taida, Japanese Mitsubishi and other international to level brands.

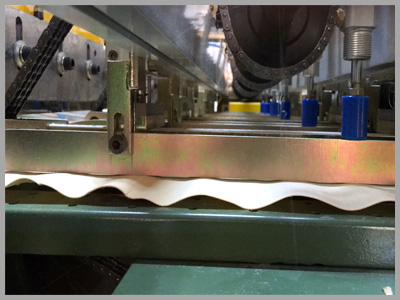

Special technology to solve the veneer jam problem,can reuse the waste veneer for save cost.
High automation, the whole process needs only one Labrous.

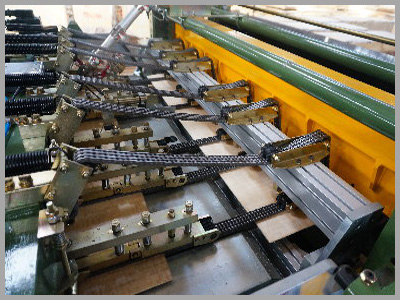

The guide is heat treated and then re-polished by the grinder to make it hard and wear-resistant and ensure a straighter board.
