XQLSX260-50A
KINDLE
The core equipment production line for plywood production rounds the logs and then accurately rotary cuts them. The veneers are dried, glued, assembled, glued in a hot press, and then trimmed, polished, and graded to achieve standardized production.
MACHINE PARAMETER
| Model | XQLSX130-70A | XQLSX260-70A |
| Maximum log length | 1300mm | 2600mm |
| Maximum log diameter | Φ700mm | Φ700mm |
| Blade size | 1600*180*16mm | 2700*180*16mm |
| veneer thickness | 0.6-3.6mm | 0.6-3.6mm |
| Veneer size | 1300mm*(600mm-2600mm) | 2600mm*1300mm |
| Veneer degree | 3 degrees | 2 degrees |
| product capacity | 50m³/day | 100m³/day |
| Total power | 125kw | 168kw |
| operator | 1-2person | 1-2 person |
| Weight | 28600kgs | 36500kgs |
| Overall size | 24000mm*5600mm | 27000mm*7200mm |

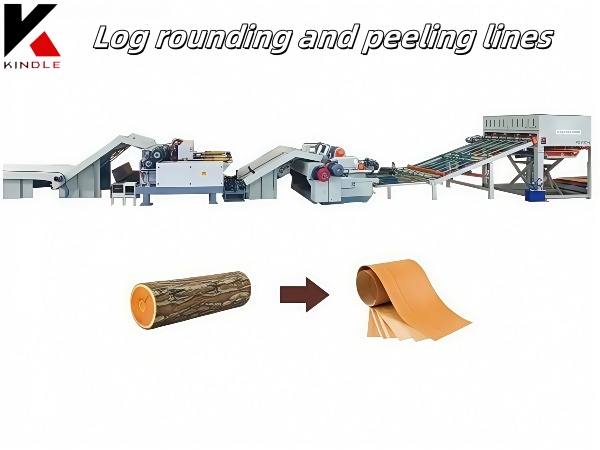

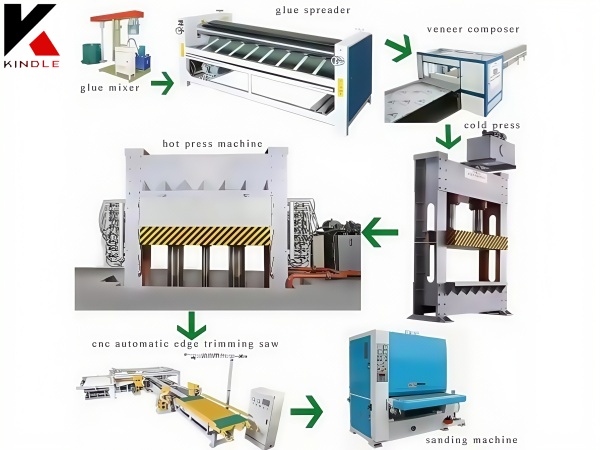

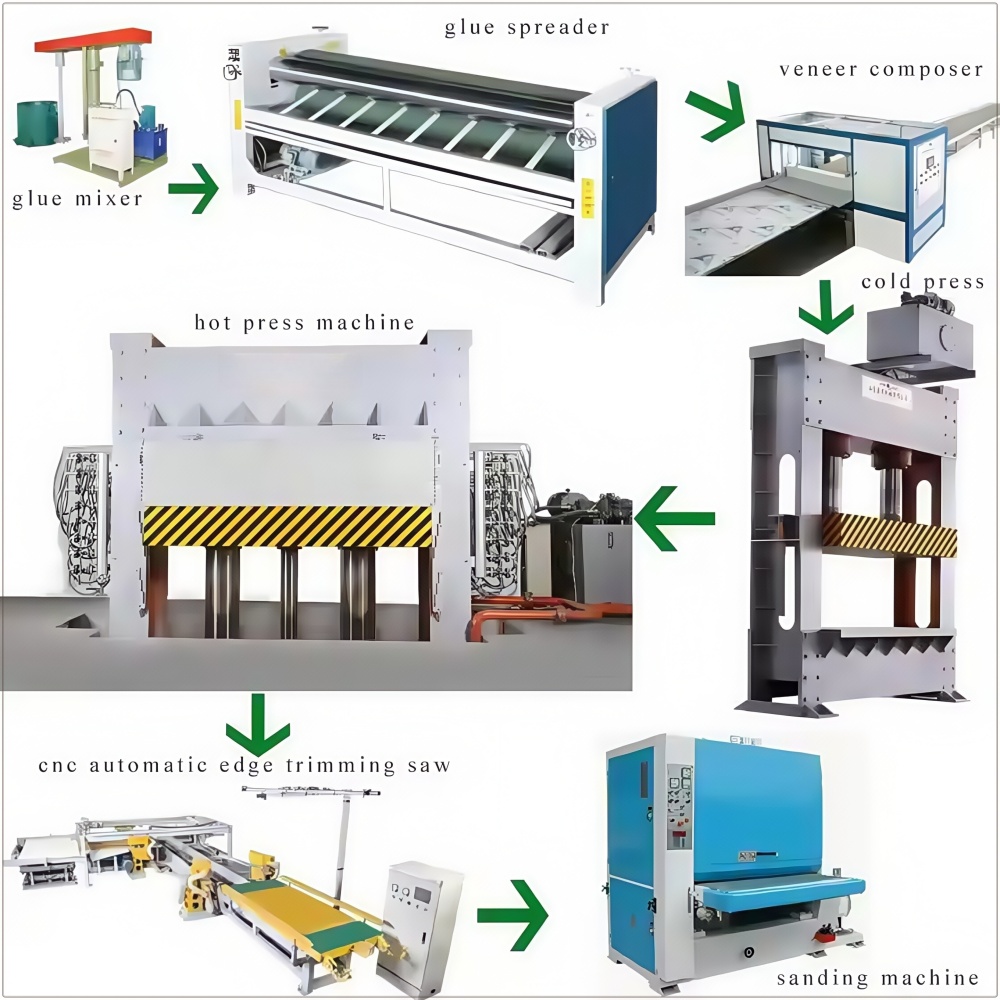

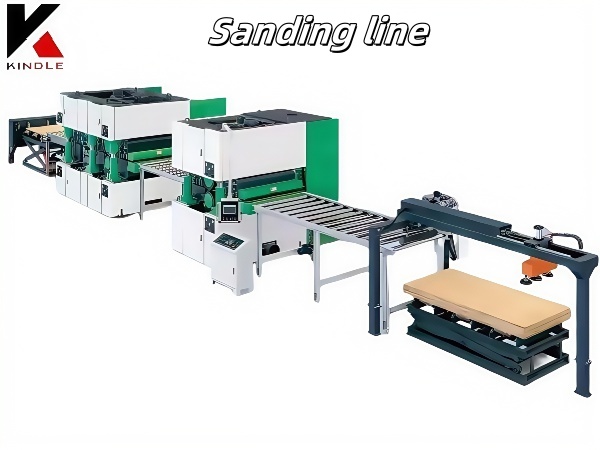

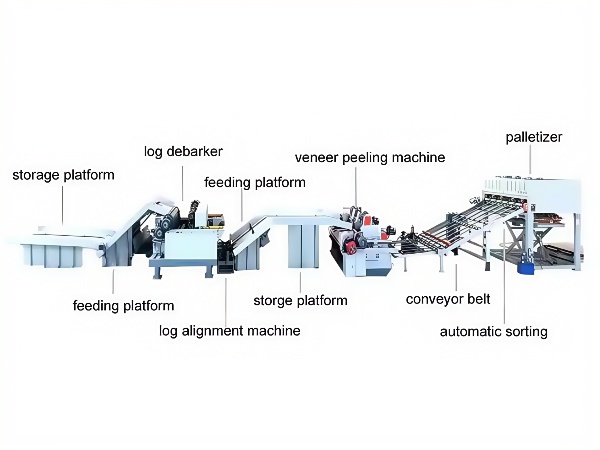

1.Starting with large-scale log centering and rounding equipment, the production line is equipped with a high-speed peeling machine to convert logs into veneers. Next, the veneer enters the multi-layer dryer for dehumidification, and then is evenly glued by the roller coating gluing machine, and then the automatic assembly machine and large-tonnage hot press are used. Finally, the precision trimming machine trims the size to produce high-quality plywood.

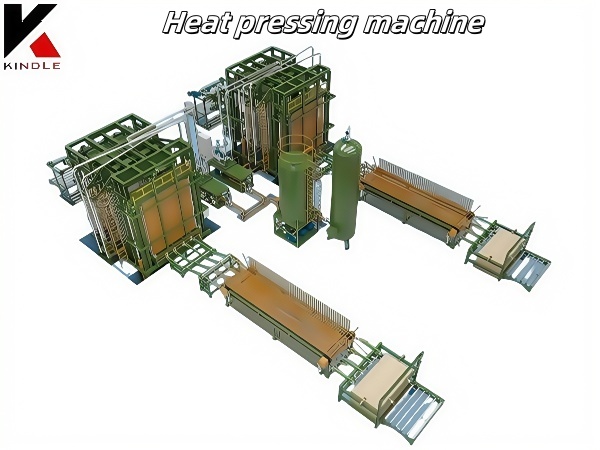

2. The production line integrates hydraulic rounding device and spiral knife peeling machine to improve the efficiency of log processing. The veneer drying adopts heat pump drying technology, and the gluing adopts electrostatic gluing process, combined with multi-layer hot press and CNC trimming equipment, while ensuring quality, it reduces energy consumption.
COMPANY PROFILE
Shandong kindle Machinery manufacture limited company located in Linyi national Economic and Technological Development Zone, it was founded in 1998 which specialized in research and development of veneer peeling machine for 26 years. It have obtained more than 60 national patents , it covers more than 30000 area and have 15 R&D technician and 30 professional engineer for installation and machine maintaining.
FAQ:
Q1: Are you machine manufacturer or a trading company?
A1: We are a factory which is special for producing veneer peeling machine and plywood machine,Jinduo company own 2 workshops and 1 trading company.
Q2: What is the delivery time?
A2: In generally speaking , the complete veneer product line need about 30 days to manufacture after getting deposit.
Q3: What is the maintenance period and what kind of after sale service can you supply?
A3: The machinery part maintenance will be sustained in one year after installation and we have abroad warehouse and office for spare part in brazil and Russia, our engineer will arrive your factory to maintain the machine at first time if have problem.
Q4: What is the payment term?
A4: We can accept TT with 30% deposit and 70% balance against loading bill or 100% irrevocable L/C at sight.
Q5: Can we visit your factory?
A6: Jinduo company is next to linyi airport, we can pick you up from airport to our factory at any time, welcome to visit us.
