XQLSX260-50A
KINDLE

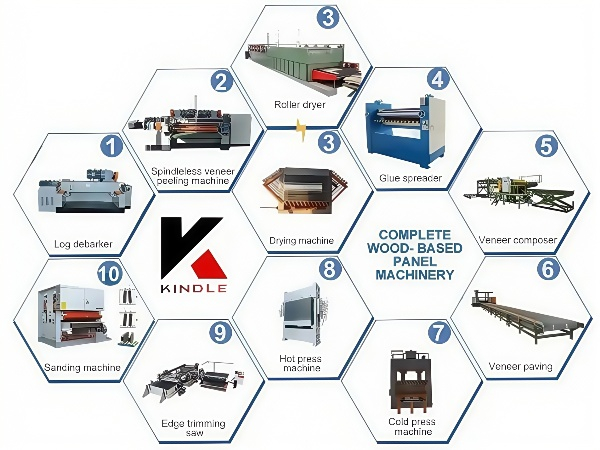

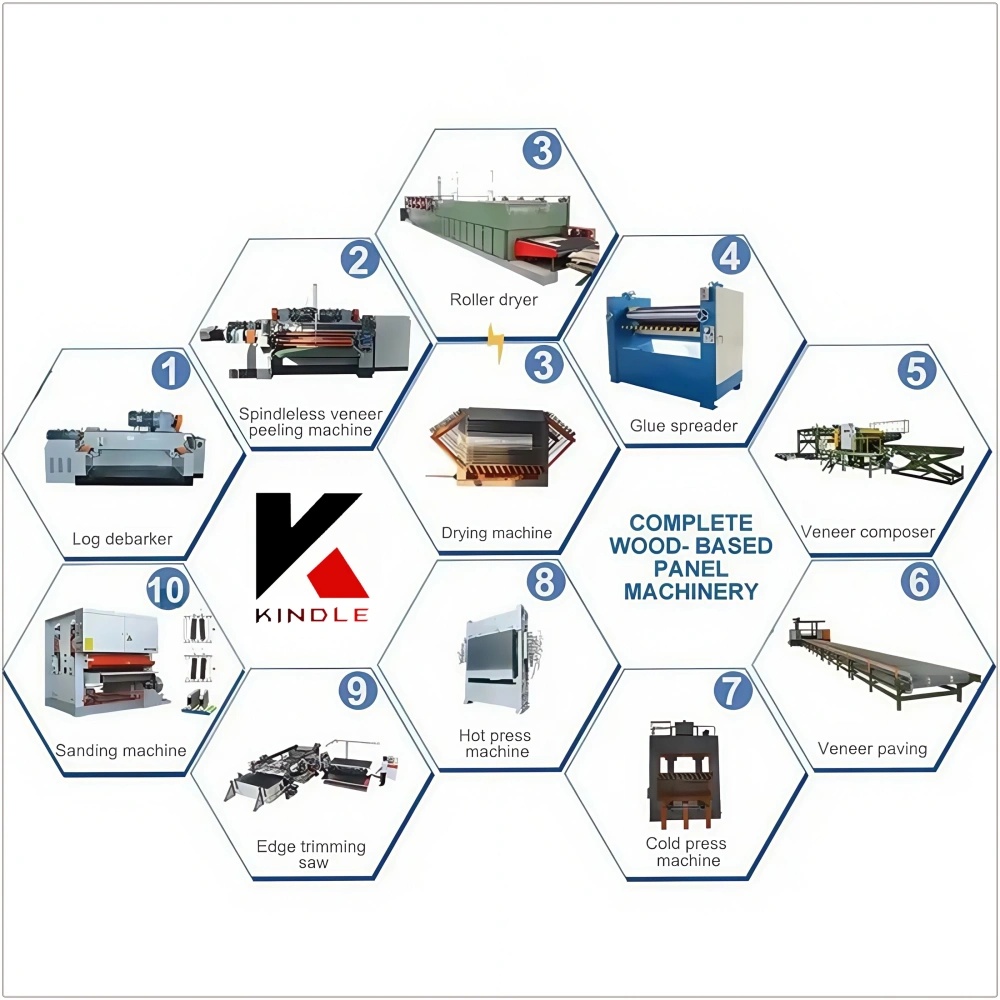

The plywood production line is an integrated equipment for plywood production, covering log rounding, peeling, veneer drying and sorting, gluing, assembly, hot pressing, and the final trimming, sanding and grading processes, completing the transformation from logs to finished plywood in one stop.
MACHINE PARAMETER
| Model | XQLSX130-70A | XQLSX260-70A |
| Maximum log length | 1300mm | 2600mm |
| Maximum log diameter | Φ700mm | Φ700mm |
| Blade size | 1600*180*16mm | 2700*180*16mm |
| veneer thickness | 0.6-3.6mm | 0.6-3.6mm |
| Veneer size | 1300mm*(600mm-2600mm) | 2600mm*1300mm |
| Veneer degree | 3 degrees | 2 degrees |
| product capacity | 50m³/day | 100m³/day |
| Total power | 125kw | 168kw |
| operator | 1-2person | 1-2 person |
| Weight | 28600kgs | 36500kgs |
| Overall size | 24000mm*5600mm | 27000mm*7200mm |
1. After the log is positioned by the track rounding machine, it enters the double-end peeling machine for processing, and the veneer is dried by the hanging drying line. Subsequently, it is assembled and glued by the roller brush gluing machine, the vertical and horizontal assembly machine and the hot press, and finally the post-processing is completed by the CNC sanding machine and intelligent grading equipment.
2. The plywood production line builds a full-process quality control system. In the rounding stage of logs, the shape of logs is detected by laser scanning; during peeling, the thickness of veneer is monitored in real time by using thickness sensors; during the hot pressing stage, the gluing quality is controlled by using pressure and temperature sensors to ensure stable product quality.
COMPANY PROFILE
Shandong kindle Machinery manufacture limited company located in Linyi national Economic and Technological Development Zone, it was founded in 1998 which specialized in research and development of veneer peeling machine for 26 years. It have obtained more than 60 national patents , it covers more than 30000 area and have 15 R&D technician and 30 professional engineer for installation and machine maintaining.
FAQ:
Q1: Are you machine manufacturer or a trading company?
A1: We are a factory which is special for producing veneer peeling machine and plywood machine,Jinduo company own 2 workshops and 1 trading company.
Q2: What is the delivery time?
A2: In generally speaking , the complete veneer product line need about 30 days to manufacture after getting deposit.
Q3: What is the maintenance period and what kind of after sale service can you supply?
A3: The machinery part maintenance will be sustained in one year after installation and we have abroad warehouse and office for spare part in brazil and Russia, our engineer will arrive your factory to maintain the machine at first time if have problem.
Q4: What is the payment term?
A4: We can accept TT with 30% deposit and 70% balance against loading bill or 100% irrevocable L/C at sight.
Q5: Can we visit your factory?
A6: Jinduo company is next to linyi airport, we can pick you up from airport to our factory at any time, welcome to visit us.
