| Feeding width: | |
|---|---|
| MAX. LOG DIAMETER: | |
| power: | |
XQLSX260-50A
KINDLE

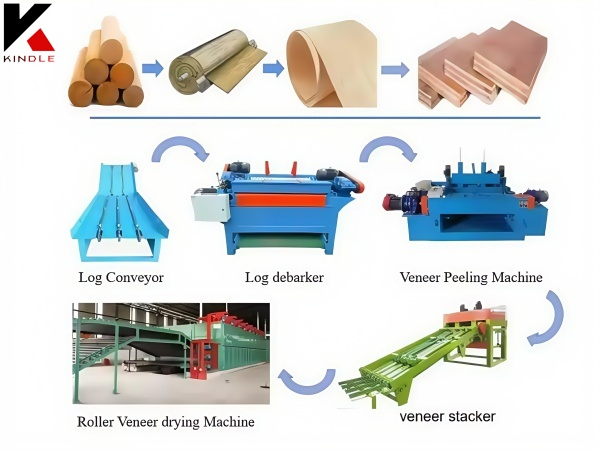

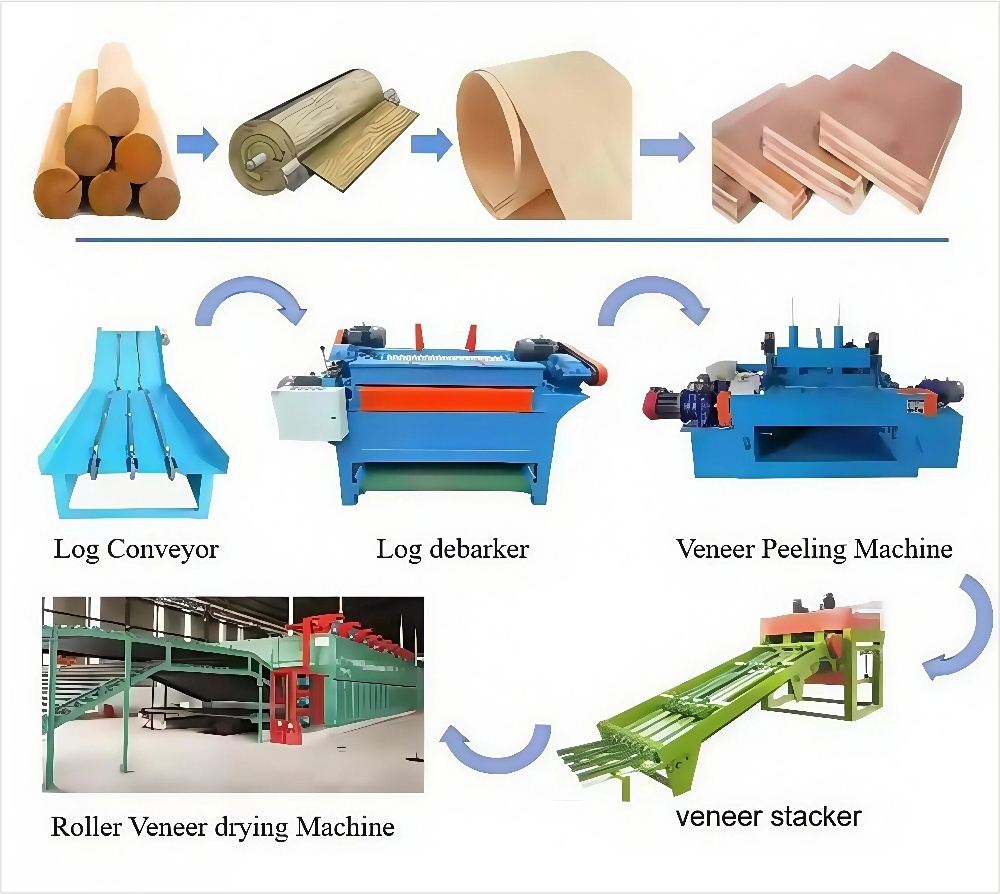

In industrial plywood production, this production line is proficient in rounding the logs, rotary cutting to produce veneers, drying, gluing, assembling, hot pressing, and gluing the veneers, and finally trimming and trimming to deliver high-quality products.
MACHINE PARAMETER
| Model | XQLSX130-70A | XQLSX260-70A |
| Maximum log length | 1300mm | 2600mm |
| Maximum log diameter | Φ700mm | Φ700mm |
| Blade size | 1600*180*16mm | 2700*180*16mm |
| veneer thickness | 0.6-3.6mm | 0.6-3.6mm |
| Veneer size | 1300mm*(600mm-2600mm) | 2600mm*1300mm |
| Veneer degree | 3 degrees | 2 degrees |
| product capacity | 50m³/day | 100m³/day |
| Total power | 125kw | 168kw |
| operator | 1-2person | 1-2 person |
| Weight | 28600kgs | 36500kgs |
| Overall size | 24000mm*5600mm | 27000mm*7200mm |
1.The production line incorporates recognition technology to accurately locate the shape of logs during the rounding stage of logs; during peeling, the parameters are automatically adjusted according to the texture of the logs. Through steam drying, automated gluing, hot pressing gluing, and CNC trimming and polishing, a highly automated plywood production process is created.
2.The plywood production line uses digital twin technology to simulate the entire process of log rounding, peeling, veneer drying, etc., and optimize production parameters in advance. With the help of automated equipment and real-time monitoring systems, each production link is closely coordinated to achieve efficient and stable production.
COMPANY PROFILE
Shandong kindle Machinery manufacture limited company located in Linyi national Economic and Technological Development Zone, it was founded in 1998 which specialized in research and development of veneer peeling machine for 26 years. It have obtained more than 60 national patents , it covers more than 30000 area and have 15 R&D technician and 30 professional engineer for installation and machine maintaining.
FAQ:
Q1: Are you machine manufacturer or a trading company?
A1: We are a factory which is special for producing veneer peeling machine and plywood machine,Jinduo company own 2 workshops and 1 trading company.
Q2: What is the delivery time?
A2: In generally speaking , the complete veneer product line need about 30 days to manufacture after getting deposit.
Q3: What is the maintenance period and what kind of after sale service can you supply?
A3: The machinery part maintenance will be sustained in one year after installation and we have abroad warehouse and office for spare part in brazil and Russia, our engineer will arrive your factory to maintain the machine at first time if have problem.
Q4: What is the payment term?
A4: We can accept TT with 30% deposit and 70% balance against loading bill or 100% irrevocable L/C at sight.
Q5: Can we visit your factory?
A6: Jinduo company is next to linyi airport, we can pick you up from airport to our factory at any time, welcome to visit us.
