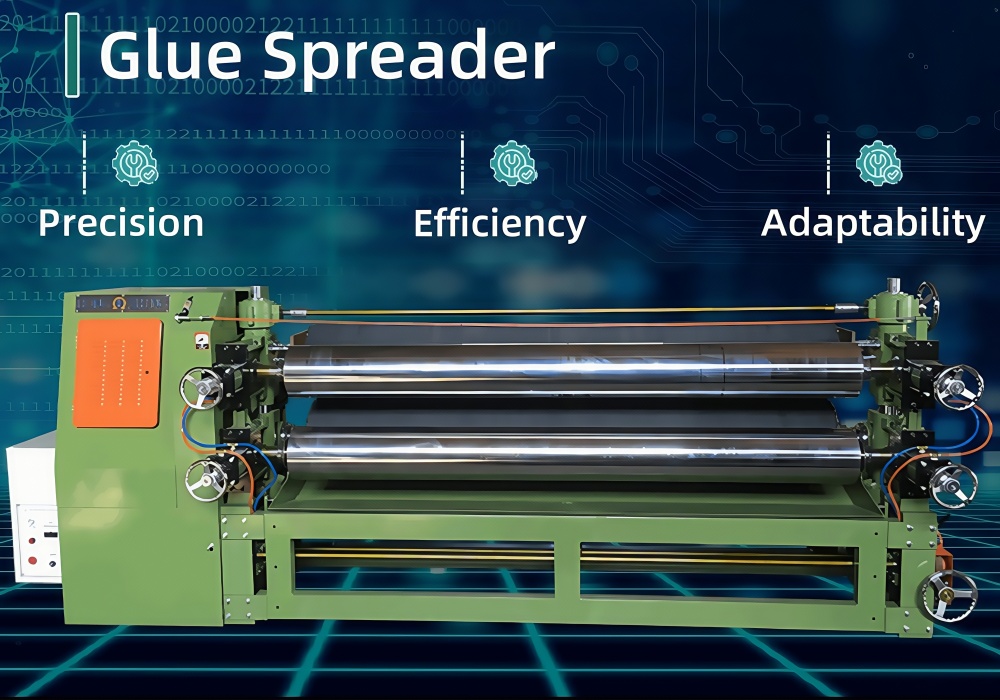

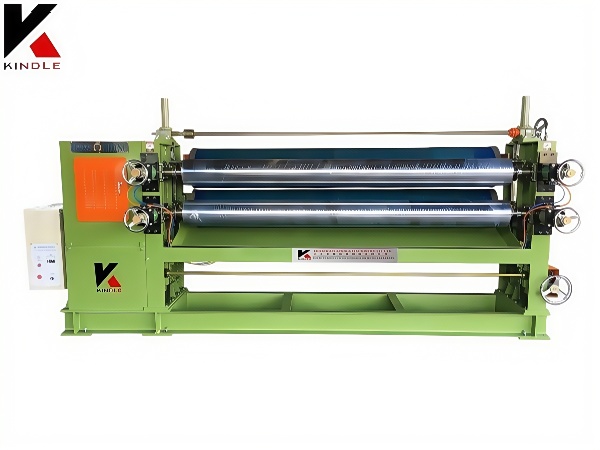

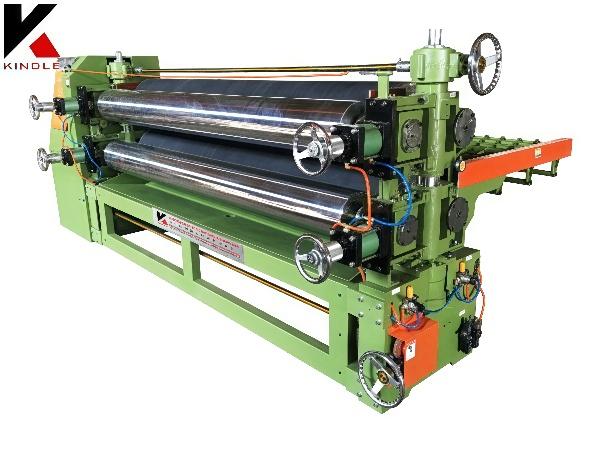

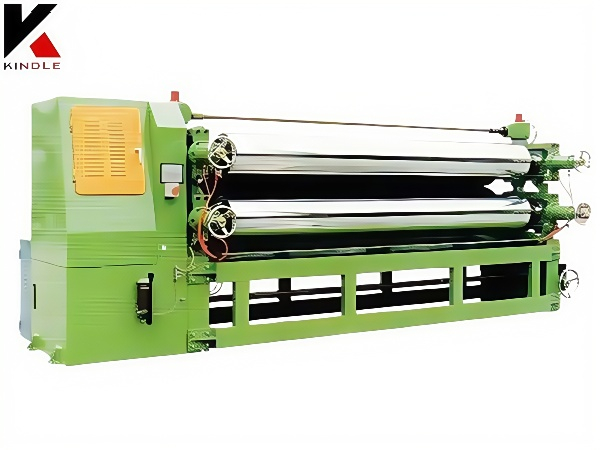

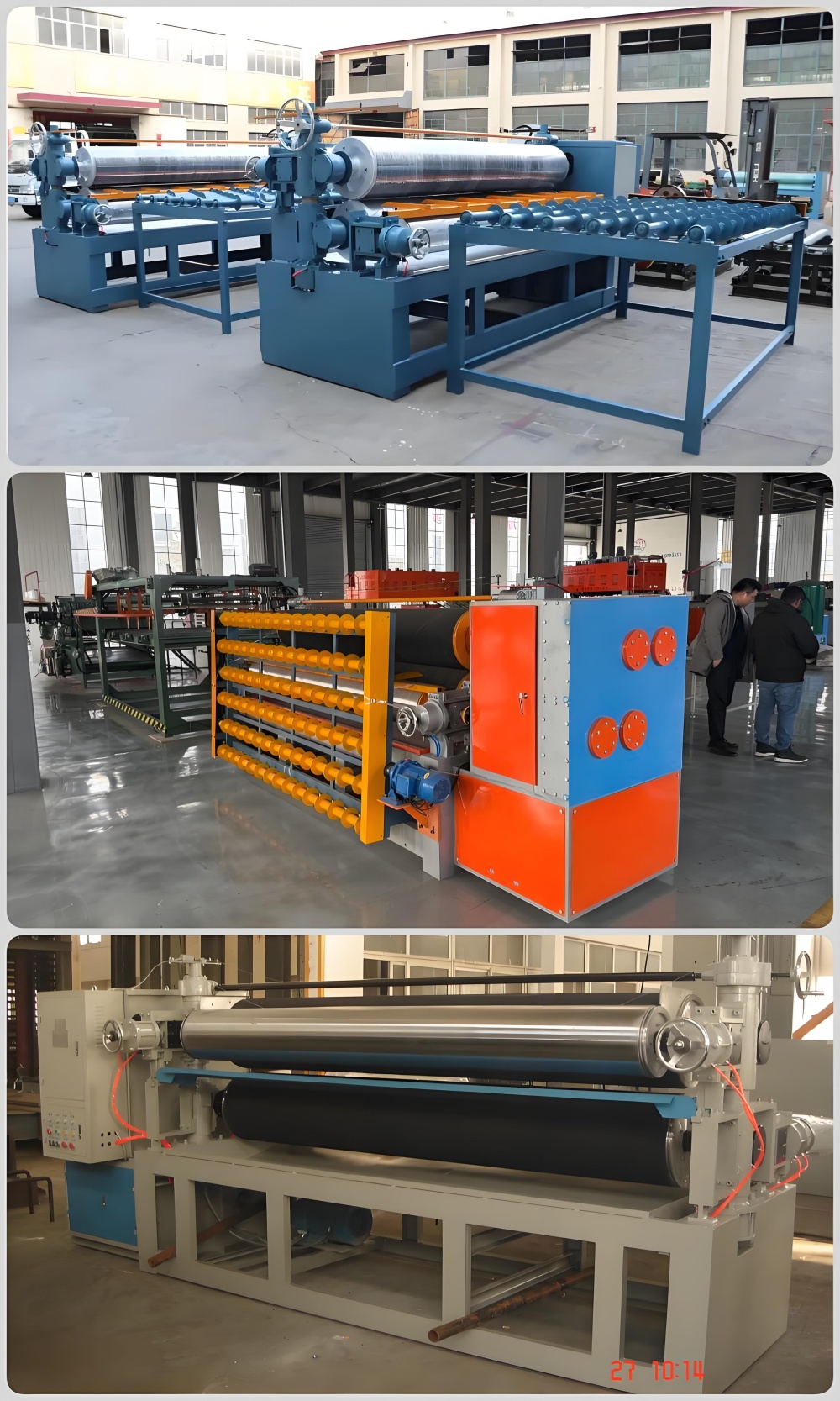

Double Side Adhesive Coater Machine Used With Cold Press

      The diameter of the gluing roller of the gluing machine has been carefully designed. The appropriately increased diameter not only prolongs its service life, but also improves the uniformity of glue application on the entire width of the veneer, making the gluing more solid.

Machine parameter

1. The bottom hopper design is adopted, and there is no need to add glue frequently, which saves both labor and glue, and keeps the working environment clean and tidy.

2. The whole machine has a full-groove steel structure, which is sturdy and durable, with strong stability, and can withstand long-term high-intensity work.

3. Equipped with a door-type shield and an emergency stop protection device, it can effectively protect the safety of the operator.

STEEL ROLLER

      It is made of thickened seamless steel roller with uniform hard chromium plating, high hardness, rust prevention and even gluing

So smooth and notsticky which saves Glue and labor.

RUBBER ROLLER

      Adopt 410mm diameter nitrile rubber, spreading speed is faster, can save more glue and the glue will be more average.





GEAR DRIVINGSYSTEM

    Precise gear drive system,high quality and better working performance.All gears and drive components are phosphorization treated,resistant to corrosion.

THICKNESS ADJUST HANDLE

       For old type of glue spreader machine for plywood, total 5 hand wheel for locking and adjusting rubber roller opening.For new Z type of glue spreader machine,two hand wheels at front and two at back side.

    Adjust the diatance between rollers, can spreading Glue on different thickness board, Easy to operate.

CONTROL SYSTEM

       Operation system is controlled by the PLC system, which is much easier to operate. the front and rear jointing are synchronized that makes the veneer jointed very precisely in order to prevent overlapping.

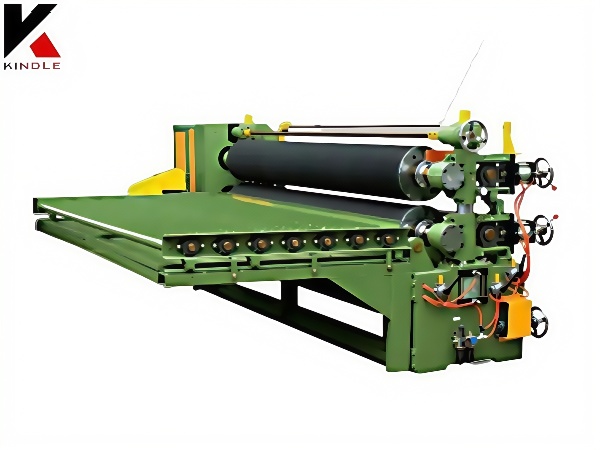

TRANSFER OUT CONVEYOR

    This conveyor can be optional with standard model, it can transfer out the veneer smoothly, increase the product capacity and it's very convenient in the plywood product line, independent motor supply power to conveyor and the speed can be adjusted according to real product.

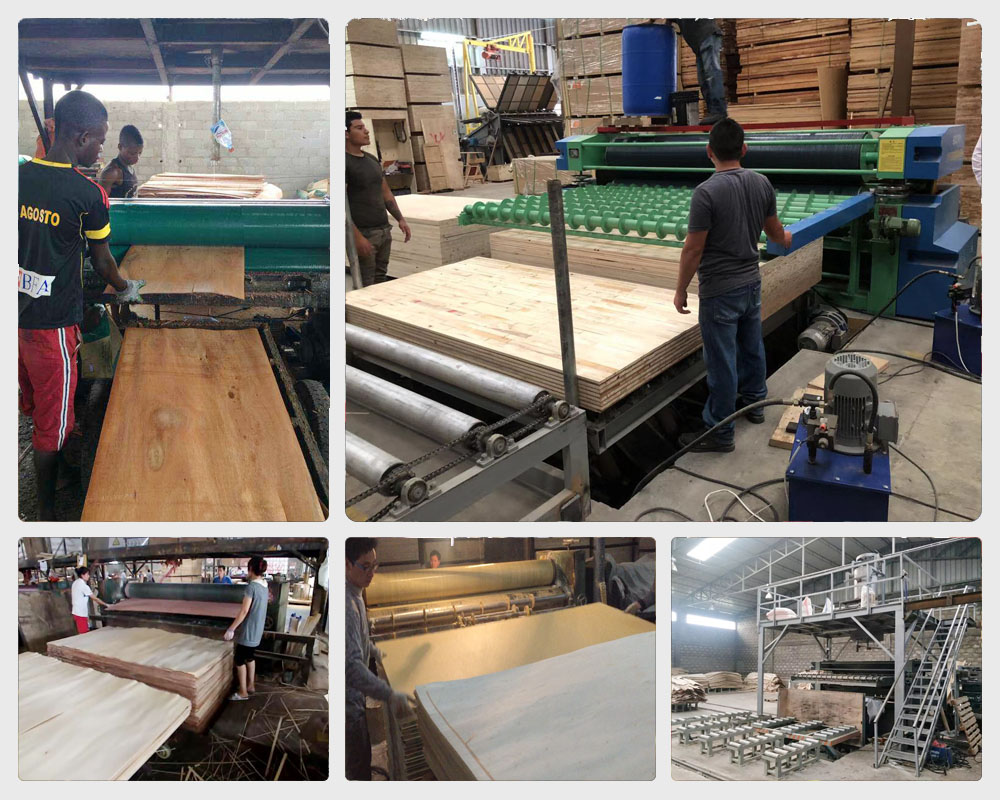

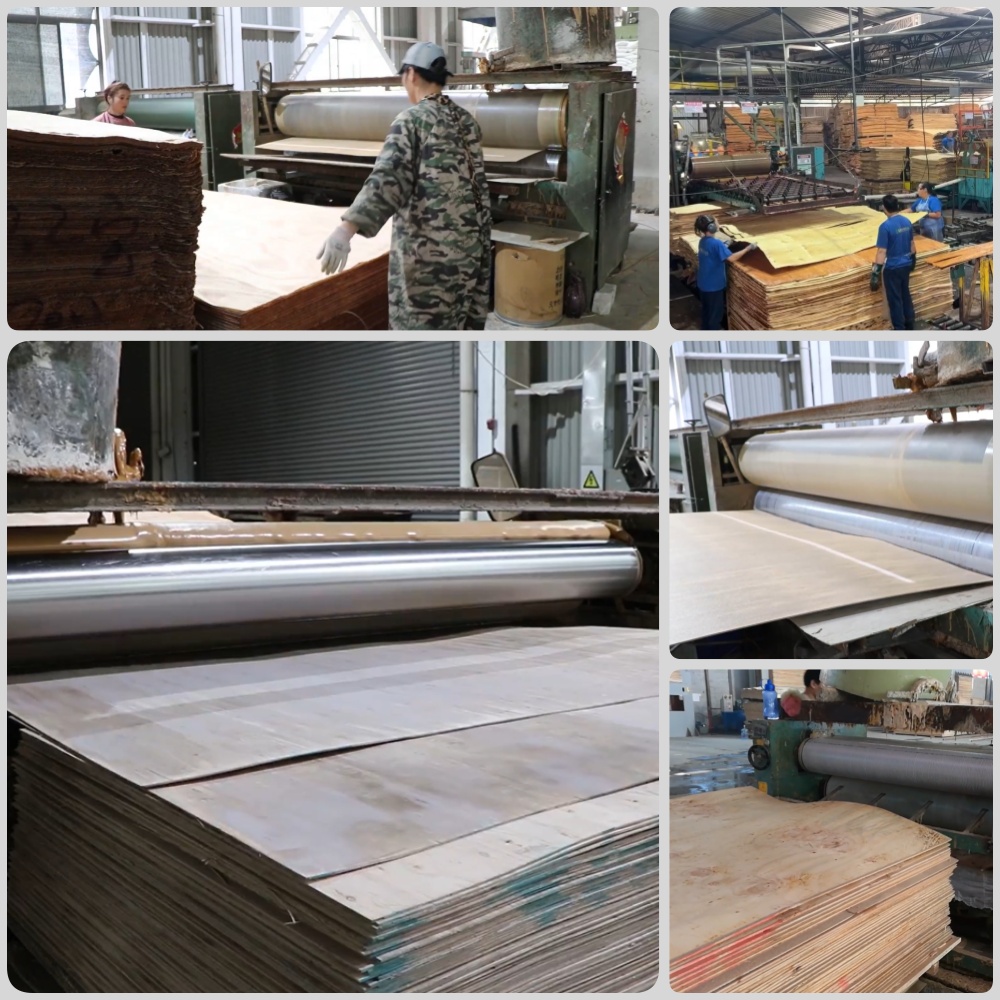

    Our glue spreading machine and plywood machine are exported to many countries like Malaysia,Indonesia, Russia, Turkey ,Brazil, Argentina, Paraguay and so on.

Spindleless peeler

Card peeling machine

Veneer dryer

Hot press

Cold press

Veener  composer

Automatic putty line

Edge cutting saw

Company Profile

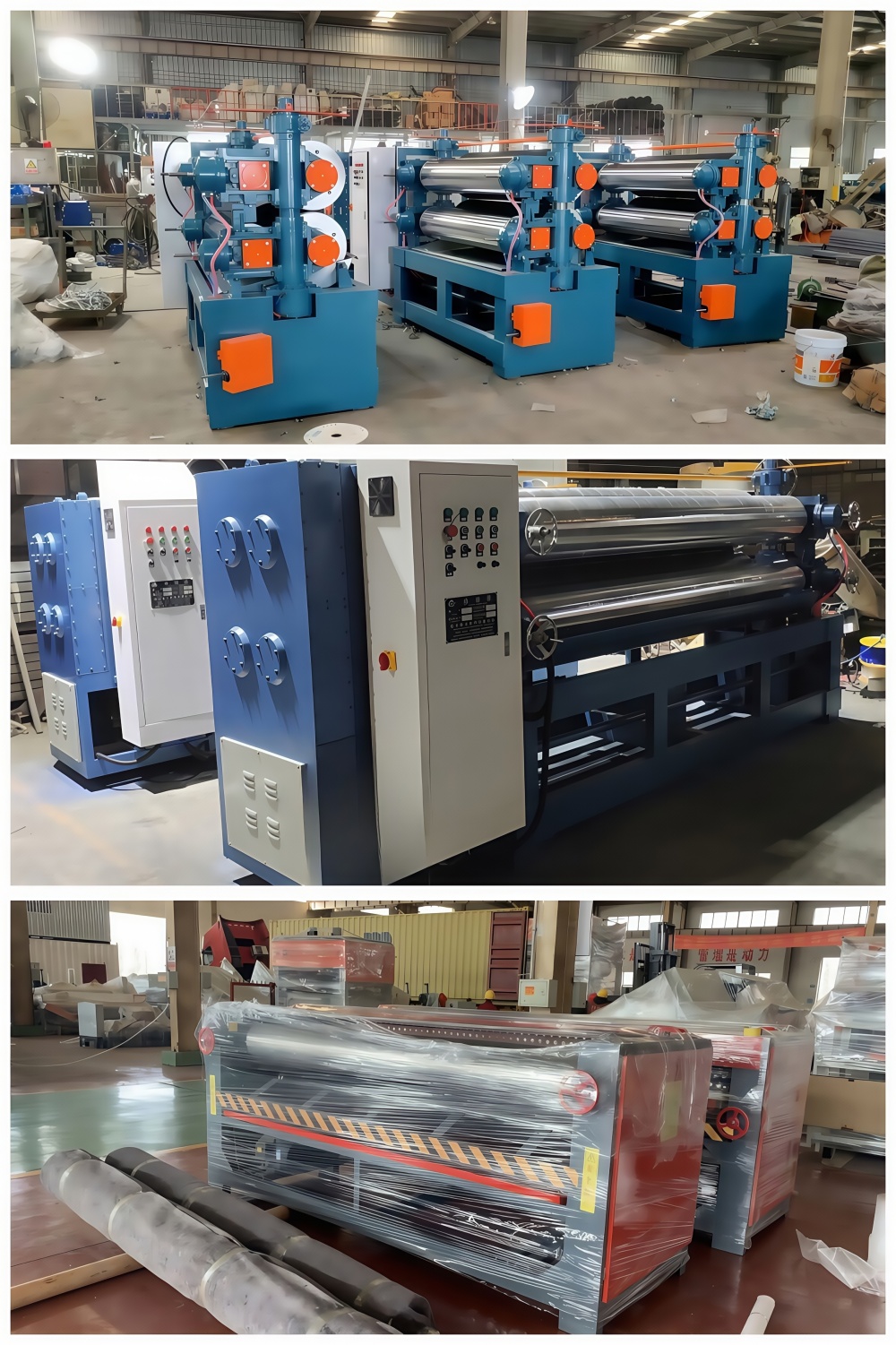

    Shandong kindle Machinery manufacture limited company located in Linyi national Economic and Technological Development Zone, it was founded in 1998 which specialized in research and development of veneer peeling machine for 26 years. It have obtained more than 60 national patents , it covers more than 30000 area and have 15 R&D technician and 30 professional engineer for installation and machine maintaining.

FAQ:

Q1: Are you machine manufacturer or a trading company?

A1: We are a factory which is special for producing veneer peeling machine and plywood machine,Jinduo company own 2 workshops and 1 trading company.

Q2: What is the delivery time?

A2: In generally speaking , the complete veneer product line need about 30 days to manufacture after getting deposit.

Q3: What is the maintenance period and what kind of after sale service can you supply?

A3: The machinery part maintenance will be sustained in one year after installation and we have abroad warehouse and office for spare part in brazil and Russia, our engineer will arrive your factory to maintain the machine at first time if have problem.

Q4: What is the payment term?

A4: We can accept TT with 30% deposit and 70% balance against loading bill or 100% irrevocable L/C at sight.

Q5: Can we visit your factory?

A6: Jinduo company is next to linyi airport, we can pick you up from airport to our factory at any time, welcome to visit us.
