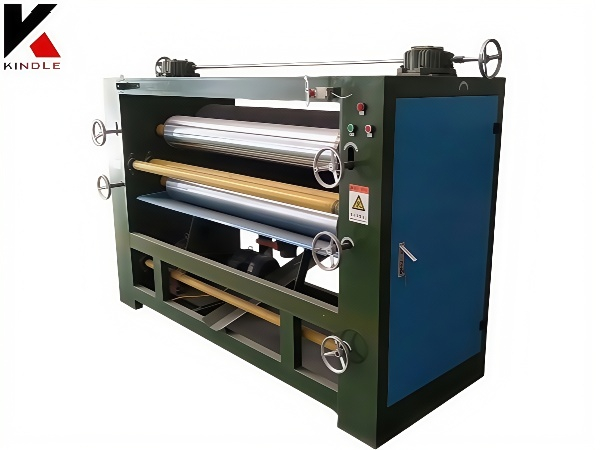

2600mm Double Sides Rolls Wood Veneer Adhesive Painting Machine

       The gluing roller and squeezing roller of the gluing machine are installed with high precision, ensuring the full runout of the working surface to the axis, the parallelism of the upper and lower gluing rollers, etc., to improve the uniformity of gluing.

Machine parameter

1. The feeding speed of the glue coating machine can automatically match the speed of the subsequent processing equipment to achieve the automatic connection of the production process.

2. The high-precision glue coating nozzle is used to accurately spray the glue to the designated position of the single board to improve the accuracy of glue coating.

3. The surface hardness and elasticity of the glue roller can be adjusted according to different glue coating requirements to ensure the quality of glue coating.

STEEL ROLLER

      It is made of thickened seamless steel roller with uniform hard chromium plating, high hardness, rust prevention and even gluing

So smooth and notsticky which saves Glue and labor.

RUBBER ROLLER

      Adopt 410mm diameter nitrile rubber, spreading speed is faster, can save more glue and the glue will be more average.





GEAR DRIVINGSYSTEM

    Precise gear drive system,high quality and better working performance.All gears and drive components are phosphorization treated,resistant to corrosion

THICKNESS ADJUST HANDLE

       For old type of glue spreader machine for plywood, total 5 hand wheel for locking and adjusting rubber roller opening.For new Z type of glue spreader machine,two hand wheels at front and two at back side.

    Adjust the diatance between rollers, can spreading Glue on different thickness board, Easy to operate

CONTROL SYSTEM

       Operation system is controlled by the PLC system, which is much easier to operate. the front and rear jointing are synchronized that makes the veneer jointed very precisely in order to prevent overlapping

TRANSFER OUT CONVEYOR

    This conveyor can be optional with standard model, it can transfer out the veneer smoothly, increase the product capacity and it's very convenient in the plywood product line, independent motor supply power to conveyor and the speed can be adjusted according to real product.

    Our glue spreading machine and plywood machine are exported to many countries like Malaysia,Indonesia, Russia, Turkey ,Brazil, Argentina, Paraguay and so on.

Spindleless peeler

Card peeling machine

Veneer dryer

Hot press

Cold press

Veener  composer

Automatic putty line

Edge cutting saw

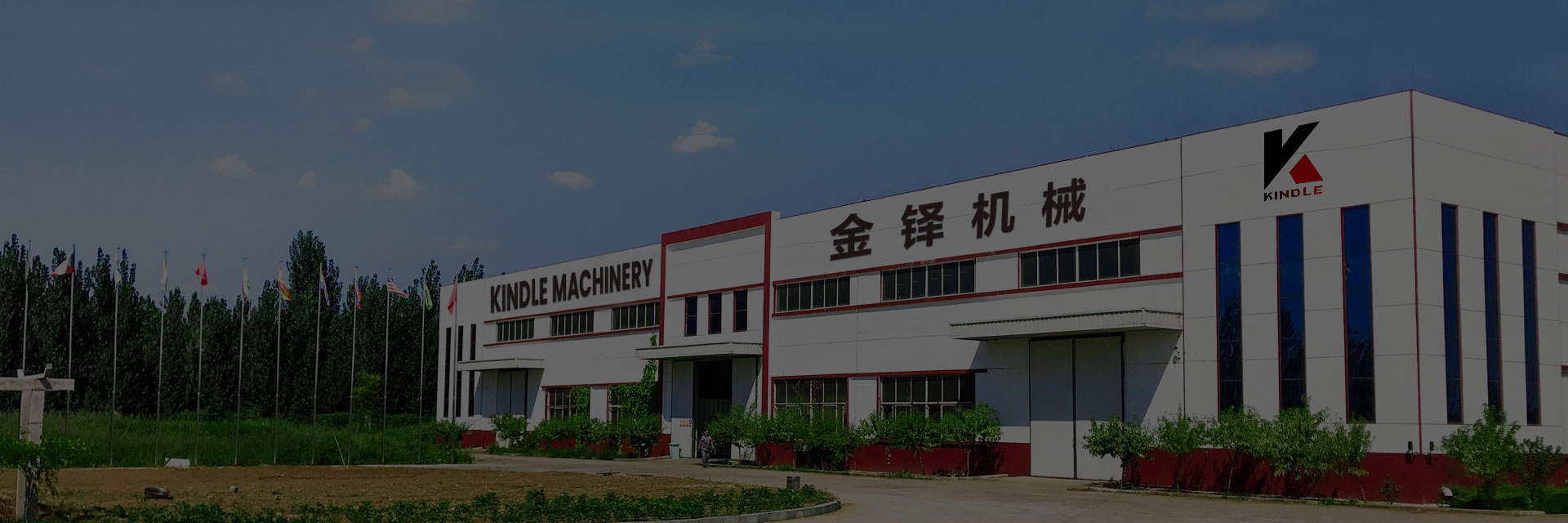

Company Profile

    Shandong kindle Machinery manufacture limited company located in Linyi national Economic and Technological Development Zone, it was founded in 1998 which specialized in research and development of veneer peeling machine for 26 years. It have obtained more than 60 national patents , it covers more than 30000 area and have 15 R&D technician and 30 professional engineer for installation and machine maintaining.

FAQ:

Q1: Are you machine manufacturer or a trading company?

A1: We are a factory which is special for producing veneer peeling machine and plywood machine,Jinduo company own 2 workshops and 1 trading company.

Q2: What is the delivery time?

A2: In generally speaking , the complete veneer product line need about 30 days to manufacture after getting deposit.

Q3: What is the maintenance period and what kind of after sale service can you supply?

A3: The machinery part maintenance will be sustained in one year after installation and we have abroad warehouse and office for spare part in brazil and Russia, our engineer will arrive your factory to maintain the machine at first time if have problem.

Q4: What is the payment term?

A4: We can accept TT with 30% deposit and 70% balance against loading bill or 100% irrevocable L/C at sight.

Q5: Can we visit your factory?

A6: Jinduo company is next to linyi airport, we can pick you up from airport to our factory at any time, welcome to visit us.
