JDRY500T-15L
KINDLE

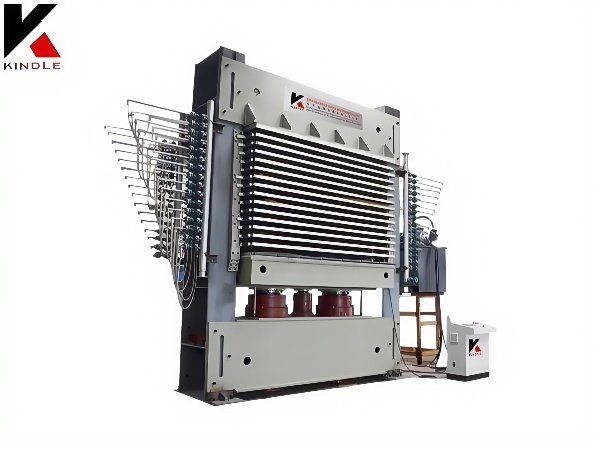

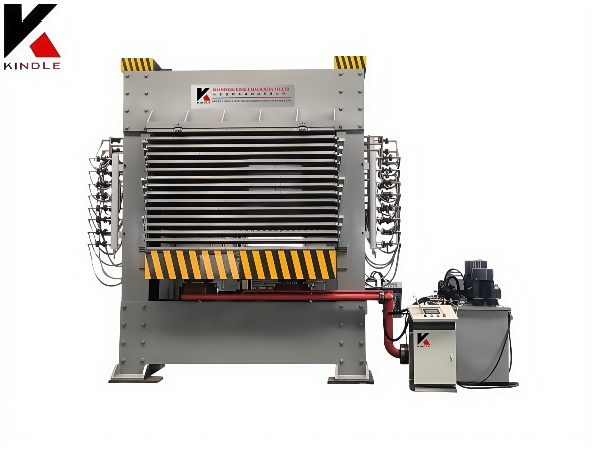

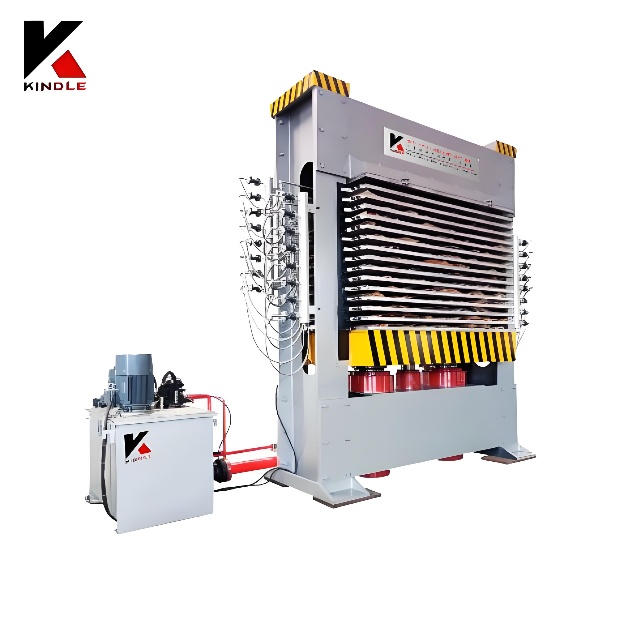

Our Hydraulic Hot Presses Machine for Plywood Board is engineered to deliver reliable performance in plywood manufacturing. Designed with advanced hydraulic systems, it ensures uniform pressure distribution across the board surface, promoting strong adhesion between layers. The integrated heating mechanism maintains consistent temperatures to facilitate optimal bonding, enhancing the overall quality and durability of the plywood. This machine is built with robust materials to withstand continuous operation, making it suitable for both small-scale workshops and large production facilities. Its user-friendly design simplifies operation and maintenance, while the flexible configuration allows adaptation to various plywood thicknesses and sizes. Ideal for producers seeking efficient, high-quality results, this hydraulic hot press supports smooth workflow and consistent output in plywood production.
Machine parameter
| 1 | Model | BY21-4*8-600T-15 |
| 2 | Hot press plates size | 2700*1370*52 mm |
| 3 | Qunatity of hot press plates | 16 sheets, double inlet, double outlet |
| 4 | Quantity of layers | 15 layers |
| 5 | Hydraulic pistons | 4 units, diameter 280 mm |
| 6 | Pressure Capacity | 600 Tons |
| 7 | Opening size | 100 mm |
| 8 | Stroke of Cylinder | 1500 mm |
| 9 | No-load closing time | About 27 S |
| 10 | Hydraulic system control method | Automatic control and hand control |
| 11 | Hydraulic system limit pressure | 25 MPa |
| 12 | Low pressure pump and motors | 250 ml/rev 2 units, 11 KW motors 2 units |
| 13 | High pressure pump and motors | 10 ml/rev 1 unit , 5.5 KW motor 1 unit |
| 14 | Heating Meduim | heat transfer oils or steam |
| 15 | Top , Bottom , middle crossbeam | 1000 mm, 1000 mm, 400 mm |
| 16 | Frame structure | fixed with bolts, two gantry frames |
| 17 | Size of Main frame | 3560*1370*5500 mm |
| 18 | Main frame steel plate thickness | 30 mm , 12 mm |
| 19 | Gross Weight | 43,000 KG |
1.Heavy,solid and reliable complete structure, which is 3-4 tons heavier than others.
2.Platens has double enters and double exits, which ensure a high efficient, and small temperature difference.
3.Each platen has his own control valve.This ensure a easy maintenance in future.
4.Input and output tubes of steam and heat conduction oil are alternative.
5.Oil cylinder with bigger diameter, heavy duty.And inside pillar is solid while others may be hallow.
6.Closing time is 12-15 seconds which others may more than 20 seconds.
7.Electronic element: Schneider and Most import hydraulic pressure station is made in TAIWAN
Spindleless peeler
Card peeling machine
Veneer dryer
Edge cutting saw
Cold press
Veener composer
Automatic putty line
Glue spreader
Company Profile
Shandong kindle Machinery manufacture limited company located in Linyi national Economic and Technological Development Zone, it was founded in 1998 which specialized in research and development of veneer peeling machine for 26 years. It have obtained more than 60 national patents , it covers more than 30000 area and have 15 R&D technician and 30 professional engineer for installation and machine maintaining.
FAQ:
Q1: Are you machine manufacturer or a trading company?
A1: We are a factory which is special for producing veneer peeling machine and plywood machine,Jinduo company own 2 workshops and 1 trading company.
Q2: What is the delivery time?
A2: In generally speaking , the complete veneer product line need about 30 days to manufacture after getting deposit.
Q3: What is the maintenance period and what kind of after sale service can you supply?
A3: The machinery part maintenance will be sustained in one year after installation and we have abroad warehouse and office for spare part in brazil and Russia, our engineer will arrive your factory to maintain the machine at first time if have problem.
Q4: What is the payment term?
A4: We can accept TT with 30% deposit and 70% balance against loading bill or 100% irrevocable L/C at sight.
Q5: Can we visit your factory?
A6: Jinduo company is next to linyi airport, we can pick you up from airport to our factory at any time, welcome to visit us.
Our hot press machine and automatic peeling line are exported to many countries like Malaysia,Indonesia, Russia, Turkey ,Brazil, Argentina, Paraguay and so on.
