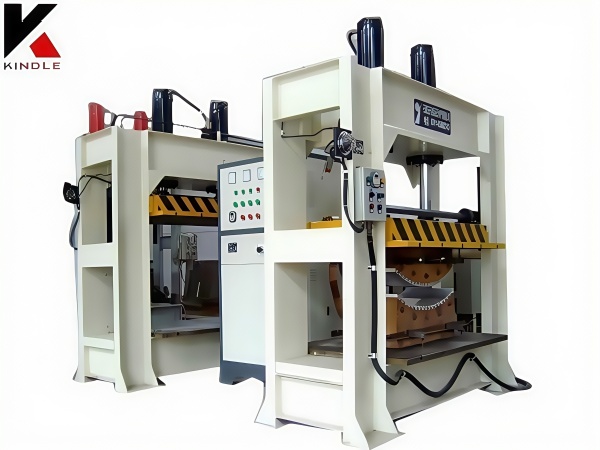

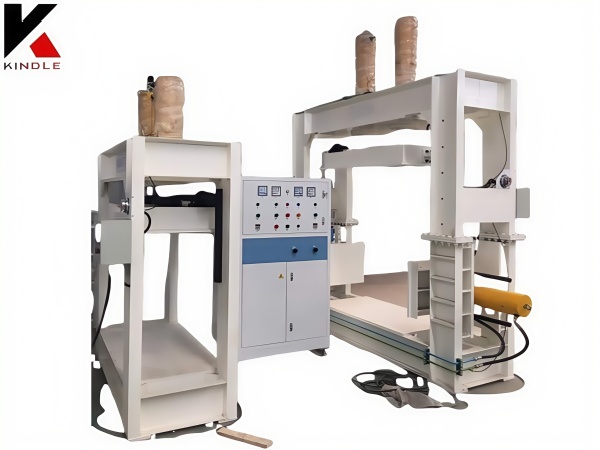

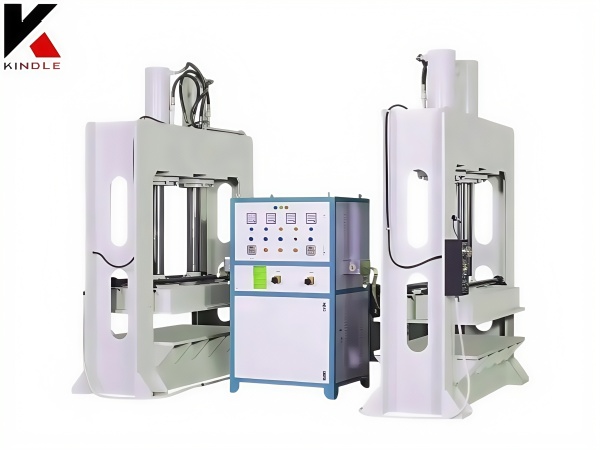

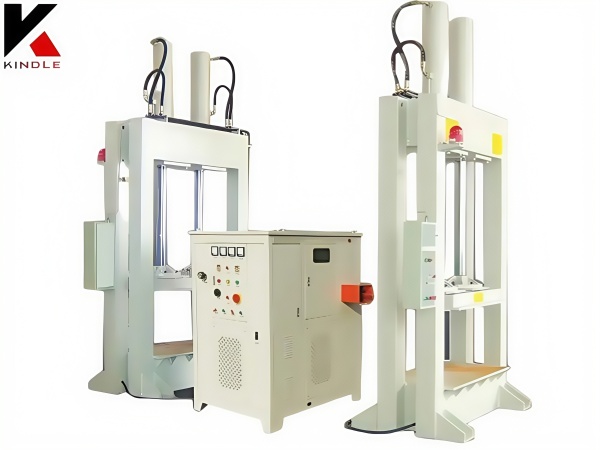

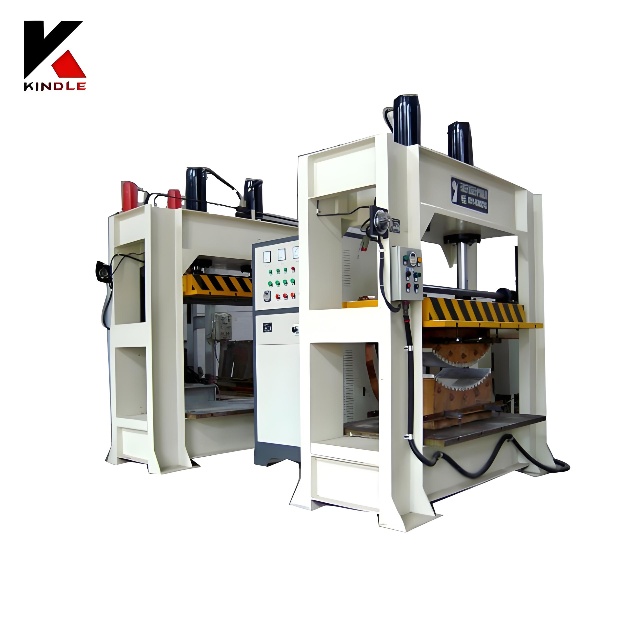

CURVED SURFACE PRESS MACHINE
Our high-quality curved surface press machine is engineered for precision and durability, ideal for shaping curved workpieces across woodworking, furniture, and decorative industries. It delivers consistent pressure and adjustable temperature control to handle various materials like plywood, MDF, and veneers. Equipped with advanced hydraulic systems and a robust frame, it ensures stable operation and uniform curvature results, minimizing material waste. The user-friendly interface simplifies setup, while safety features like emergency stops enhance workplace security. Backed by strict quality checks, this machine guarantees long-term reliability, making it a trusted choice forbusinesses aiming for superior curved products.

Machine parameter
| Model No. | GJQ1206-Y60(80)-JY | GJQ1508-Y80(100)-JY | GJQ2010-Y100(120)-JY | GJQ2513-Y120(160)-JY |
| Power | AC 380V,50Hz 3phases 5wires | |||
| HF Power | 20KW/30KW | 20KW/30KW | 20KW/30KW | 30KW/50KW |
| Frequency | 6.78MHz/13.56MHz | |||
| Workbench size | 1200mm*600mm | 1500mm*800mm | 2000mm*1000mm | 2500mm*1250mm |
| Maximum pressure | 60T/80T | 80T/100T | 100T/120T | 120T/160T |
| Output method | Single/Double output | |||



1.Our curved surface press delivers exceptional precision, ensuring consistent and flawless curvature on every workpiece, from subtle arcs to complex contours.
2.Its user-friendly interface and automated features simplify operation, reducing setup time and minimizing the need for extensive training.
3.Designed with safety as a priority, it includes emergency stops and protective guards, ensuring a secure working environment for operators.
4.Built with high-grade materials and robust engineering, this machine offers long-lasting durability, handling heavy workloads without compromising performance.
5.Equipped with wood softening system, easier to shape.

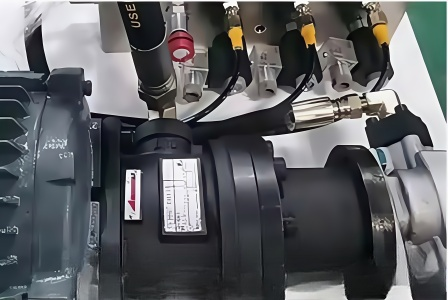

Brand High and Low Pressure Double Pump
Adopting high and low pressure dual pump integrated design, it can provide high pressure (such as 200-700 bar) and low pressure (such as 0.5-50 bar) output at the same time to meet the needs of different working conditions. The high pressure pump is responsible for precision operations (such as cleaning and cutting), and the low pressure pump is used for auxiliary fluid supply or cooling to improve the overall system efficiency

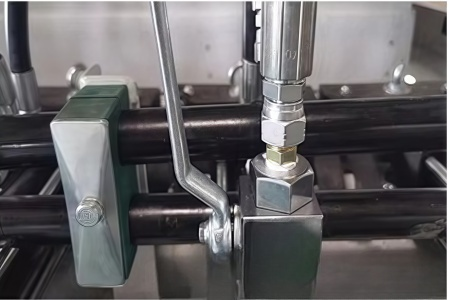

Independent Oil Pressure Switch
The independent oil pressure switch uses a highly sensitive pressure sensor that can accurately detect oil pressure changes, ensuring an immediate response when the oil pressure falls below or exceeds the set threshold, protecting the engine or hydraulic system from damage.

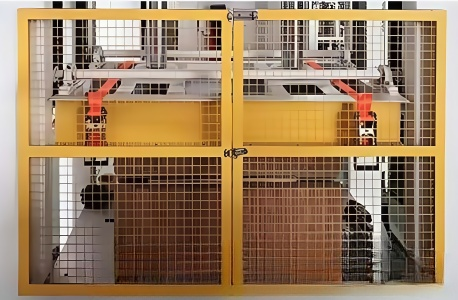

European Standard Safety Protection Net
The European standard safety protection net is made of high-performance material high-strength steel wire, which has excellent impact resistance, tensile resistance and tear resistance.

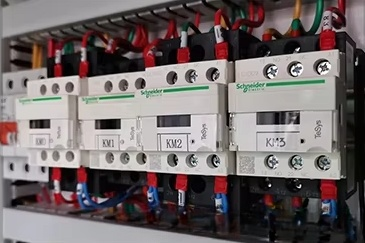

Brand Electrical Component Sets
Brand electrical component sets are crafted with premium materials and advanced manufacturing techniques. Rigorous quality control processes ensure each component meets strict industry standards, minimizing the risk of malfunctions and failures.
We can also design press machine according to your requirements. So far, our company has successfully made 6*12ft size 2800Ton lamination hot press machine.
