KINDLE

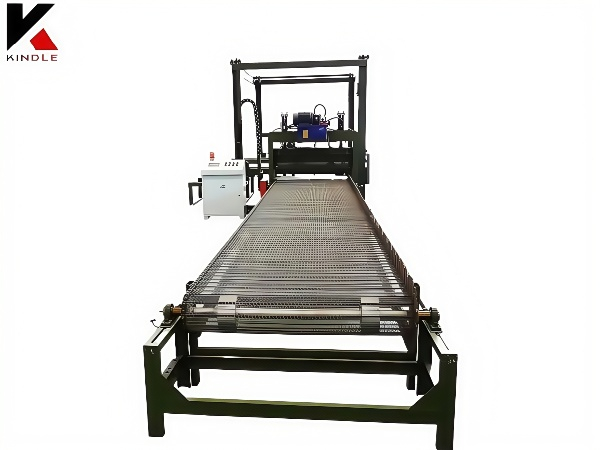

VEENER PAVING LINE
The plywood assembly line is an important equipment in the plywood production process. It is mainly used to lay the glued veneer into a slab in a certain order and manner to prepare for subsequent hot pressing and other processes.
Single board conveying: convey the glue-coated single board to the designated location according to production requirements through belt conveyors, chain conveyors and other devices.
Laying and forming: on the paving table, lay the single board layer by layer in a certain paving method to ensure the quality of the single board.
Slab conveying: convey the paved and formed slab to the next process, such as the hot press for further processing.
Machine parameter
| Model | HB-PZ0012 |
| Working board size | 1220*2440mm |
| Lay-up head size | 3000*1580*1150mm |
| Working table | 25m |
| Conveyor speed | 5-10m/min |
| The cutting way | SaW |
| Loading style | vertical down |
| Control type | PLC control |
| Total power | 13.5kw |
| Weight | About 5 Ton |
1.Improve production efficiency: The laying line can realize automated production, greatly improve production efficiency and reduce labor intensity.
2.Ensure product quality: Through precise control and automated operation, the laying quality of plywood can be guaranteed, and the consistency and stability of products can be improved.
3.Reduce production costs: Automated production reduces labor costs, while improving production efficiency and reducing production costs.
4.Adapt to diversified production: The plywood assembly line can be adjusted and changed according to different production requirements and product specifications to adapt to diversified production needs.
