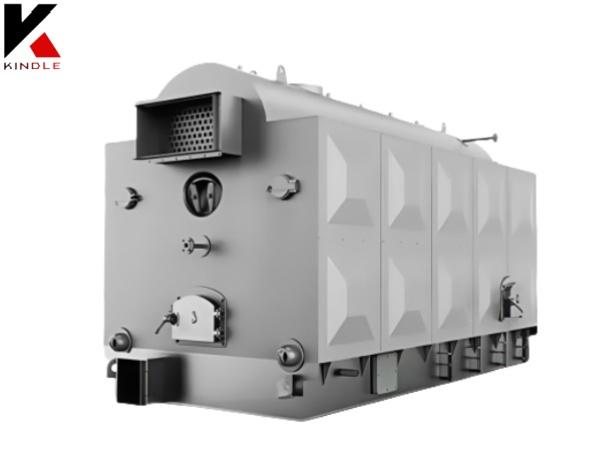

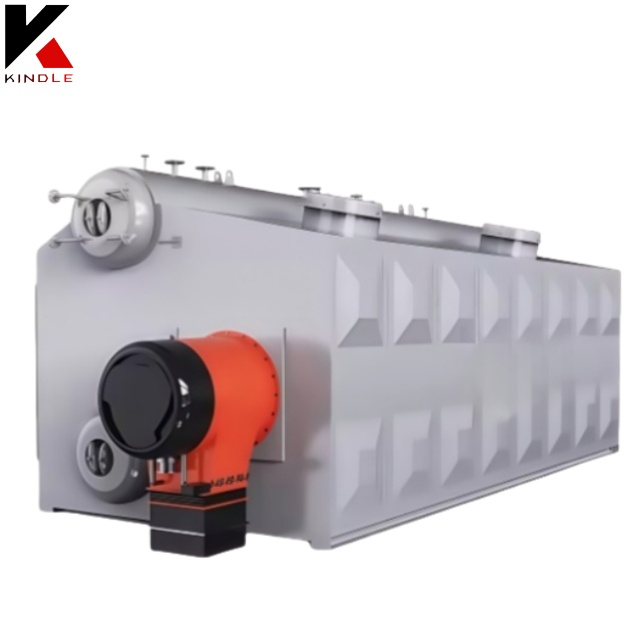

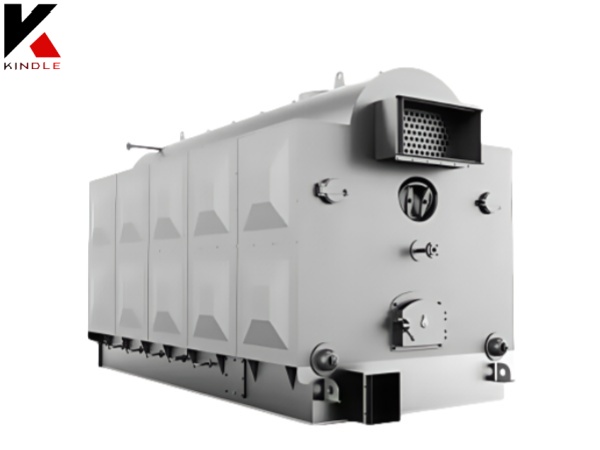

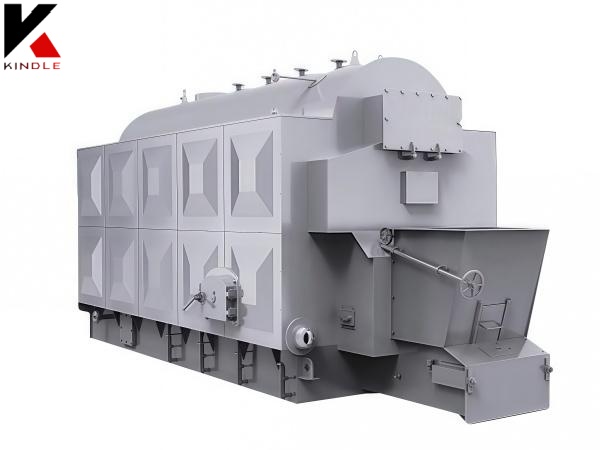

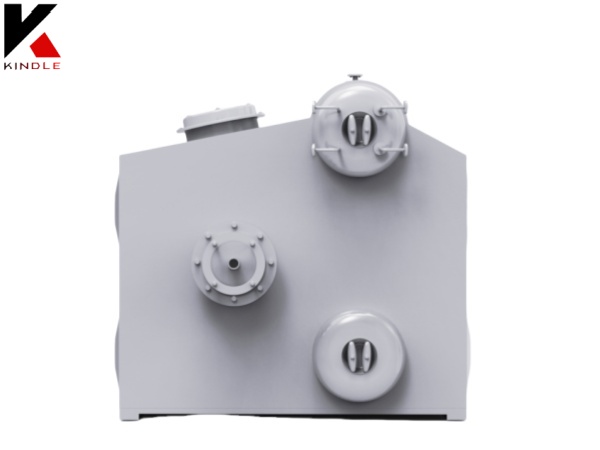

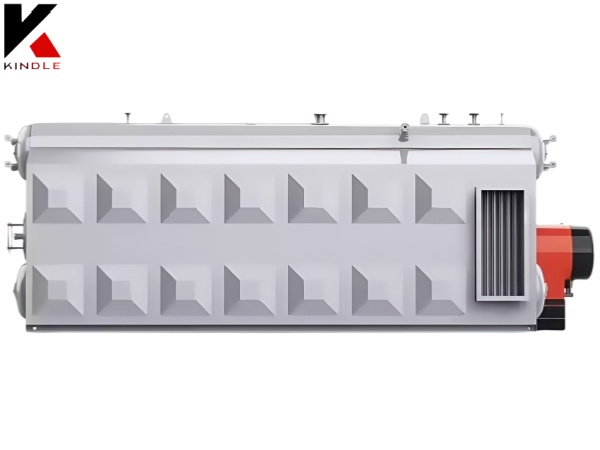

Horizon Master Industrial Boiler

The Horizontal Boiler adopts a horizontal cylinder design, with large capacity (15-100 tons/hour) and high thermal efficiency (92%+), suitable for continuous industrial heating.

Weight:	17000kg
Rated Steam Pressure:	0.7/1.25mpa
Rated Evaporation :	2T/H
Availability:



SEND INQUIRY

Model:
XQLSX260-50A
Brand:
KINDLE

boiler Horizon Boiler Industrial Boiler

Product Description

页眉1

Vertical Boiler

The Horizontal Boiler features a horizontal cylinder design with a combustion chamber and flue gas pipe arranged horizontally. It boasts a large capacity (15-100 tons/hour), high thermal efficiency (92%+), and a long lifespan. Its multi-pass flue gas path (typically 3-4 passes) allows for efficient waste heat recovery, making it suitable for industrial applications requiring continuous, stable steam, such as continuous hot pressing of plywood and paper drying. Spacious maintenance access facilitates easy inspection.

海报1_副本

Machine parameter

Name Model	YGL- 120MA	YGL- 240MA	YGL- 350MA	YGL- 500MA	YGL- 700MA	YGL- 1000MA	YGL- 1200MA	YGL- 1400MA
Rated power(kw)	120	240	350	500	700	1000	1200	1400
Thermal Efficiency (%)	75
Design Pressure (Mpa)	1.1
Rated Working Pressure (Mpa)	0.8
Highest Working Temperature (C)	<350
Furnace oil Volum(m3/h)	0.1	0.15	0.3	0.38	0.52	0.7	0.85	1.02
Circulation oin volume (m3/h)	10	20	30	40	60	80	100	100
Pipe connection diameter (DN)	40	65	80	80	100	125	125	125
Overall Size ( mm )	1220* 1140* 2550	1705* 1510* 3095	1873* 1683* 3358	2076* 1900* 3660	2276* 2100* 3840	2900* 2500* 4785	2900* 2500* 5133	3000* 2900* 5430
Reference Weihght (t)	2.2	2.7	3.4	3.9	4.8	7.4	8.0	10.2

product advantage

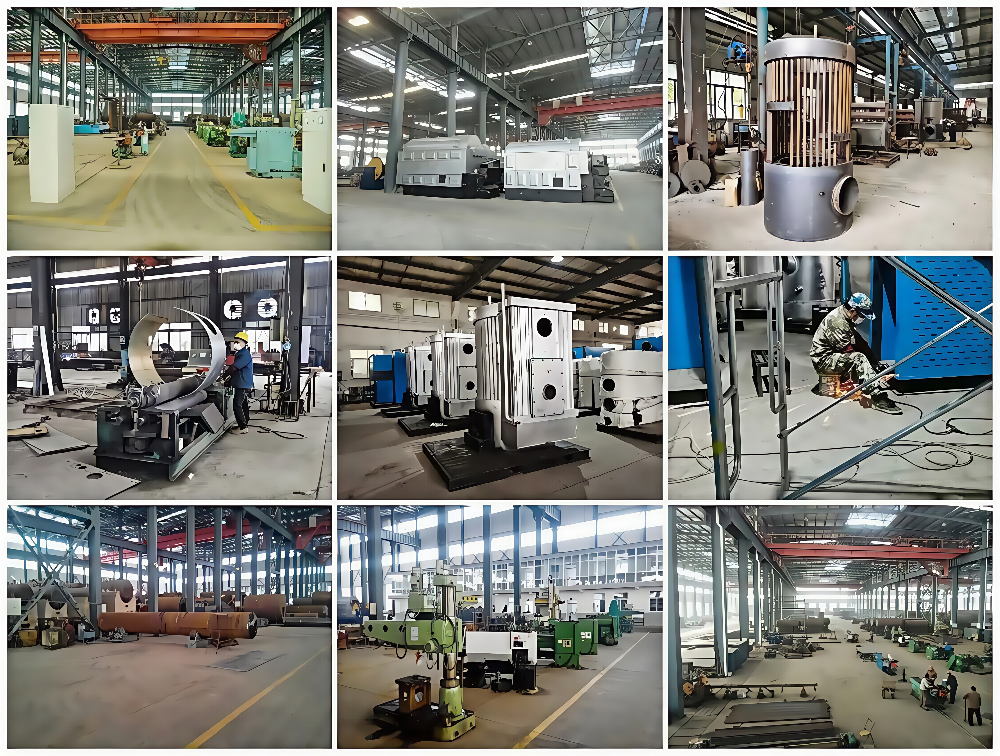

factory (2)

1.High Efficiency and Energy Saving: The horizontal boiler utilizes a multi-pass flue gas design, achieving a thermal efficiency exceeding 92%, significantly reducing fuel consumption and lowering operating costs.

2.Large-Capacity, Stable Steam Supply: The boiler boasts a high steam output (15-100 tons/hour) and stable pressure, suitable for continuous production and ensuring uninterrupted industrial processes.

3.Easy Maintenance: The horizontal structure provides ample access for maintenance, making key components easily accessible, reducing downtime and extending equipment life.

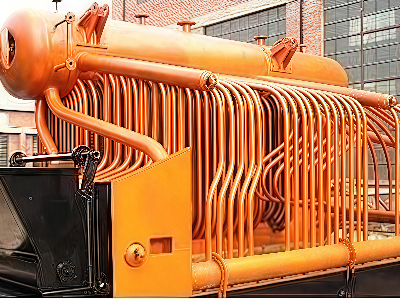

MACHINE DETAILS

number

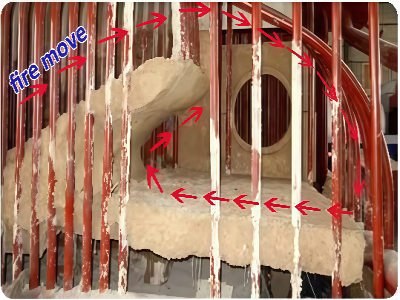

D TYPE OFFSRT FURNACE

Cutting-Edge D-Type Design: Optimized combustion chamber geometry for superior heat distribution. 15% improved thermal efficiency compared to conventional models. Patented heat recovery system reduces fuel consumption by 20-25%.

NUMBER-2

WHIRLWIND BURNING CHAMBER

Revolutionizing Combustion Efficiency with Advanced Vortex Technology. Vortex-Enhanced Burning: Creates intense swirling airflow to ensure 99.9% fuel burnout rate. Thermal Efficiency Boost: Increases overall boiler efficiency by 12-18%.

NUMBER-3

Y TYPE ARCH

Advanced Combustion Technology for Instant Ignition & Complete Burning. Instant Fire Start And Patented Aerodynamic Design, Creates turbulent airflow for immediate flame propagation.

WORKING SHOWING

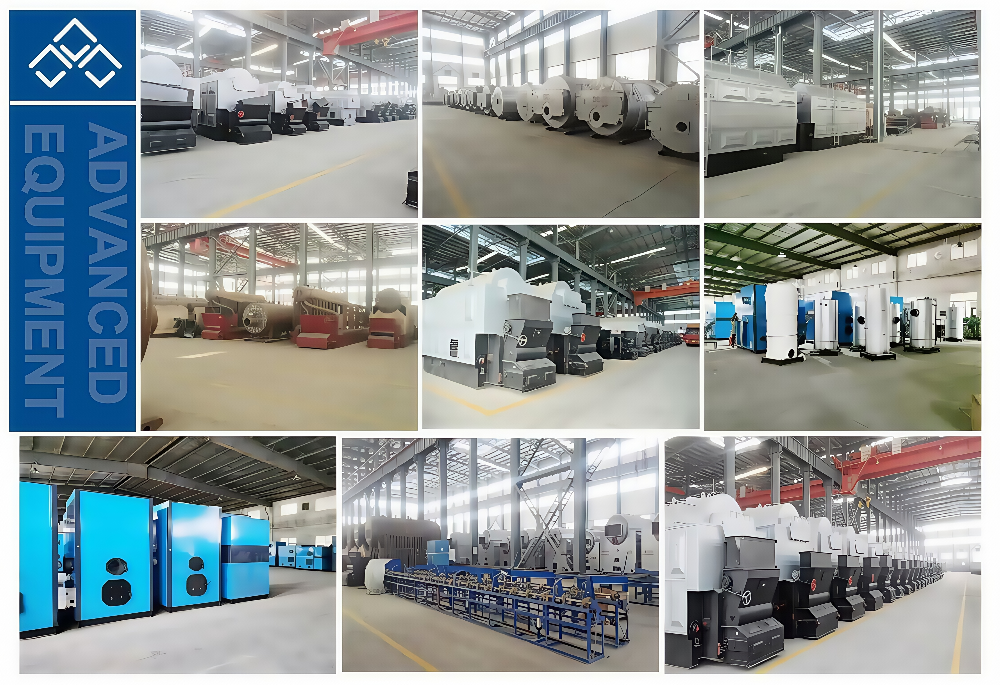

factory

Our boilers are exported to many countries like Malaysia,Indonesia, Russia, Turkey ,Brazil, Argentina, Paraguay and so on.

Spindle peeling machine

Veneer dryer

Veneer composer

Hot press

Glue spreader

plywood trimming saw

Automatic putty line

Calibrating machine

KINDLE COMPANY

workshop 2_副本

Shandong kindle Machinery manufacture limited company

located in Linyi national Economic and Technological Deve-

lopment Zone, it was founded in 1998 which specialized in

research and development of veneer peeling machine for 26

years. It have obtained more than 60 national patents , it covers more than 30000 area and have 15 R&D technician and 30 professional engineer for installation and machine maintaining.

We are committed to provide complete solutions for veneer

peeling line, plywood making plant,LVL,block board, PB,OSB production Line etc. Main equipment include: Log cutting saw, log debarker , spindle peeling lathe and spindleless wood veneer peeling machine,veneer dryer, glue spreader,pre-press, hot press, veneer commposer,plywood saw, sanding machine, boiler, and related plant accessories and materials, etc.

company introduce

PATENT SHOWING

patent

PACKAGE AND DELIVERY

微信截图_20250402140656

EXHIBITON SHOWING

EXHIBITON SHOWING 2

CUSTOMER VISITING

customer visiting 2

FAQ:

Q1: Are you machine manufacturer or a trading company?

A1: We are a factory which is special for producing veneer peeling machine and plywood machine,Jinduo company own 2 workshops and 1 trading company.

Q2: What is the delivery time?

A2: In generally speaking , the complete veneer product line need about 30 days to manufacture after getting deposit.

Q3: How quickly can you get the best price?

A3: (1) We need to know the capacity of the boiler, the fuel you plan to use and your steam pressure needs, then we can confirm the model.

(2) Customers need to provide us with your name, email address and company name, then we will send you the price list immediately. Moreover, if you use whatsapp, skype or wechat, then you can provide us your ID, which will be more convenient for us to communicate.

Q4: Why choose us?

A4: (1)Class A boiler production qualification factory with many years export experience;

(2)100% steel plate, steel pipe, welding rod without damage;

(3)100% x-ray inspection (welds): ensure the quality of the whole boiler;

(4) Water pressure test: to ensure standard working pressure and safety;

Q5: What is the service life of your boiler?

A5: Usually with proper operation and good maintenance, the boiler can last for more than 20 years.
