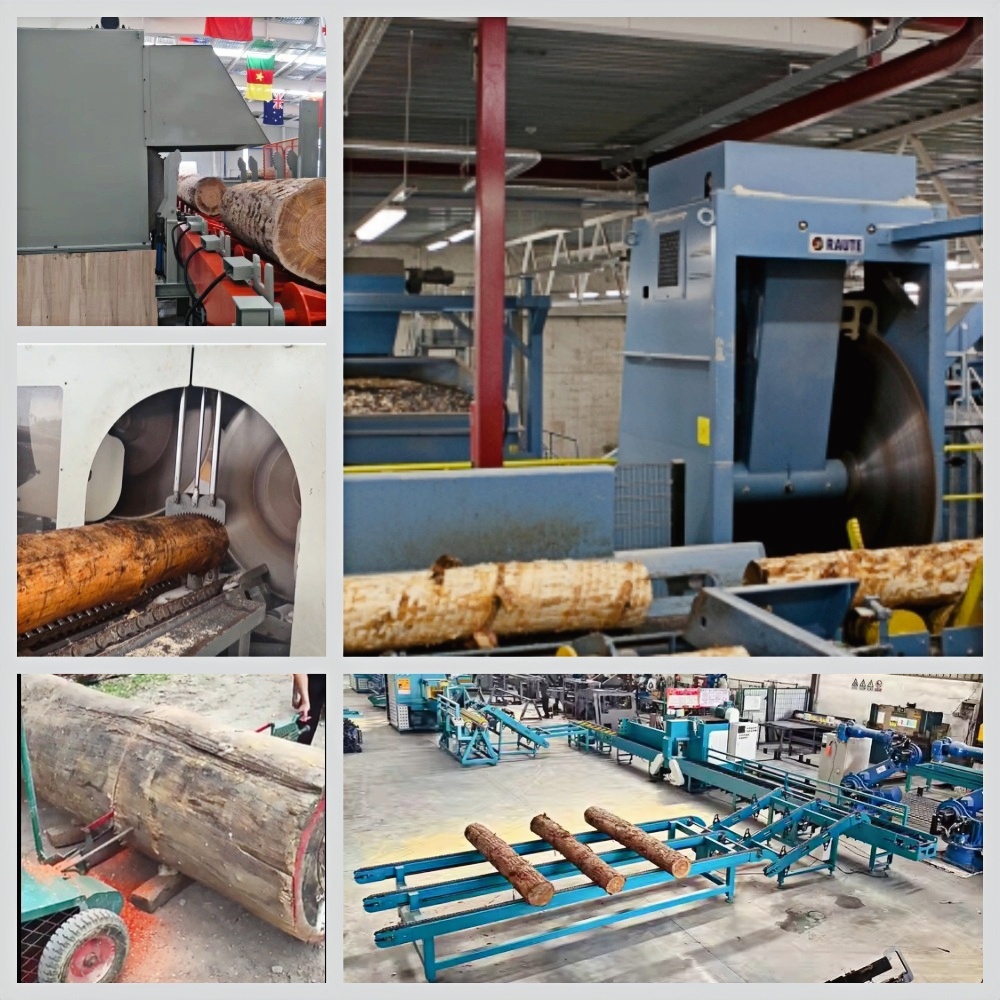

High Efficiency Log Slicing Machine

   The 8 feet log log slicing machine is a kind of mechanical equipment specially used for wood processing. It has significant advantages such as high efficiency, precision and easy operation. It is mainly used to trim the ends of round logs or wooden squares to achieve uniform length and specifications. This kind of equipment is widely used in veneer peeling factories, plywood factories, wood processing plants, wooden pallet wood floor manufacturers, wooden packaging box manufacturers, etc. It is an important part of the wood processing assembly line.

The working principle of the plywood veneer log cutter is to send the wood into the sawing area through a chain or conveyor belt, and the alloy saw blade cuts the wood at high speed. The equipment is usually equipped with automatic feeding, clamping, sawing and discharging functions, which can realize continuous operation and greatly improve production efficiency.

Machine parameter

1. Our hanvy log cutting sawing is made of five main parts: Log cross feeder , Stepper log feeder, Log longitudinal

    infeeder, circular blade cutting saw, Log longitudinal out-feeder.

2.The first step of cross feeder is 4-chains type to store and sort the log.
3.The stepper log feeder to make sure the logs go into the in-feeder conveyor one by one.
4.Saw two types: Chain type or circular saw type , any is ok.
5.Out feeder parts with log turning device.



HIGH SPEED STEEL MATERIAL OF SAW BLADE

        High - speed steel saw blades offer sharp cutting edges, high wear - resistance, and can maintain performance at elevated temperatures, ensuring long - lasting, efficient cutting.

CHAIN SAW BLADE

    If the log diameter is bigger than 500mm, the circle blade will not be suitable, because the blade diameter will be much bigger and too heavy, in this situation,this Chain blade will be much better, can cut big diameter log more than 1000mm easily





TRIPLE CUTTING BLADE

  This three blades can cut 8 feet log into 2 pieces 4 feet log in one time, what's more , it also can trimming the log edge to smooth, when log go to peeling machine , the veneer edge will be also tidiness

CONTROL UNIT

    The log saw clamping arm device serves crucial functions. It firmly secures the log in place during cutting, preventing movement and ensuring precision. By maintaining stability, it enables the saw blade to make clean, accurate cuts. This device also helps in handling logs of various sizes, enhancing the overall efficiency and safety of the log - cutting process.

    Our log cutting saw machine,log debarker and automatic veneer peeling line are exported to many countries like Malaysia,Indonesia, Russia, Turkey ,Brazil, Argentina, Paraguay and so on.

---

Veneer peeling line

Veneer dryer

Veneer composer

Hot press

Glue spreader

plywood trimming saw

Automatic putty line

Calibrating machine

Shandong kindle Machinery manufacture limited company

located in Linyi national Economic and Technological Deve-

lopment Zone, it was founded in 1998 which specialized in

research and development of veneer peeling machine for 26

years. It have obtained more than 60 national patents , it covers more than 30000 area and have 15 R&D technician and 30 professional engineer for installation and machine maintaining.

We are committed to provide complete solutions for veneer

peeling line, plywood making plant,LVL,block board, PB,OSB production Line etc. Main equipment include: Log cutting saw, log debarker , spindle peeling lathe and spindleless wood veneer peeling machine,veneer dryer, glue spreader,pre-press, hot press, veneer commposer,plywood saw, sanding machine, boiler, and related plant accessories and materials, etc.

Q1:Are you machine manufacturer or a trading company?

A1: we are a factory which is special for producing veneer peeling machine and plywood machine,Jinduo company own 2 workshops and 1 trading company

Q2:What is the delivery time?

A2:In generally speaking , the complete veneer product line need about 30 days to manufacture after getting deposit.

Q3: what is the maintenance period and what kind of after sale service can you supply?

A3: the machinery part maintenance will be sustained in one year after installation and we have abroad warehouse and office for spare part in brazil and Russia, our engineer will arrive your factory to maintain the machine at first time if have problem.

Q4: what is the payment term?

A4: we can accept TT with 30% deposit and 70% balance against loading bill or 100% irrevocable L/C at sight.

Q5:can we visit your factory?

A6: Jinduo company is next to linyi airport, we can pick you up from airport to our factory at any time, welcome to visit us.
