4 feet automatic cam model wood veneer rotary peeling machine

Share to:

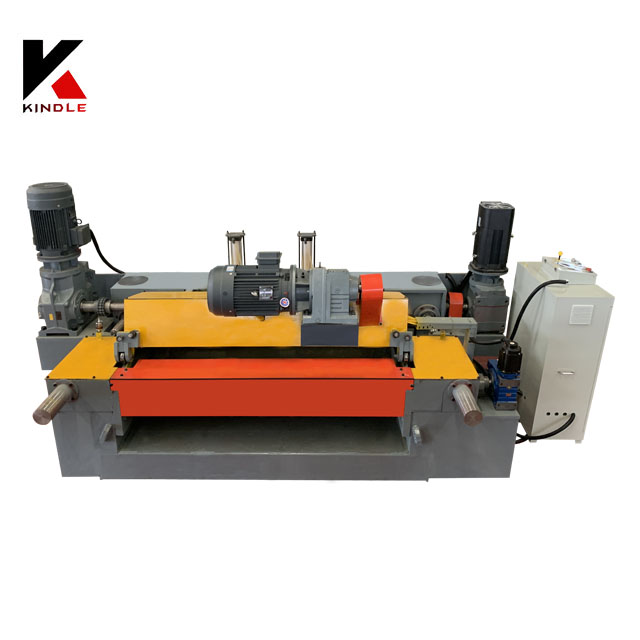

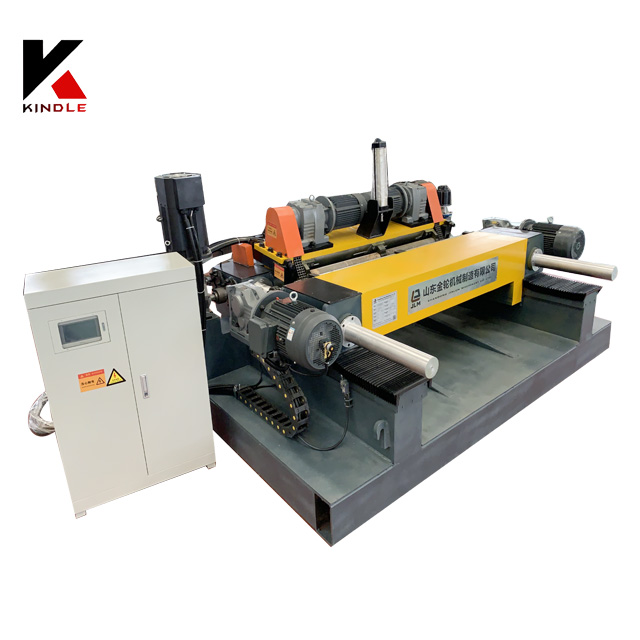

4 feet automatic thickness veneer rotary peeler

4 feet high speed cam model wood rotary peeling machine is not only improves the quality and precision of veneer production, but also greatly improves the production efficiency and the degree of automation of the whole machine.The veneer peeling line is one of the main equipment for producing plywood. The 4 feet peeling machine is special for 1300mm log, it's the most important machine in plywood produce.

Maximum log length:	1300MM
MAX. LOG DIAMETER:	500MM
veneer thickness:	0.6-7.5mm
speed :	40-100m/min
Availability:



SEND INQUIRY

Model:
JDXQ130-50TL
Brand:
KINDLE

veneer rotary peeler Veneer peeling machine automatic veneer peeler

Product Description

wood veneer produce product description

Automatic veneer peeling machine

The wood veneer rotary peeling machine not only improves the quality and precision of veneer production, but also greatly improves the production efficiency and the degree of automation of the whole machine. the veneer peeling line is one of the main equipment for producing plywood. The complete peeling line include log conveyor, the debarker, log position corrector, veneer peeling machine and stacker, also with some waste conveyor with cusomized designing. the wood veneer peeling machine is very popular and necessary in veneer and plywood production project.

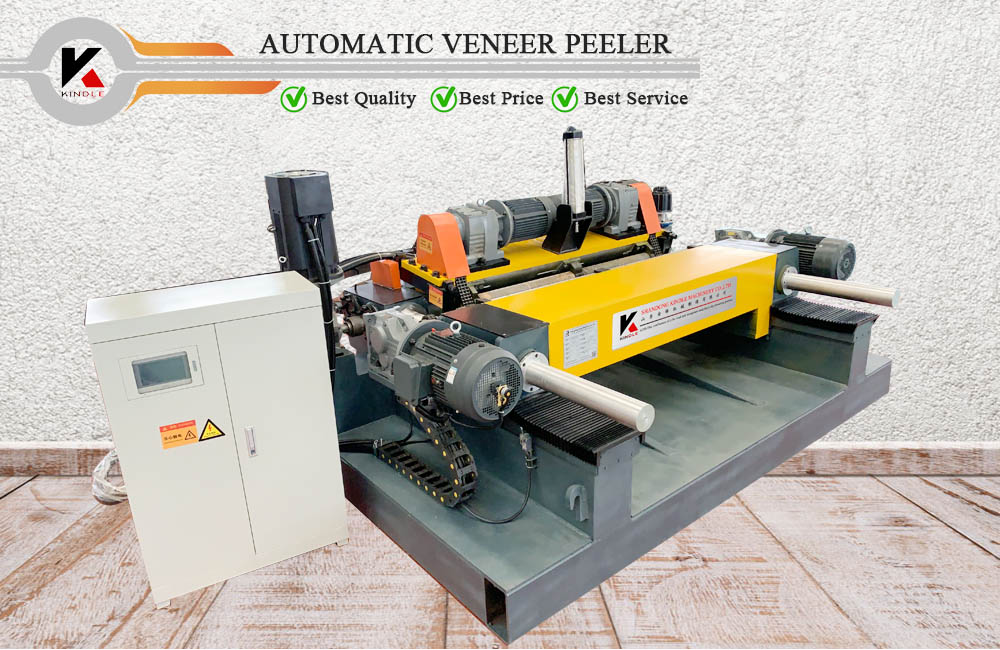

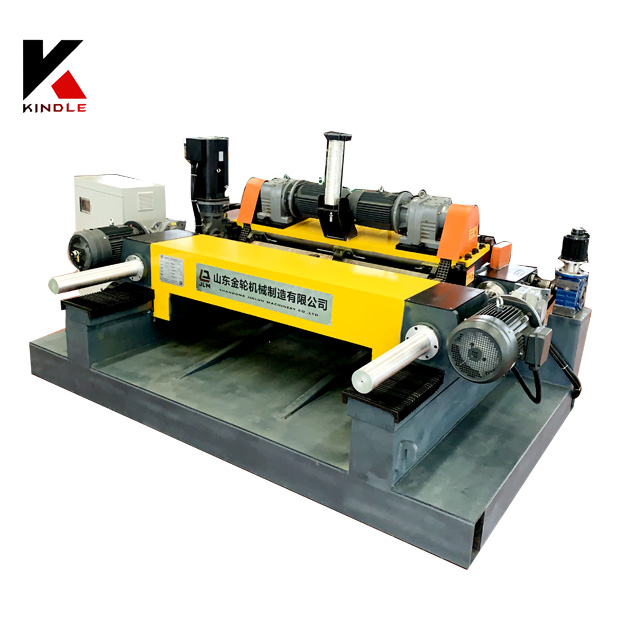

automatic veneer peeler main picture

Machine parameter

Model	JDXQ130-50TL	JDXQ260-50TL
Maximum log length	1300mm	2600mm
Maximum log diameter	500mm	500mm
Blade size	150018016mm	270018016mm
Veneer thickness	0.6-7.5MM	0.6-7.5mm
thickness tolerance	±0.075mm	±0.075mm
working speed	30-100m/min	30-100m/min
product capacity	35-50m³/day	70-100m³/day
veneer cutting width	>400mm	>400mm
Roller diameter	101/125mm	101/125mm
Total power	58kw	81kw
Double roller power	2*11kw	2*15kw
Single roller power	2*11kw	2*15kw
Feeding power	11kw(servo motor)	15kw(servo motor)
Clipper power	1.5kw(servo motor)	3kw(servo motor)
conveyor power	1.5kw	3kw
Weight	7800kgs	12600kgs
Overall size	420021001450mm	560022001750mm

VENEER PEELER

product advantage

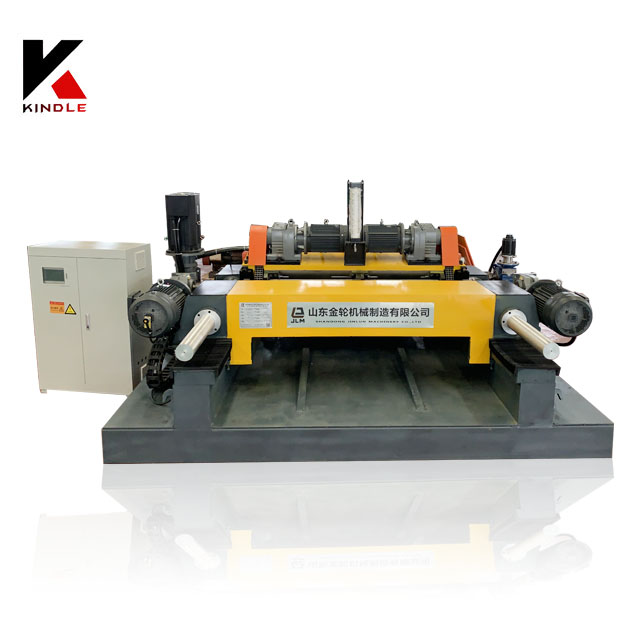

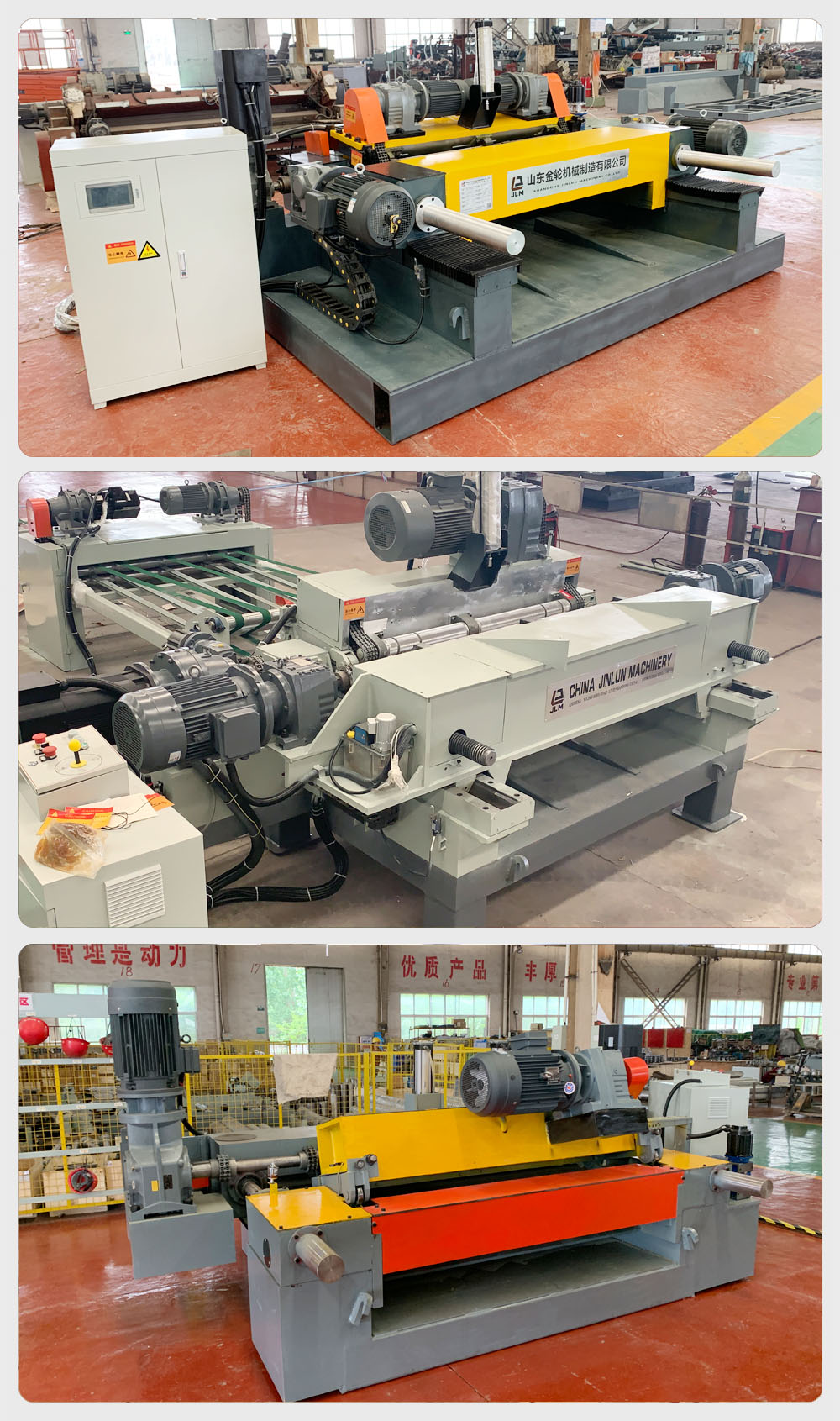

4 feet cam model peeling machine showing

Japan bearing ensure smooth and steady operation of machine
T10 reducer-low vibration,smooth and steady transmission,low noise.
Hydraulic knife holder saving manpower,simple operation and automation
Automatic adjust knife sewing--double convex rail design structure,more accurate,faster and more stable
than original single convex rail adjustment,and no manual screw adjustment workers,saving manpower.

MACHINE DETAILS

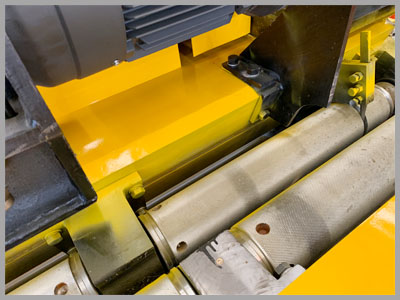

PEELING MACHINE ROLLER

The peeling machine roller use No.45 steel ,ensure the raw material strength, the Roller surface is treated by plating chrome and through heating process , this process can improve the roller hardness and the wear resistance, ensure the veneer machine can work stably and smoothly.

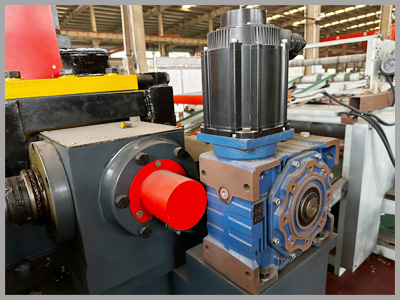

SYNCHRONOUS SERVO MOTOR

This is the high precision synchronous servo motor which is used to control the angle of cam, in peeling process, different log diameter should be matched with different roller diameter to keep the working pressure same. the control unit transport signal to this motor and the motor drive the cam in corrector position to get a suitable pressure to log.

PRESSURE CONTORL CAM

The pressure of log in peeling is adjusted by this high precision cam, in order to keep the pressure same in different log diameter, the angle of cam should be turned in different position, because the log pressure is proportionate in peeling, so the veneer thickness is more equal and the surface is more smooth,this is the kernel of this cam model peeling machine.

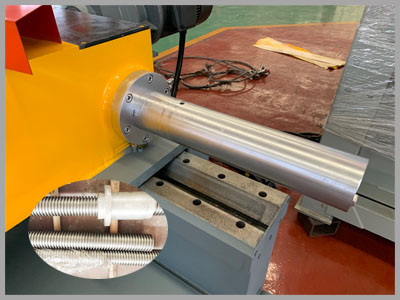

MACHINE SCREW AND NUT

The screw and nut are soaked in lubricating oil , reduce the screw wear and radiating Heating quickly, so this part can work with a longer time and ensure the running precision, this is a main factor that promise the veneer quality

NUMBER-5

HIGH PRECISION GUIDE RAIL

Adopt Cast guide rail which is used on high precision lathe tool, can not be damaged and broken, ensure the feeding system moving strictly based on the control system, this guide rail can work all machine life, don't need to change.

NUMBER-6

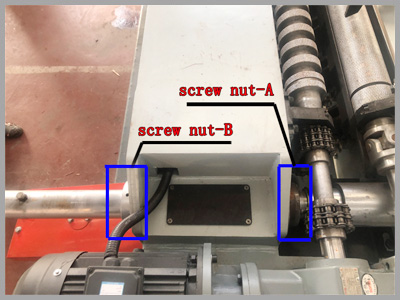

DOUBLE SCREW NUT

Adopt double screw nut designing, reduce the nut wear and promise the double roller bed can feed fixed, so increase the veneer quality and machine working stable, when main screw A is worn, the associate screw B will continue to work in high precision.

NUMBER-7

AUTOMATIC CONTROL SYSTEM

The electric parts choose famous brand in world such as siemens or ABB,we have our own control program and research department, our company have reliable ability to design the machine function according to customer demands

we can also supply remote maintenance and update the system for at any time, there is a internet port on screen , customer just need to connect the machine to internet, then we will maintain and update customer machine in china.

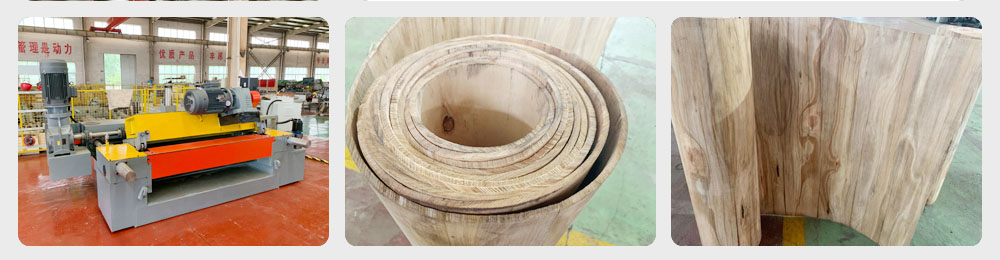

7mm veneer peeling machine

WORKING SHOWING

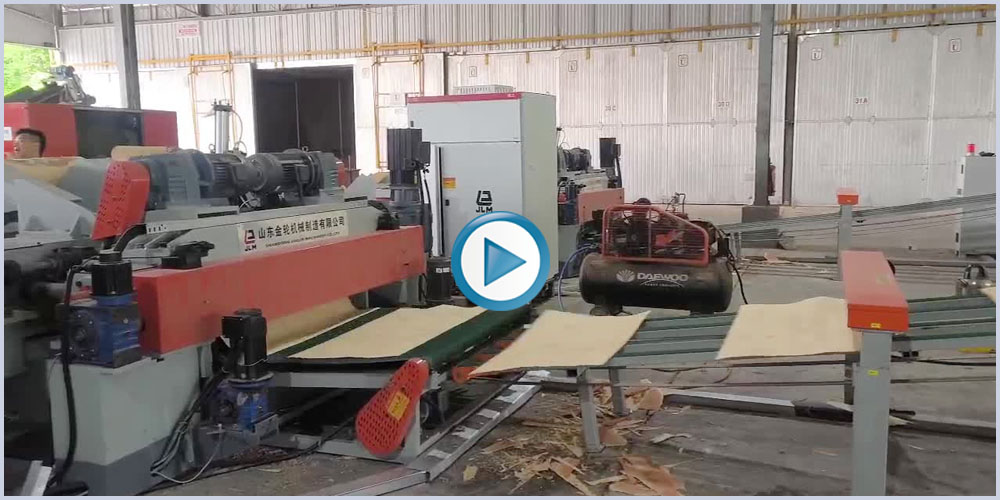

4 feet peeling machine working picture

Our Veneer peeling machine and automatic peeling line are exported to many countries like Malaysia,Indonesia, Russia, Turkey ,Brazil, Argentina, Paraguay and so on.

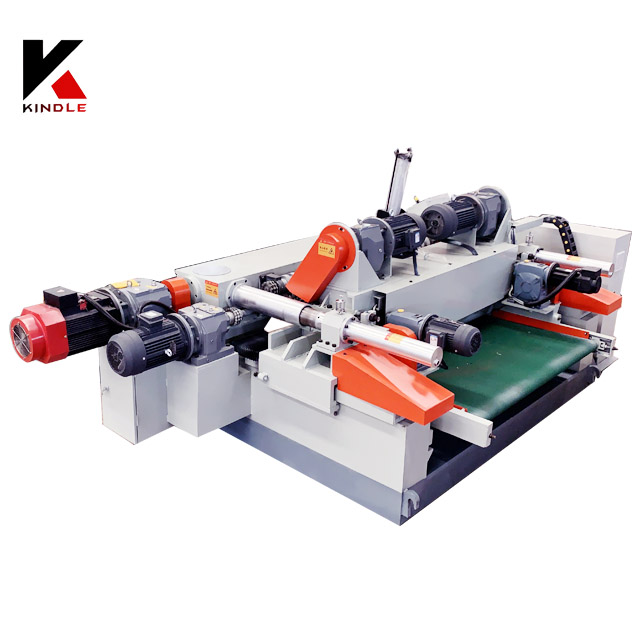

Spindle peeling machine

Veneer dryer

Veneer composer

Hot press

Glue spreader

plywood trimming saw

Automatic putty line

Calibrating machine

KINDLE COMPANY

workshop 2

Shandong kindle Machinery manufacture limited company

located in Linyi national Economic and Technological Deve-

lopment Zone, it was founded in 1998 which specialized in

research and development of veneer peeling machine for 26

years. It have obtained more than 60 national patents , it covers more than 30000㎡ area and have 15 R&D technician and 30 professional engineer for installation and machine maintaining.

We are committed to provide complete solutions for veneer

peeling line, plywood making plant,LVL,block board, PB,OSB production Line etc. Main equipment include: Log cutting saw, log debarker , spindle peeling lathe and spindleless wood veneer peeling machine,veneer dryer, glue spreader,pre-press, hot press, veneer commposer,plywood saw, sanding machine, boiler, and related plant accessories and materials, etc.

company introduce

PATENT SHOWING

patent

PACKAGE AND DELIVERY

package and delivery

EXHIBITON SHOWING

EXHIBITON SHOWING 2

CUSTOMER VISITING

customer visiting 2

FAQ:

Q1:Are you machine manufacturer or a trading company?

A1: we are a factory which is special for producing veneer peeling machine and plywood machine,Jinduo company own 2 workshops and 1 trading company

Q2:What is the delivery time?

A2:In generally speaking , the complete veneer product line need about 30 days to manufacture after getting deposit.

Q3: what is the maintenance period and what kind of after sale service can you supply?

A3: the machinery part maintenance will be sustained in one year after installation and we have abroad warehouse and office for spare part in brazil and Russia, our engineer will arrive your factory to maintain the machine at first time if have problem.

Q4: what is the payment term?

A4: we can accept TT with 30% deposit and 70% balance against loading bill or 100% irrevocable L/C at sight.

Q5:can we visit your factory?

A6: Jinduo company is next to linyi airport, we can pick you up from airport to our factory at any time, welcome to visit us.
