JDRY48-500T
kindle

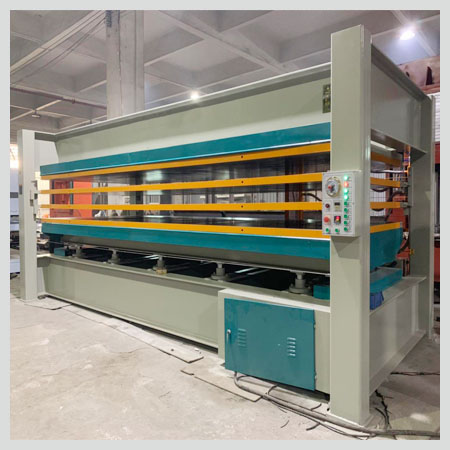

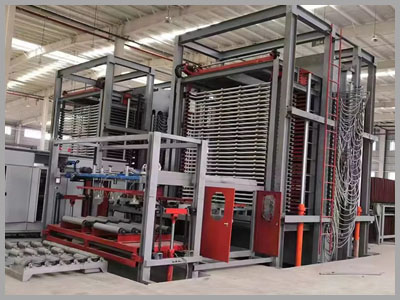

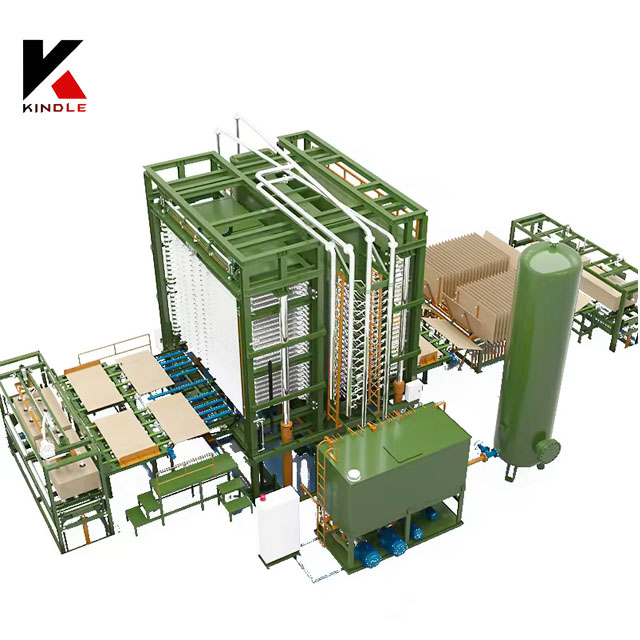

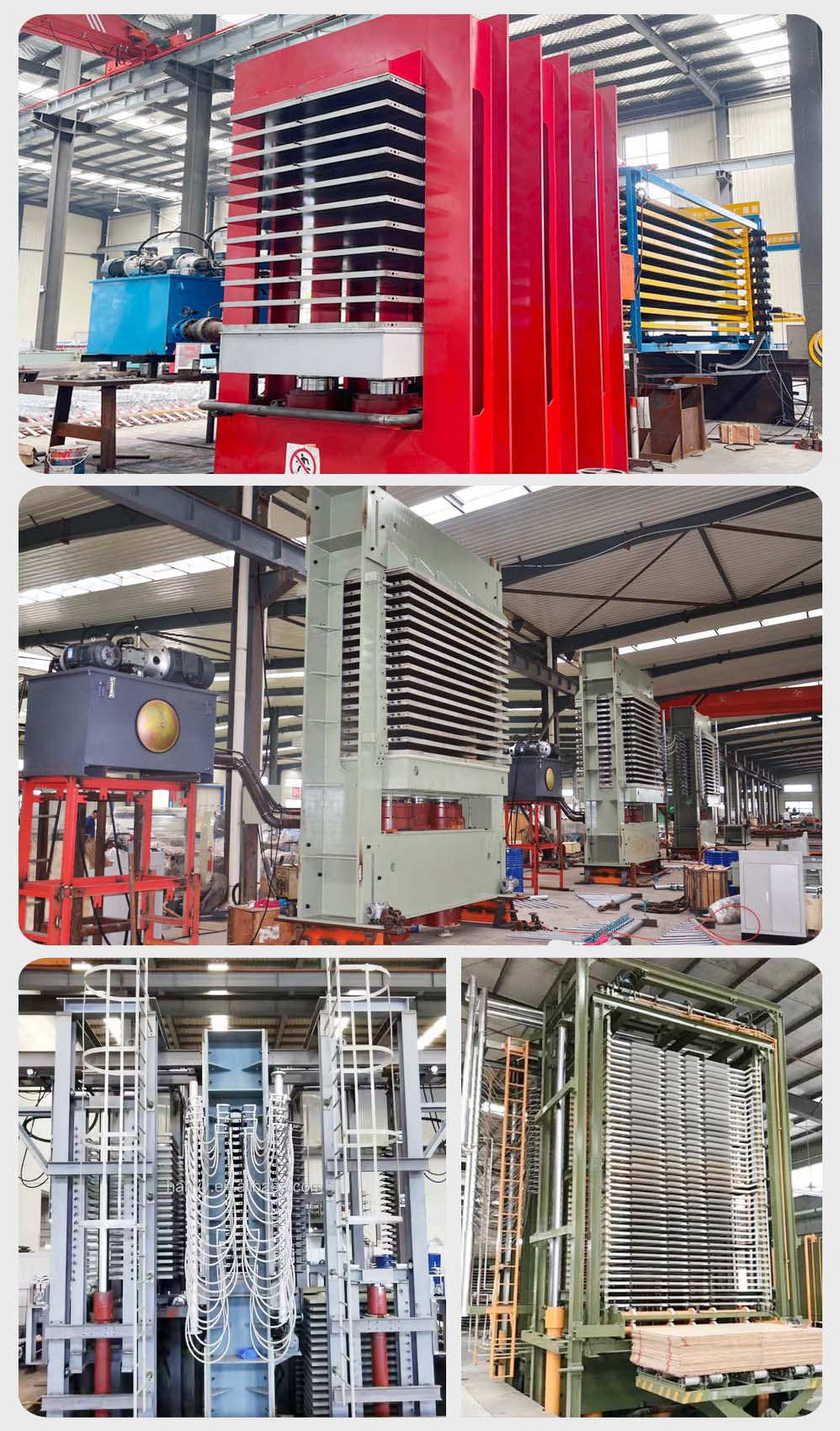

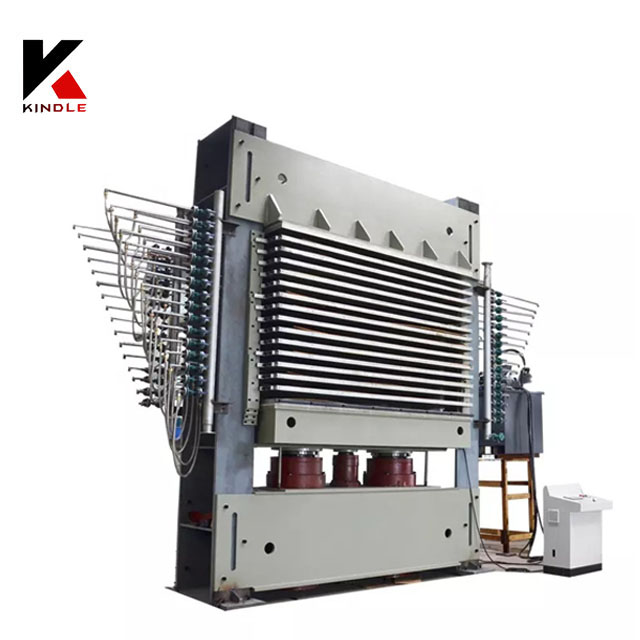

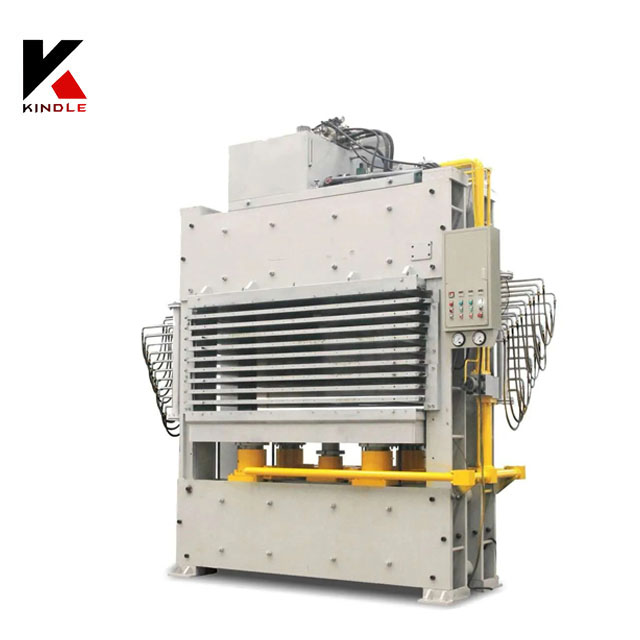

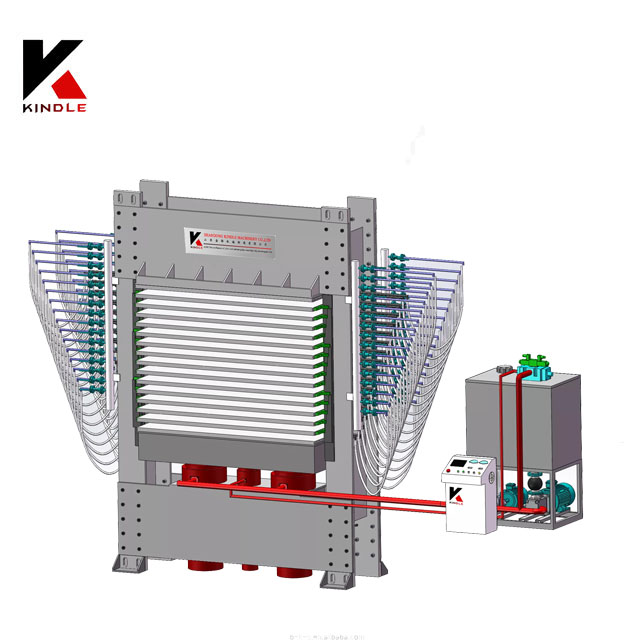

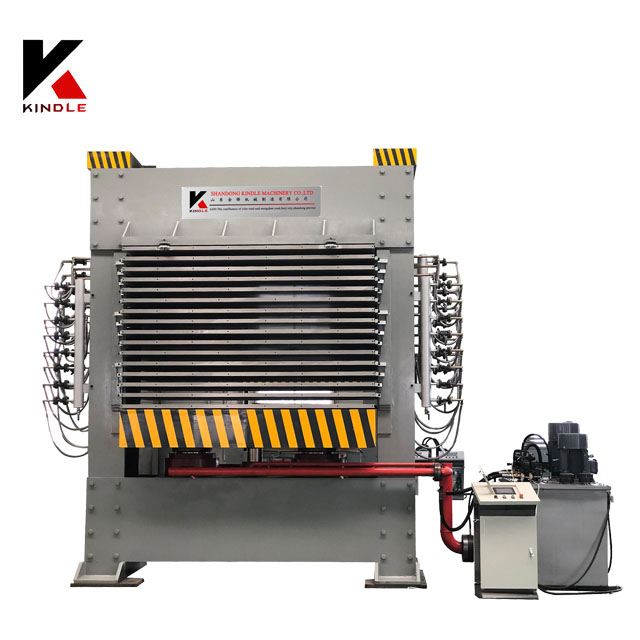

PLYWOOD HOT PRESSS MACHINE
The hot pressing system, heating system, and heat conduction system feature a lightweight and meticulous design. They consume less heat and ensure uniform heat conduction. The mechanism is installed on the surface of the hot pressing machine. With a reasonable layout, the machine's parts are machined with high precision. The process parameters can be adjusted over a wide range, and the overall process control design is rational. This setup can meet a diverse range of requirements for veneer production processes
HOT PRESS MACHINE PARAMETER:
Nominal pressure | 500 |
Direction of boards in | transverse |
Layers | 15 |
Openning | 70mm |
Quantity of hot platens | 16 |

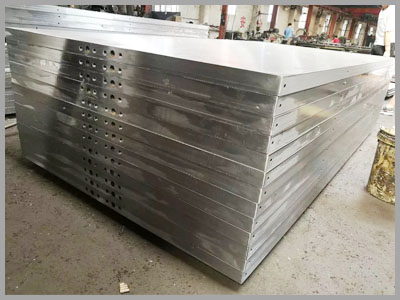

Size of hot platens | 1370×2700×52mm |
Quantity of cylinders | 2 |
Diameter of cylinders | Φ360mm*2pce |
Stroke of cylinders | 1500mm |
Allowed pressure | ≤25Mpa |
Closing time of No-load | 15 |
diameter of lifting cylinders | Φ140mm*2 |

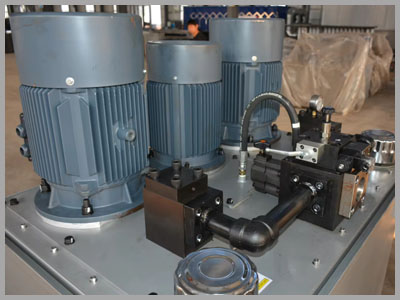

Flow of low pressure pump | 95L/min |
Allowed pressure | ≤3Mpa |
Power of low pressure pump | 22kw |
Flow of high pressure pump | 25 （L/min） |
Allowed pressure | ≤25Mpa |
Power of high pressure pump | 11 kw |
Size of finished boards | 1220×2440mm |
Dimension of whole machines | 3600*1370*4700mm |

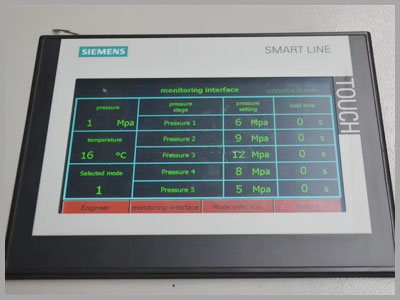

Controlling methods | Automatic pump station |
Main steel plate | 40mm |
Methods of frames | assembled frame by screw |
Weight of whole machine | about 37000kgs |
1.Heavy,solid and reliable complete structure, which is 3-4 tons heavier than others.
2.Platens has double enters and double exits, which ensure a high efficient, and small temperature difference.
3.Each platen has his own control valve.This ensure a easy maintenance in future.
4.Input and output tubes of steam and heat conduction oil are alternative.

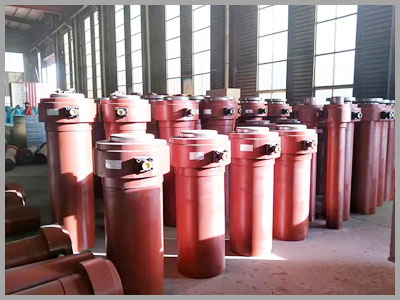

5.Oil cylinder with bigger diameter, heavy duty.And inside pillar is solid while others may be hallow.

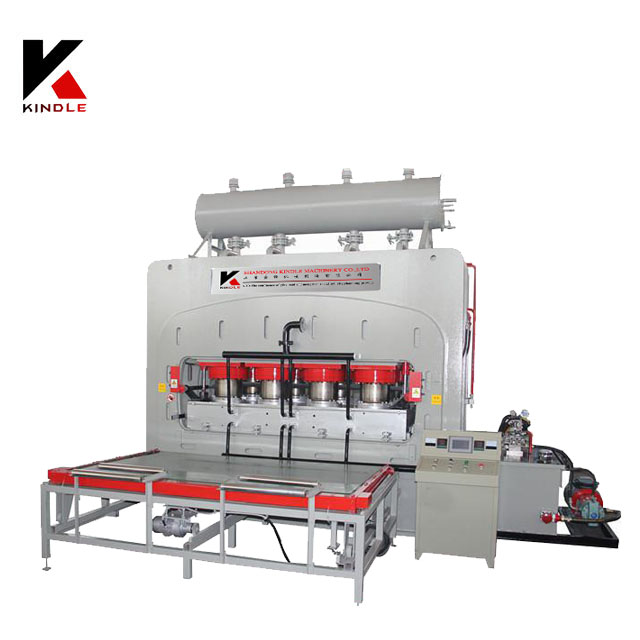

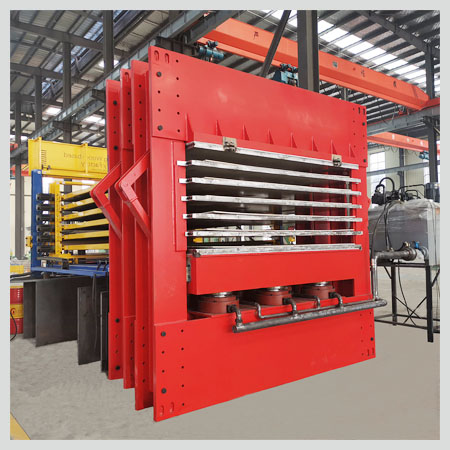

PLYWOOD FILMING HOT PRESS
