| Total power: | |
|---|---|
| Weight: | |
| Grinding precision: | |
JDMD7130-MK
KINDLE
VENEER CLIPPER

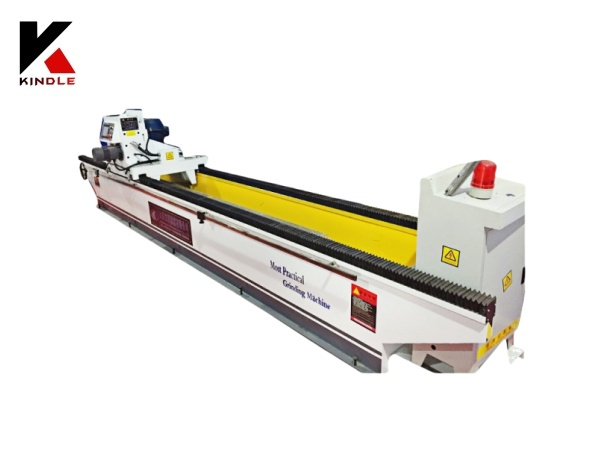

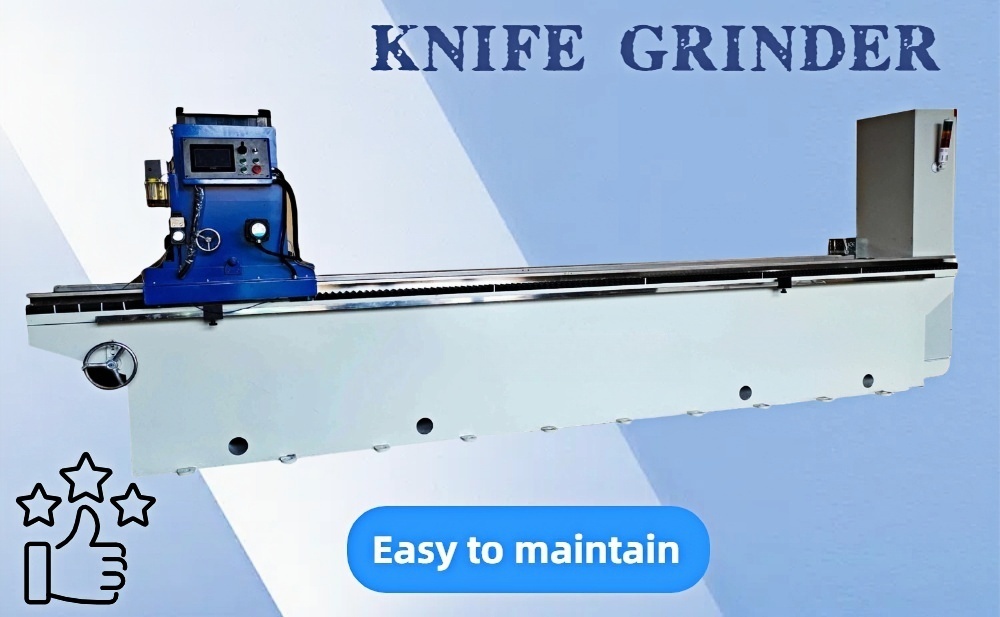

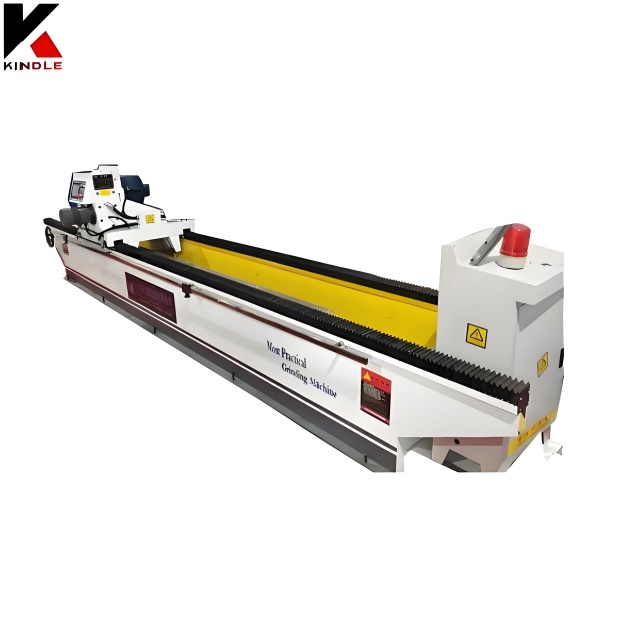

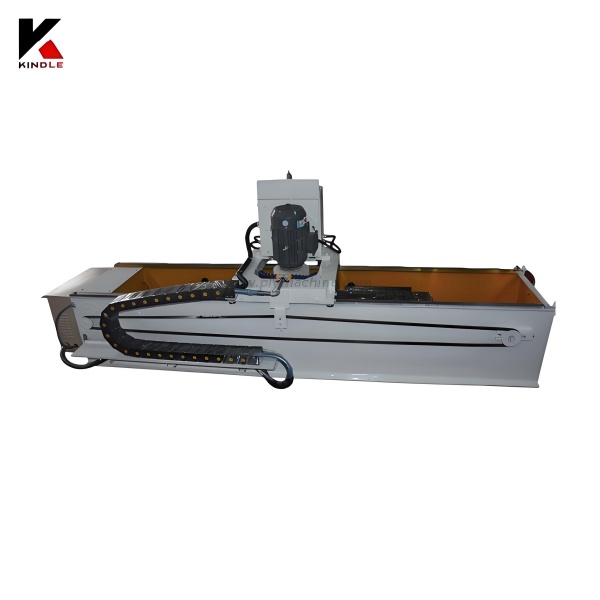

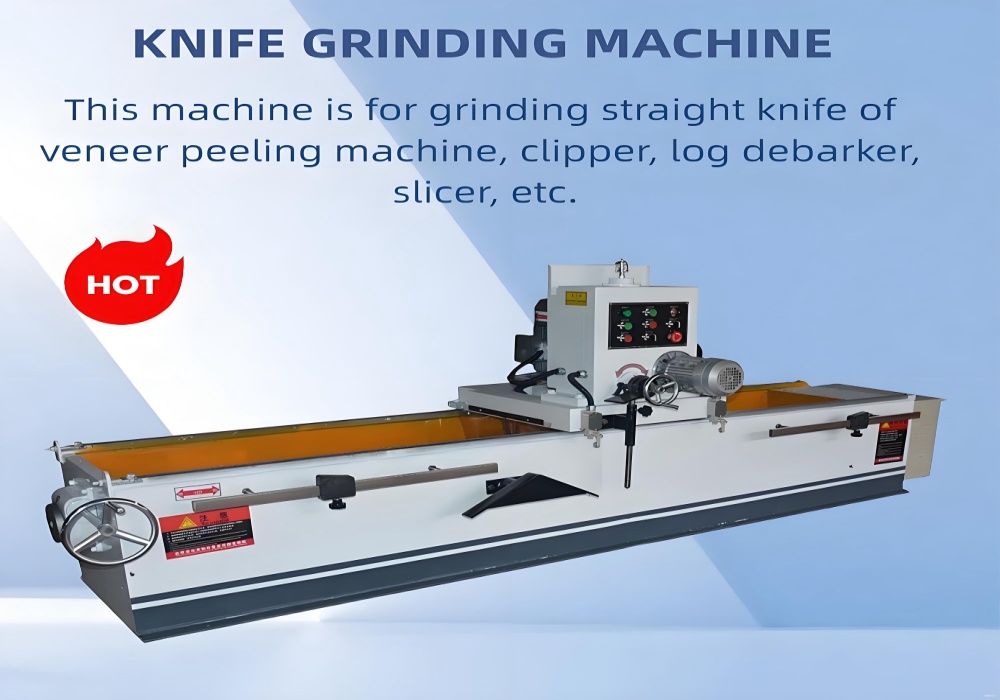

Knife grinder is the machine which for grinding peeling knife edge when it become blunt, the knife grinder with magnetic table, which can automatic grinding knife edge forward and backward, until reach the setted grinding thickness. Except for the standard peeling knife length like 1500mm and 2700mm, we also can customize the knife grinder as your knife length. For our knife grinder, we use good and thick steel material to make its body, so our knife grinder is heavy compare others, and we use good accessories, to make sure it works well and keep long life span
Machine parameter
| Model | JDMD7130-MK |
| Working table size | 3170*180mm |
| Sanding wheel size | 200*100mm |
| Working table angle | ±90° |
| Sanding wheel angle | ±5° |
| Overall size | 5850*1300*1500mm |
The walking system of the machine tool adopts a cycloidal pinwheel reducer and a national standard motor to achieve stable walking and greatly improve the quality and work efficiency of knife grinding.
The guide rails of the machine tool adopt square linear guide rails, and the upper part of the guide rail adopts an accordion extension type, dustproof and waterproof cover.
The whole machine adopts centralized oil supply, which makes the machine tool cleaner and extends the service life of the guide rail.
The grinding head adopts a national standard special grinder motor with a reasonable design to improve the grinding accuracy and extend the service life.
The electromagnetic disk adopts the national standard high-quality and durable electromagnetic suction cup, which has low heat generation, strong suction and long service life.
