| Output: | |
|---|---|
| Thickness: | |
| Total power: | |
| Availability: | |
NZX260-4MM
KINDLE

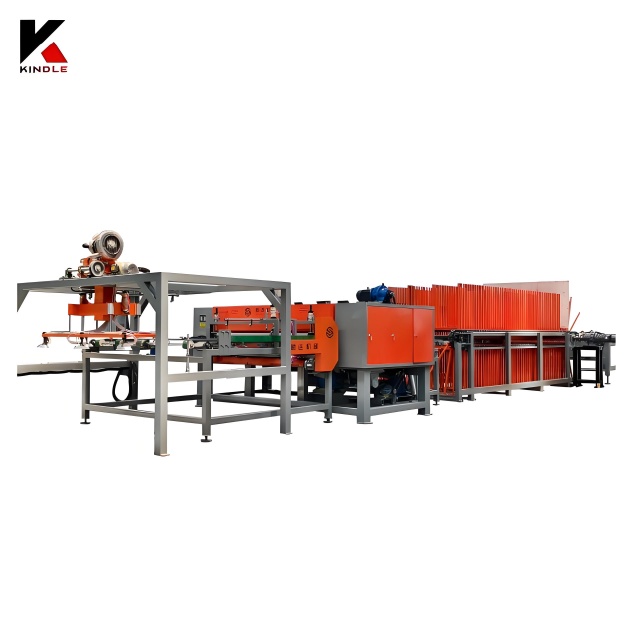

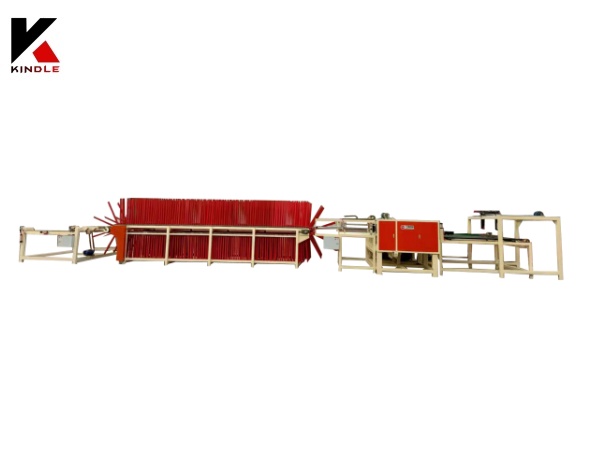

This 8 feet plywood panel repair line is specially designed for large-size plywood boards, suitable for thick and wide wood panels used in construction and furniture industries. It integrates automatic feeding, precise putty filling, constant temperature drying and finished board discharging into one streamlined process. The equipment accurately repairs surface pinholes, cracks and uneven defects on large plywood panels with uniform putty thickness and smooth board surface. Adopting reinforced rack structure, it runs steadily without board deviation during processing, adapting to long and large plywood raw materials. This line reduces manual polishing and repeated repairing procedures, cutting labor costs and material loss. With high continuous working capacity, it meets mass production demands for large-size plywood, being practical and high cost-effective for large-scale plywood manufacturing plants.

Machine parameter
| Model | NZX260-4MM |
| Output | 3000pcs/8h |
| Thickness | 4~35mm |
| Total power | 35.5kw |
| Over size | 15500*6500mm |
| Calibration roller platform | 3000*1700*950mm |
| Putty machine | 1900*2200*1600mm |
| Cooling rack lenth | 10-20m |
| Auto stacker | Automatic stacking plywood with lift table |



This 8 feet plywood repair line is professionally engineered for large-size plywood to meet the production demand of broad and long wood panels.
The all-in-one automatic processing workflow simplifies panel repairing procedures and greatly improves overall production efficiency.
Precision putty filling technology perfectly repairs pinholes and cracks to obtain flat and high-quality plywood surfaces.
The reinforced mechanical structure ensures stable operation without plate deviation during long-size board processing.
This equipment effectively reduces labor dependence and material waste, bringing high economic benefits for plywood manufacturers.


DRYING RACK
The drying rack provides ample space for plywood to dry naturally after putty scraping. Its structure ensures good air circulation, promoting even drying without defects.

ROLLER CONVEYOR SYSTEM
The roller conveyor, a key part, uses evenly spaced rollers to transport plywood smoothly through each stage. It ensures stable and friction - reduced movement, maintaining plywood alignment for accurate putty application.

PUTTY APPLICATION AND FINISHING UNIT
This unit features specialized nozzles and tools to apply putty evenly on plywood. After application, it has a finishing mechanism to smooth the surface, creating a flawless base for subsequent plywood processing.

LIFITING TABLE At STACKING STAGE
The lifting table at the end adjusts height automatically during stacking. It lifts to stack finished plywood neatly, adapting to different stack heights. Ensures organized, damage - free final storage.

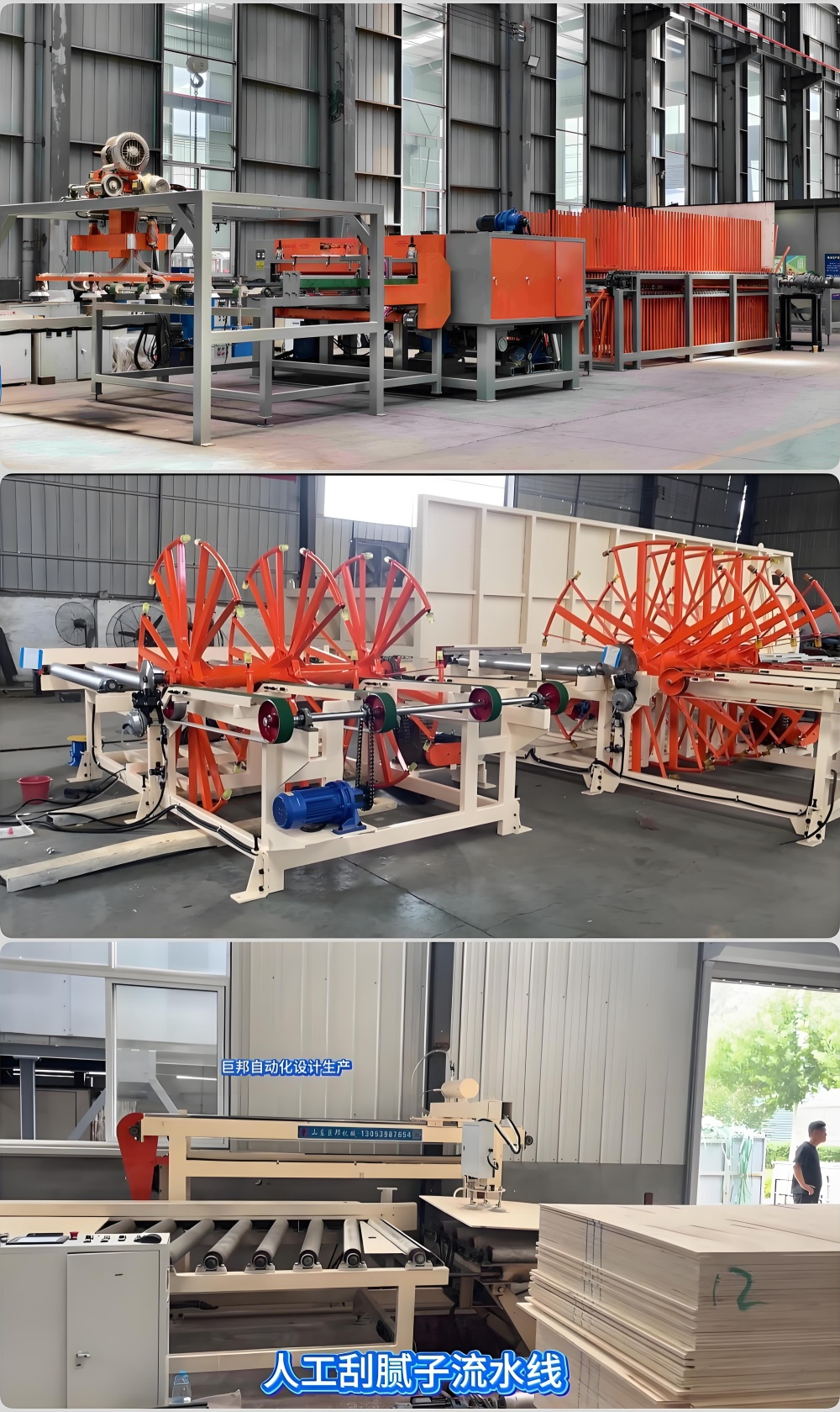

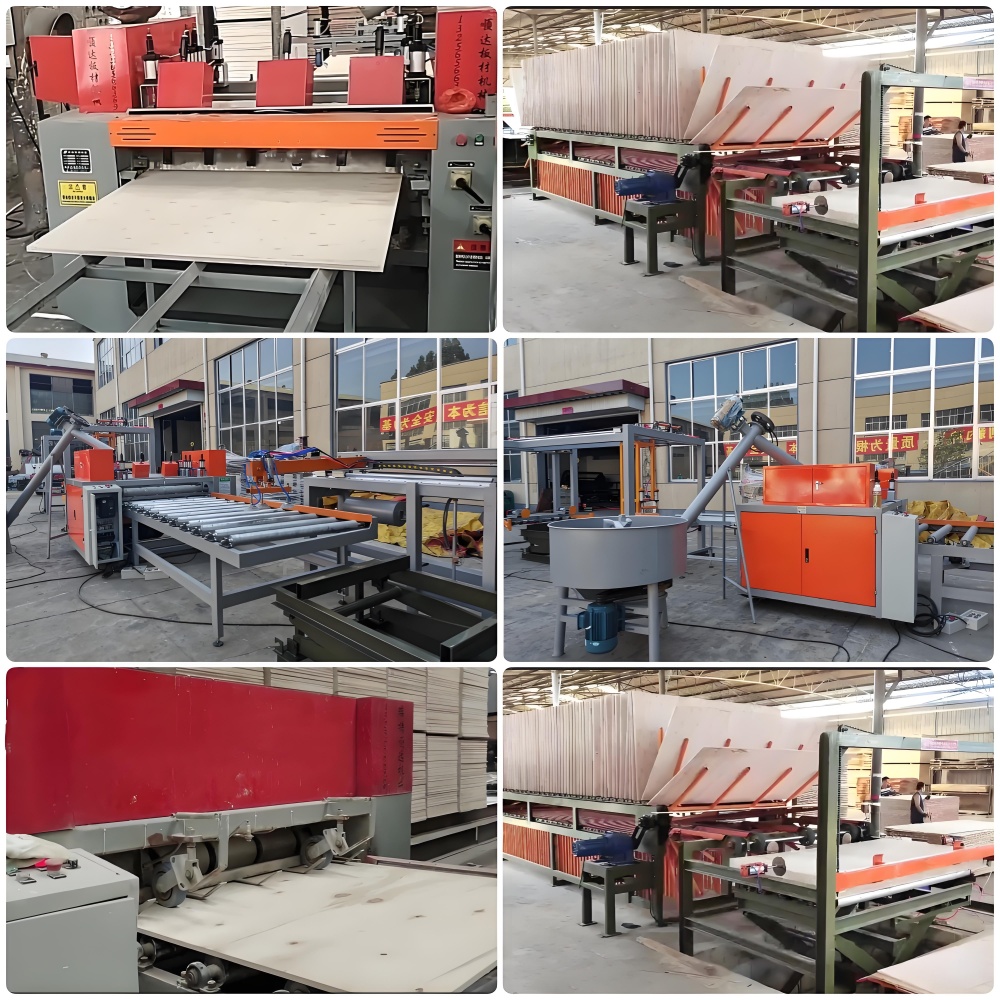

AUTOMATIC PLYWOOD PUTTY LINE
This automatic plywood putty - scraping line integrates feeding, processing, and stacking. It streamlines plywood surface treatment, ensuring efficient, consistent putty scraping.

INFRARED ALIGNMENT SYSTEM
The stacking unit features an infrared alignment system. As plywood reaches the stacker, infrared sensors detect and align sheets accurately. The lifting table adjusts height for stable stacking, ensuring neat, precise plywood stacking with the help of infrared - guided positioning.


Our automatic plywood putty line and automatic peeling line are exported to many countries like Malaysia,Indonesia, Russia, Turkey ,Brazil, Argentina, Paraguay and so on.

Spindle peeling machine
Veneer dryer
Veneer composer
Hot press
Glue spreader
Plywood trimming saw
Automatic putty line
Calibrating machine



Shandong kindle Machinery manufacture limited company located in Linyi national Economic and Technological Development Zone, it was founded in1998 which specialized in research and development of veneer peeling machine for 26 years. It have obtained more than 60 national patents , it covers more than 30000 area and have 15 R&D technician and 30 professional engineer for installation and machine maintaining.
![]()
We are committed to provide complete solutions for veneer peeling line, plywood making plant,LVL,block board, PB,OSB production Line etc. Main equipment include: Log cutting saw, log debarker , spindle peeling lathe and spindleless wood veneer peeling machine,veneer dryer, glue spreader,pre-press, hot press, veneer commposer,plywood saw, sanding machine, boiler, and related plant accessories and materials, etc.

![]()
